Razor® Manuals & Wiring Diagrams
Use this page to quickly find Razor® owner’s manuals and wiring diagrams by model and version. Browse by product family below or type a model name or version into the search box. Manuals and diagrams are grouped into Crazy Cart Series, E‑Series Scooters, MX Series, Pocket Series, Ride‑Ons, and Specialty models.
Razor product families
Click any + to expand a Razor family and find your model.
Owner’s Manuals
Wiring Diagrams

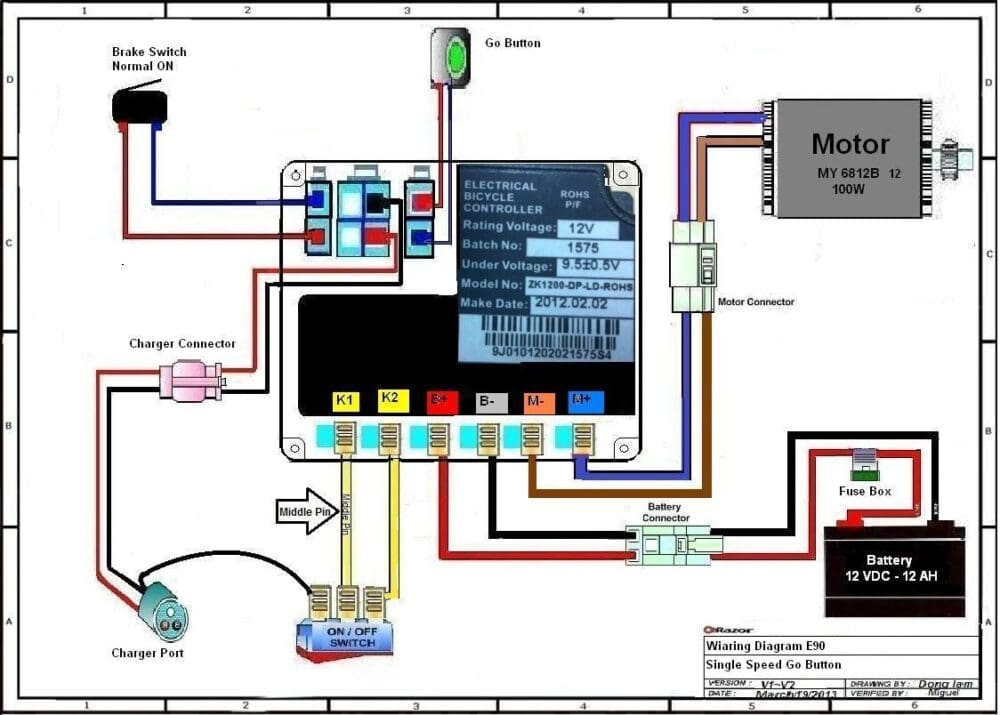

- E90 Wiring Diagram (Versions 1–2)

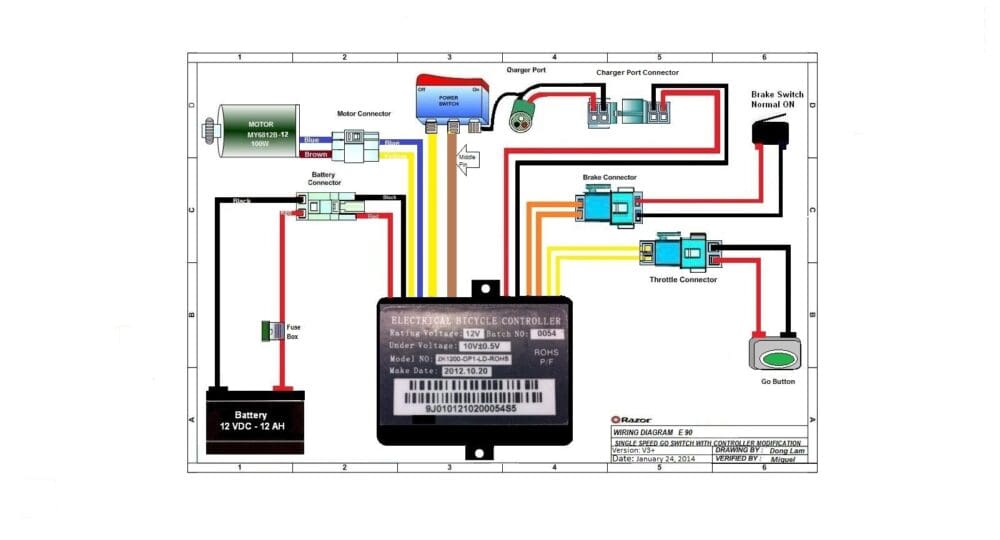

- E90 Wiring Diagram (Version 3 and up)

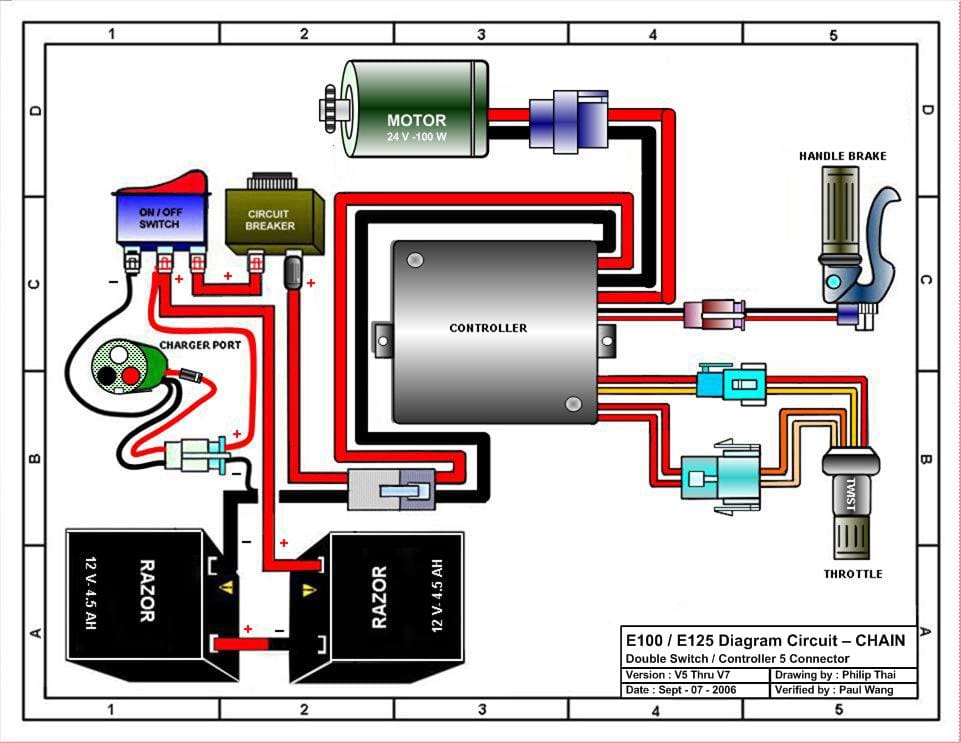

- E100 / E125 Wiring Diagram (Versions 5–7)

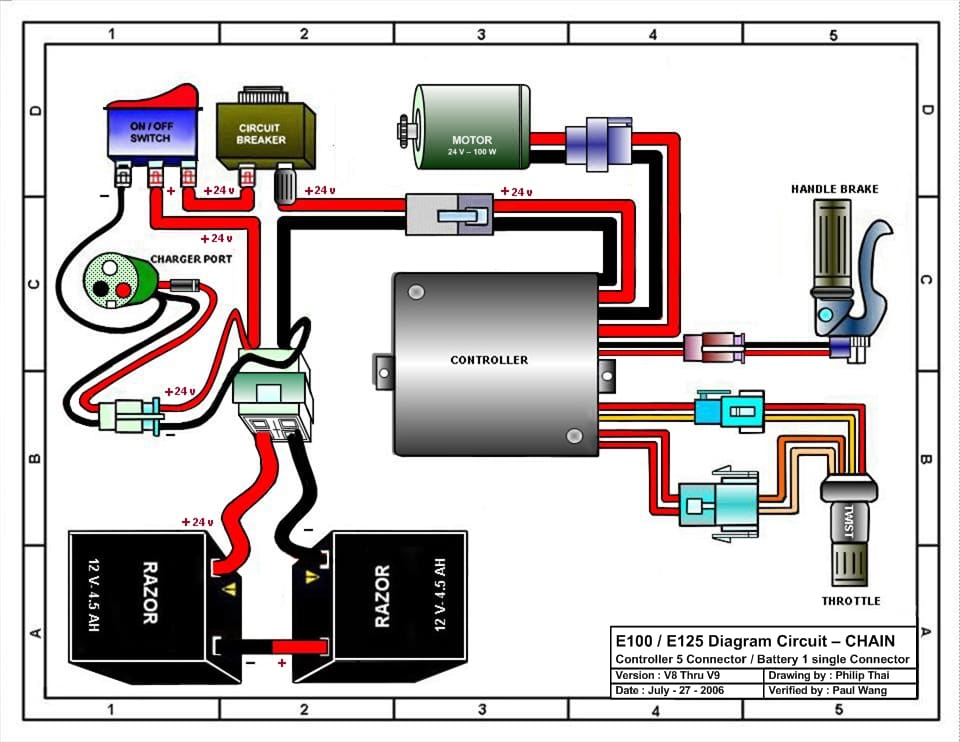

- E100 / E125 Wiring Diagram (Versions 8–9)

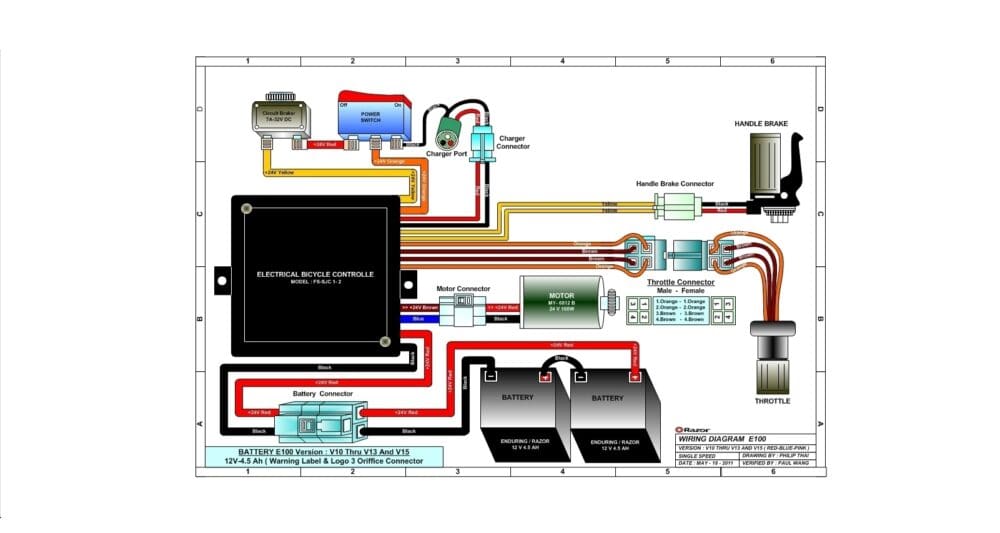

- E100 Wiring Diagram (Versions 10, 13, 15)

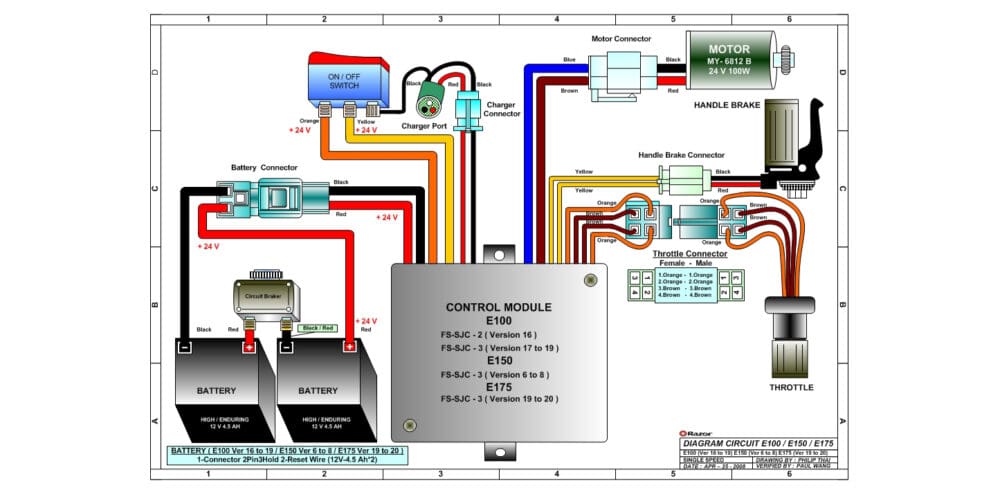

- E100 Wiring Diagram (Versions 16–19)
- E100 Wiring Diagram (Versions 17–21)

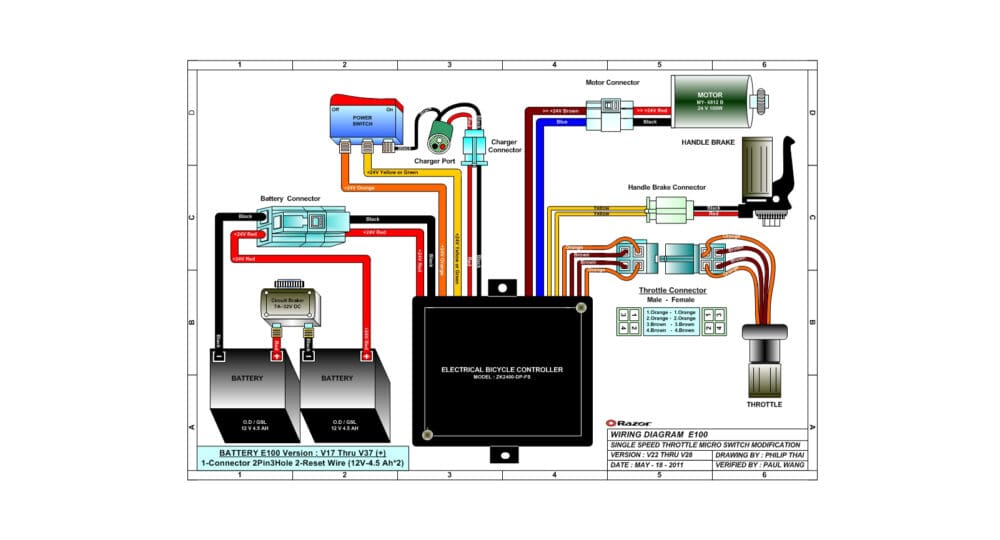

- E100 Wiring Diagram (Versions 22, 25, 27, 28)
- E100 Wiring Diagram (Versions 29–36)
- E100 Wiring Diagram (Version 37 and up)

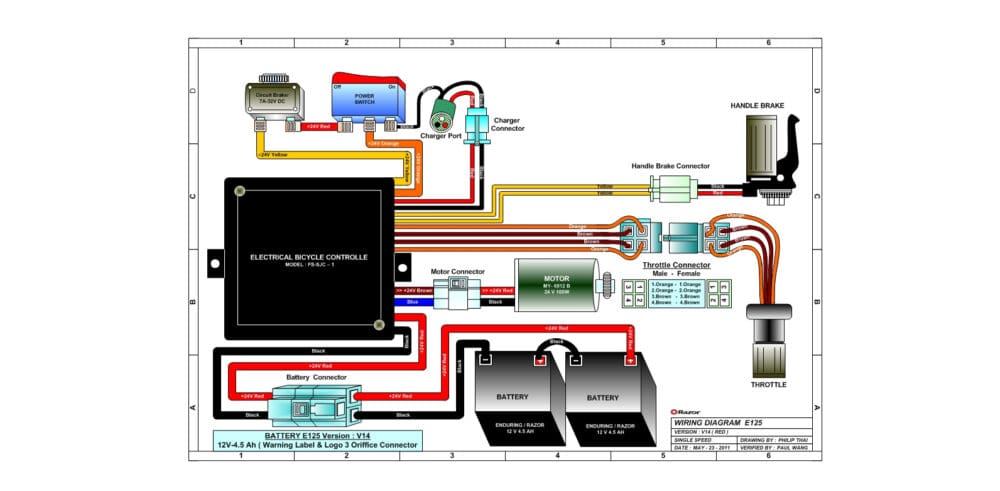

- E125 Wiring Diagram (Version 14)

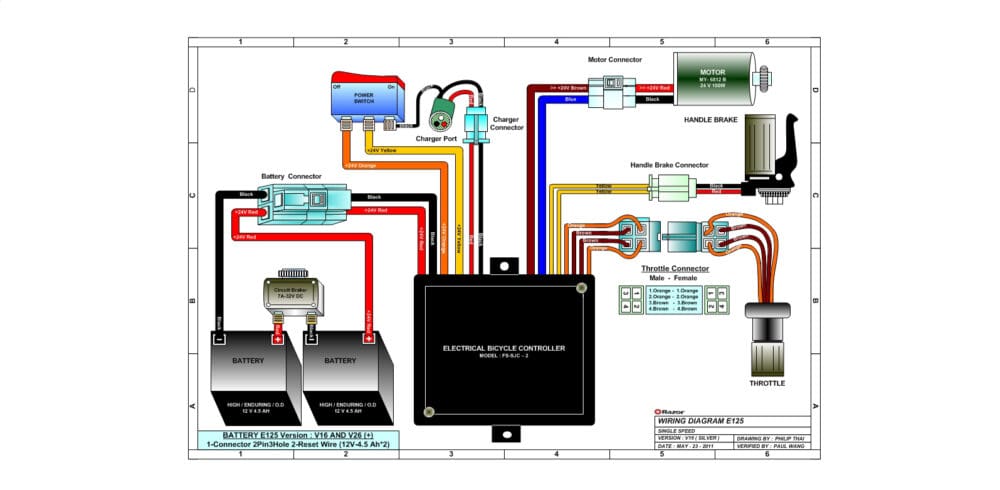

- E125 Wiring Diagram (Version 16)

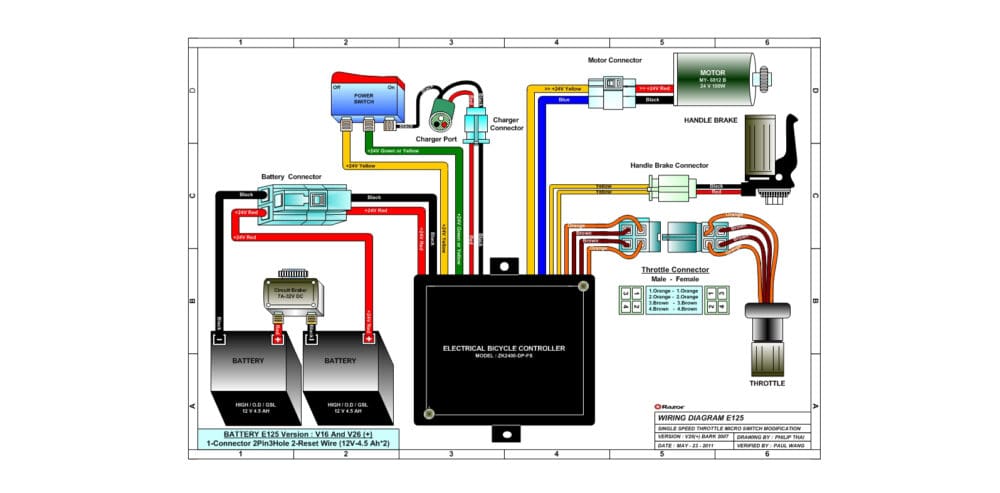

- E125 Wiring Diagram (Version 26 and up)
- E150 Wiring Diagram (Versions 1–5)

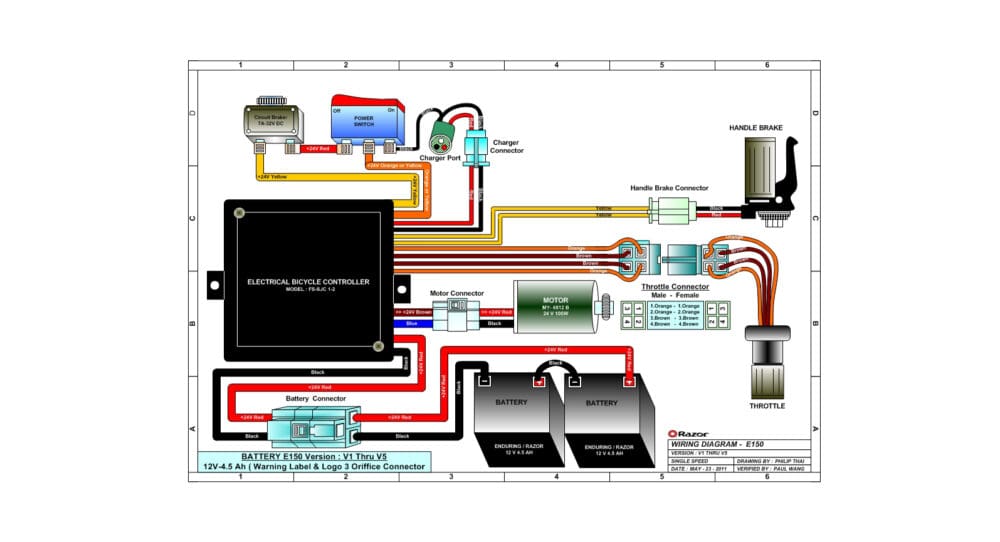

- E150 Wiring Diagram (Versions 6–10)

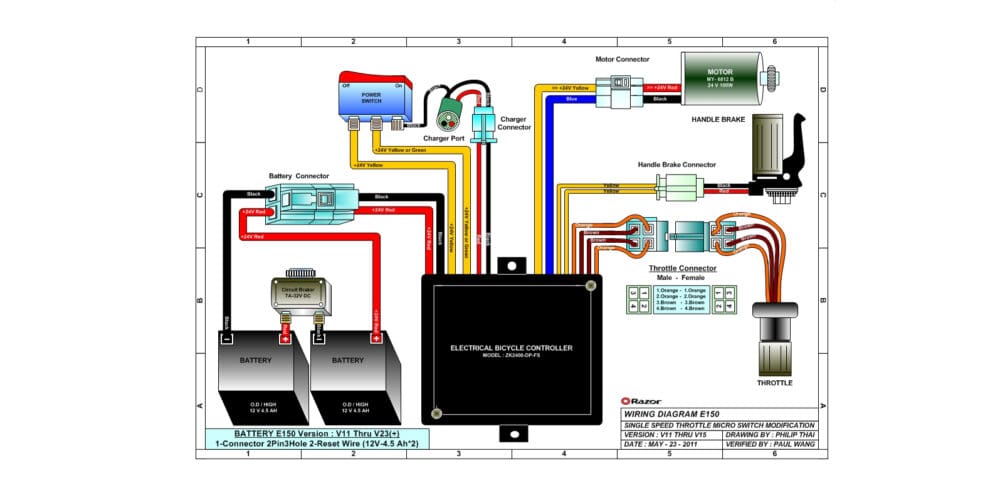

- E150 Wiring Diagram (Versions 11–15)

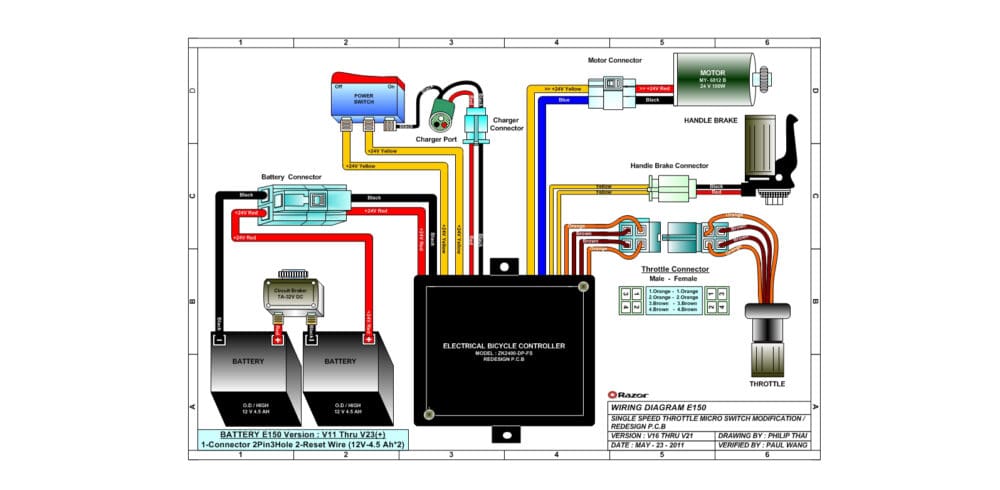

- E150 Wiring Diagram (Versions 16–21)
- E150 Wiring Diagram (Version 23 and up)

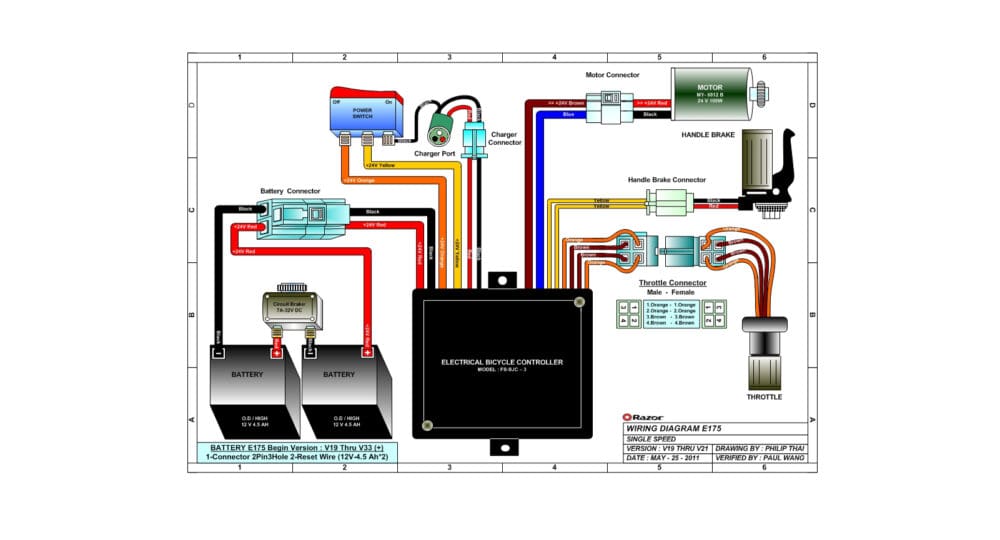

- E175 Wiring Diagram (Versions 19–21)
- E175 Wiring Diagram (Version 27 and up)

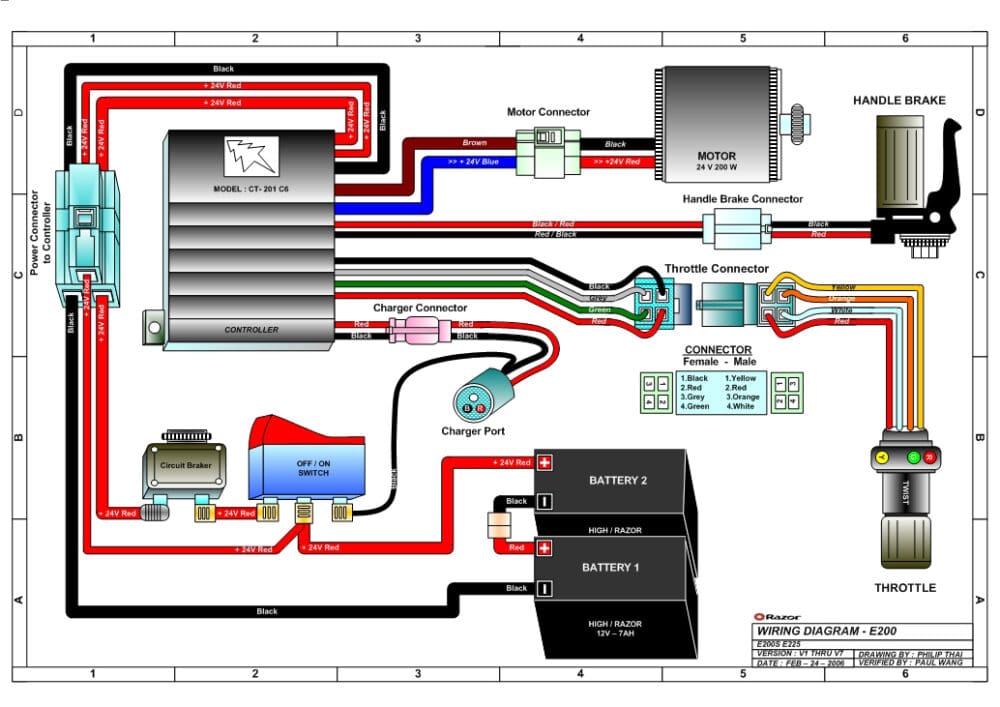

- E200 Wiring Diagram (Versions 1–7)

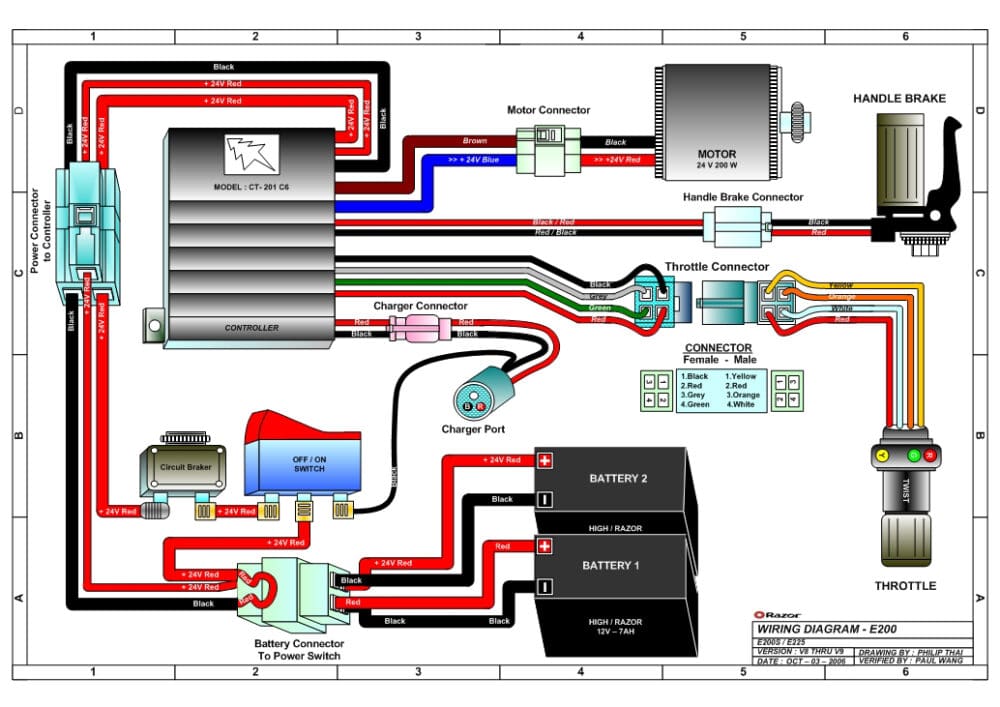

- E200 Wiring Diagram (Versions 8–9)
- E200 Wiring Diagram (Versions 10–12)

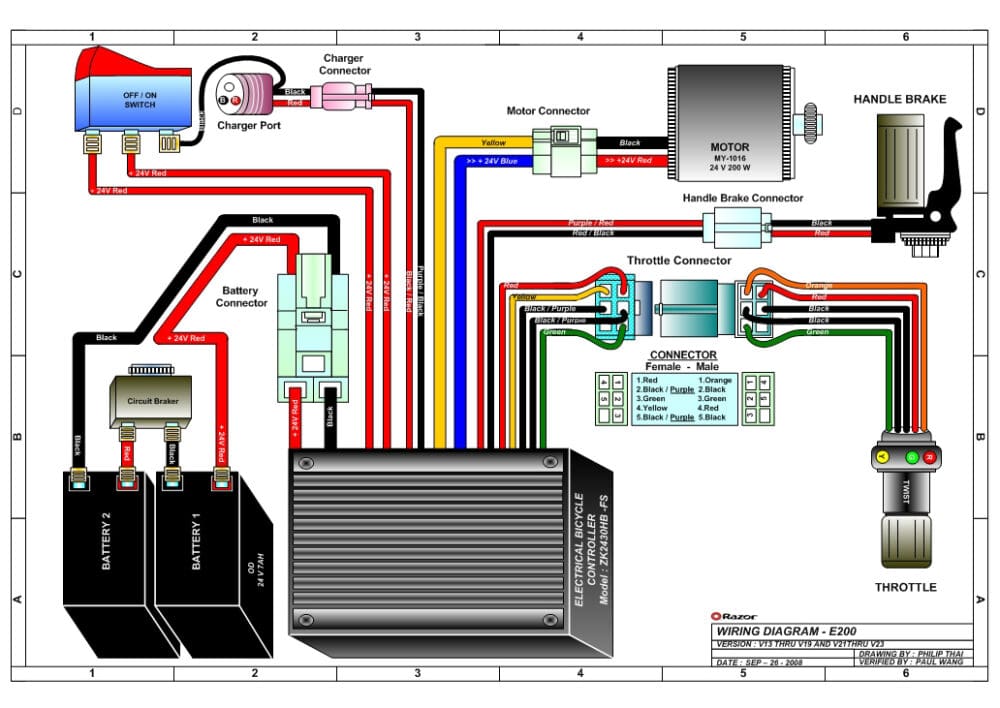

- E200 Wiring Diagram (Versions 13–19, 21, 23)

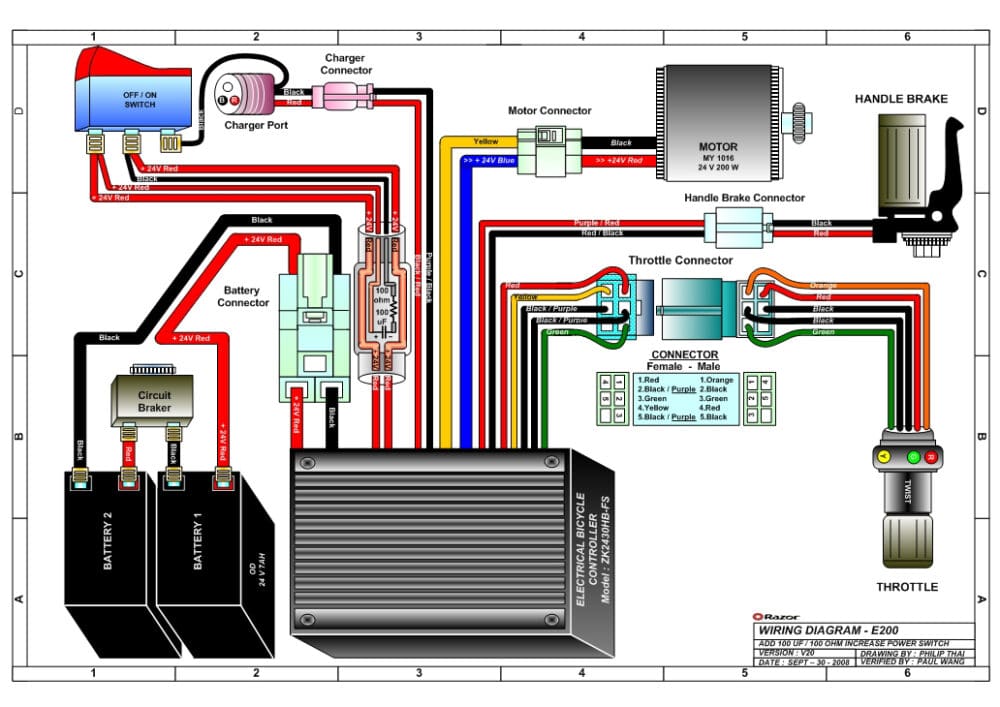

- E200 Wiring Diagram (Version 20)

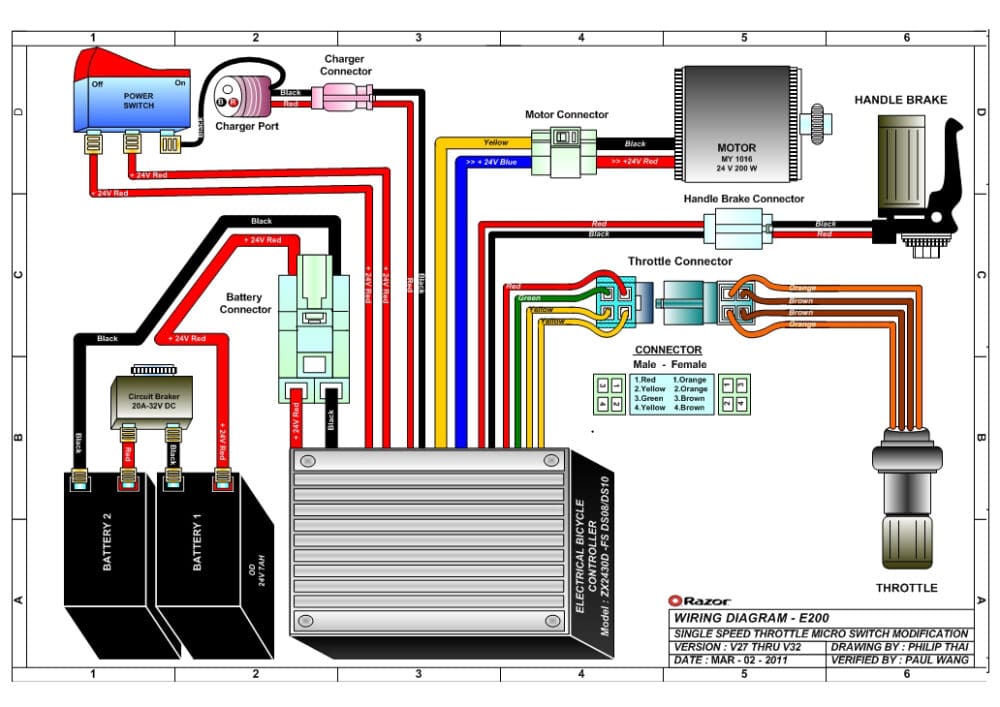

- E200 Wiring Diagram (Versions 24–26)
- E200 Wiring Diagram (Versions 27–32)

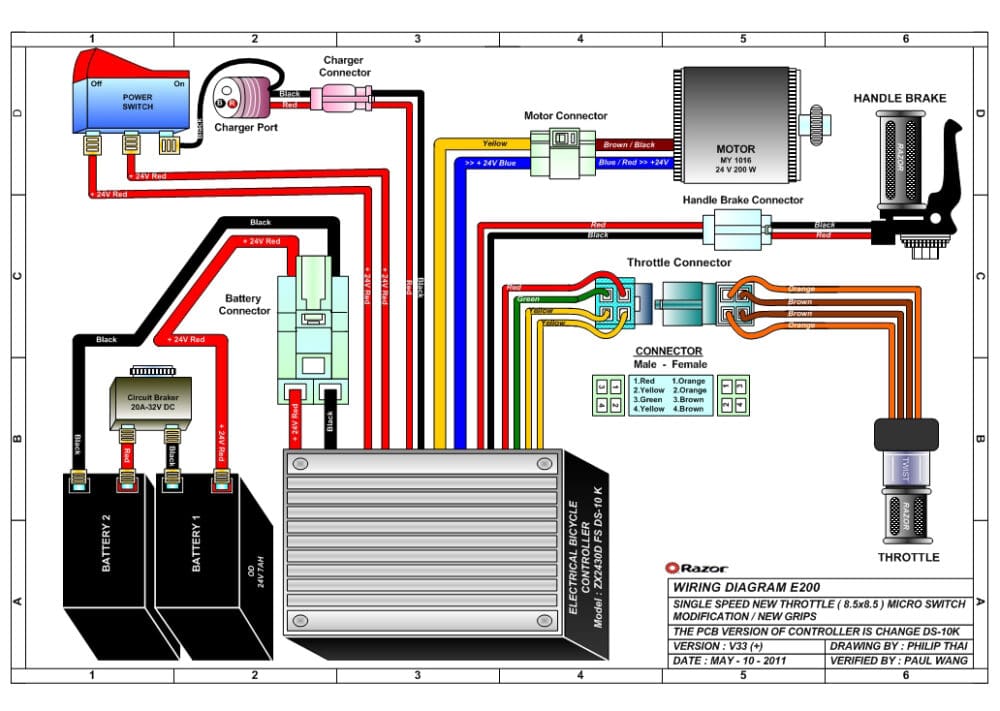

- E200 Wiring Diagram (Version 33 and up)
- E300 Wiring Diagram (Versions 1–4)
- E300 Wiring Diagram (Versions 5–7)

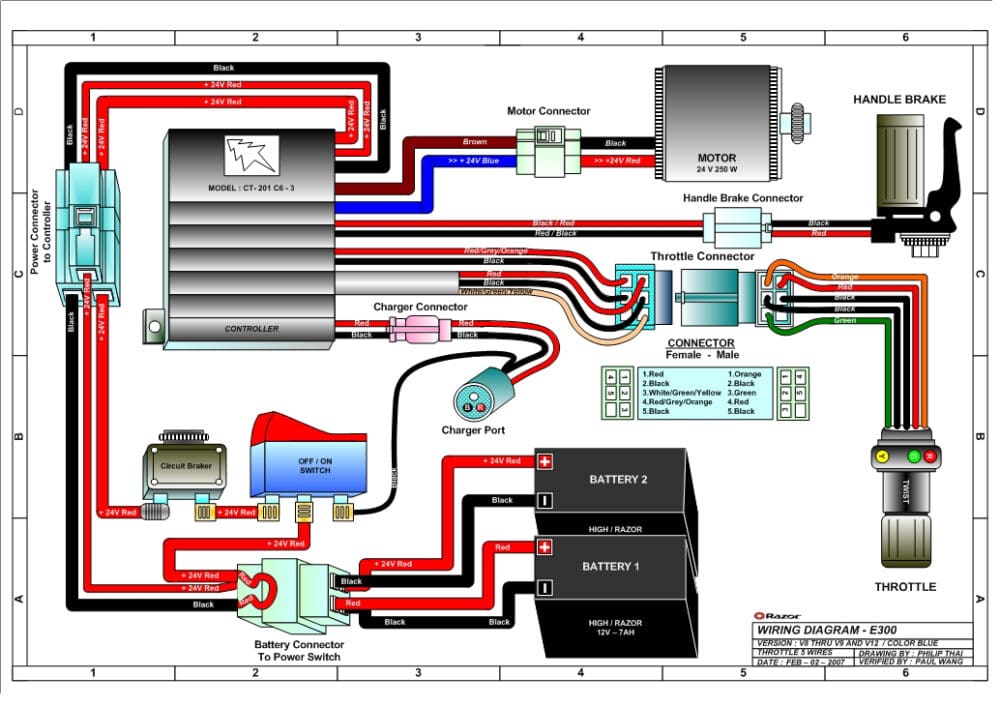

- E300 Wiring Diagram (Versions 8–9, 12)

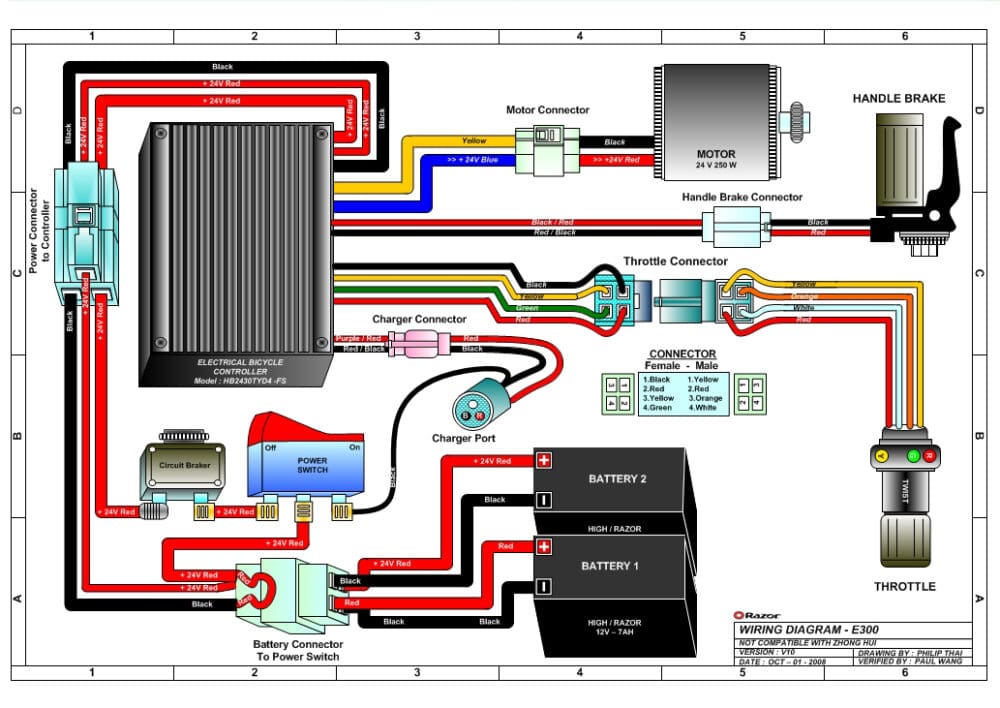

- E300 Wiring Diagram (Version 10)

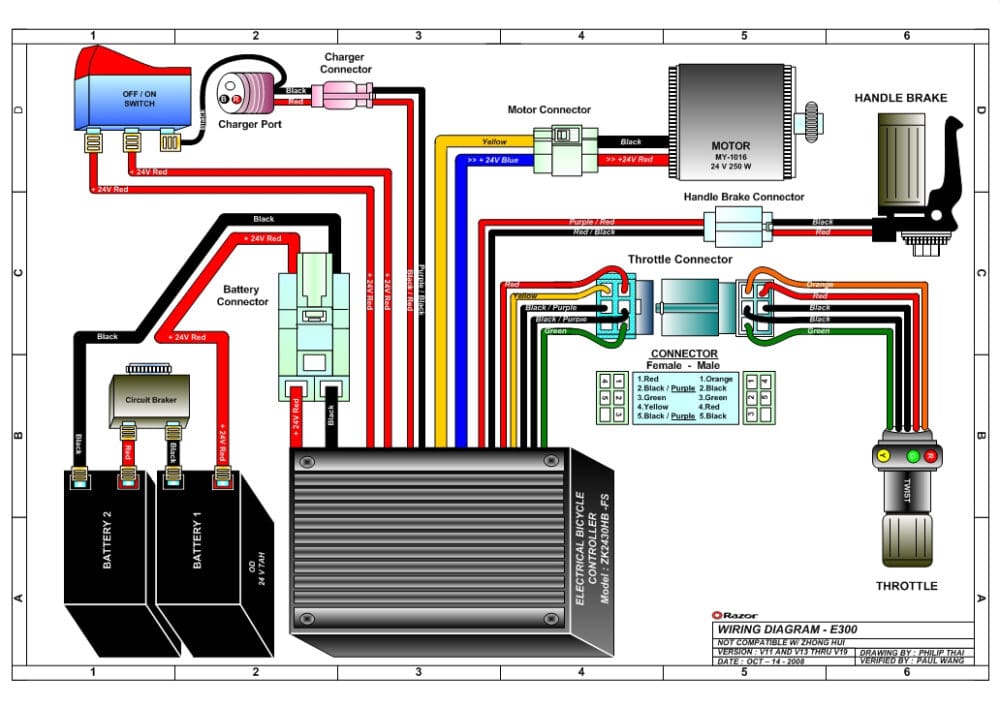

- E300 Wiring Diagram (Versions 11–13, 19)
- E300 Wiring Diagram (Versions 20–28)

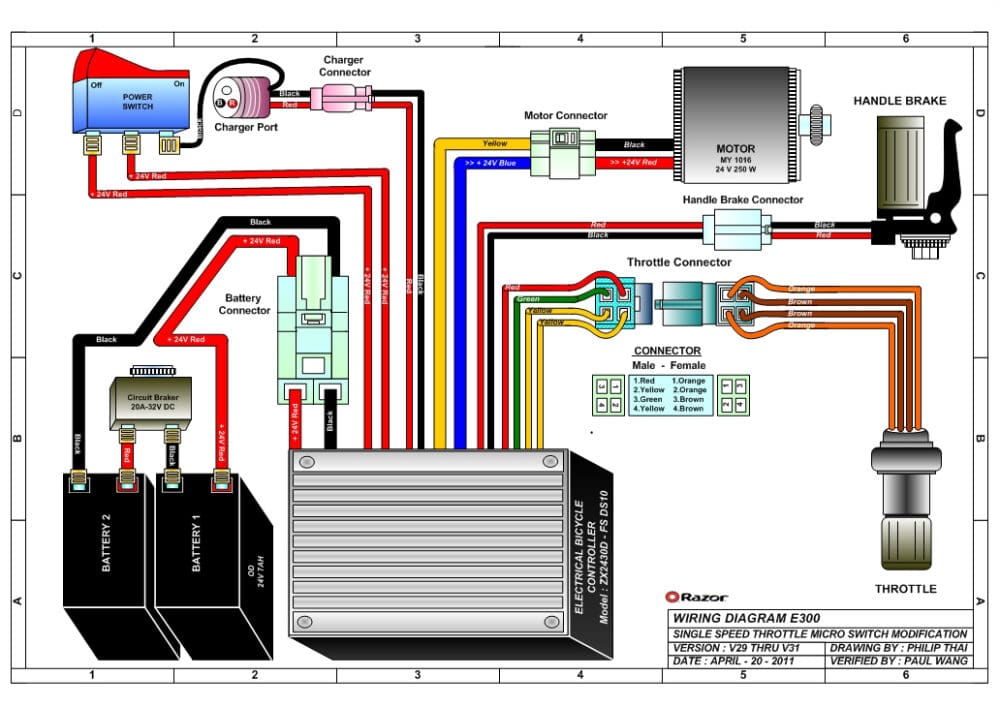

- E300 Wiring Diagram (Versions 29–31)
- E300 Wiring Diagram (Version 32 and up)
- E500 Wiring Diagram

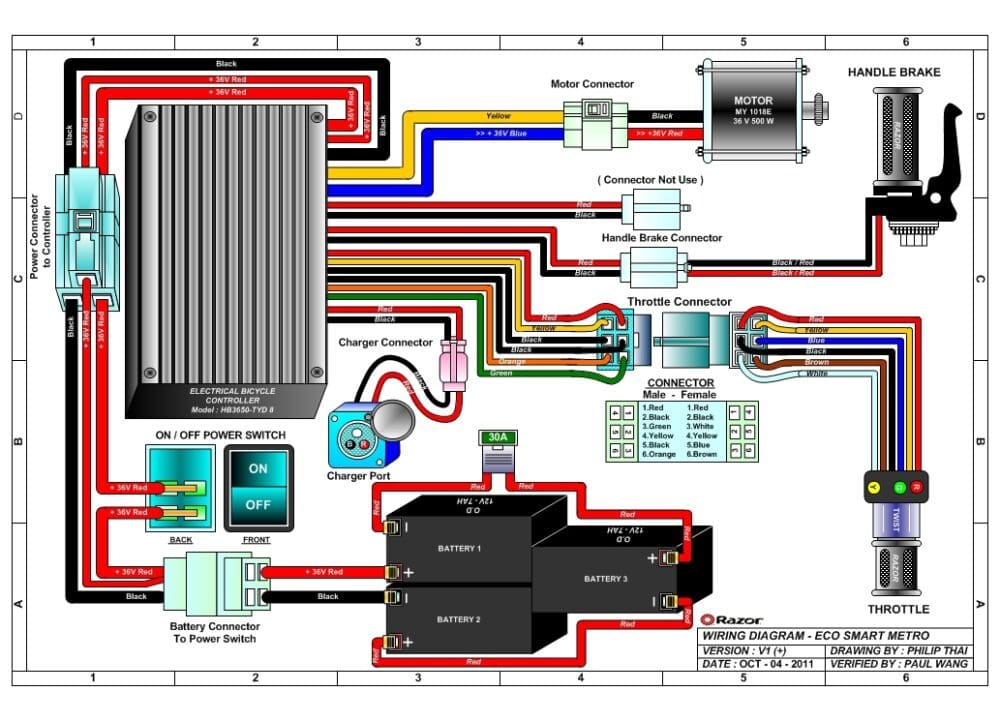

- EcoSmart Metro Wiring Diagram
Owner’s Manuals
Wiring Diagrams

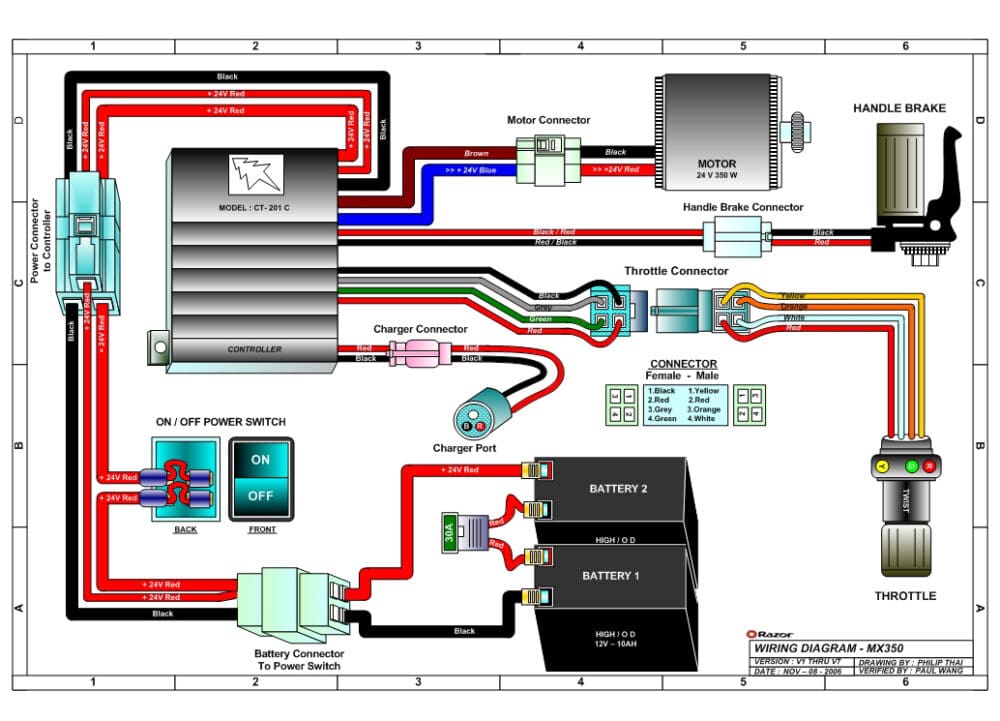

- MX350 Wiring Diagram (Versions 1–7)

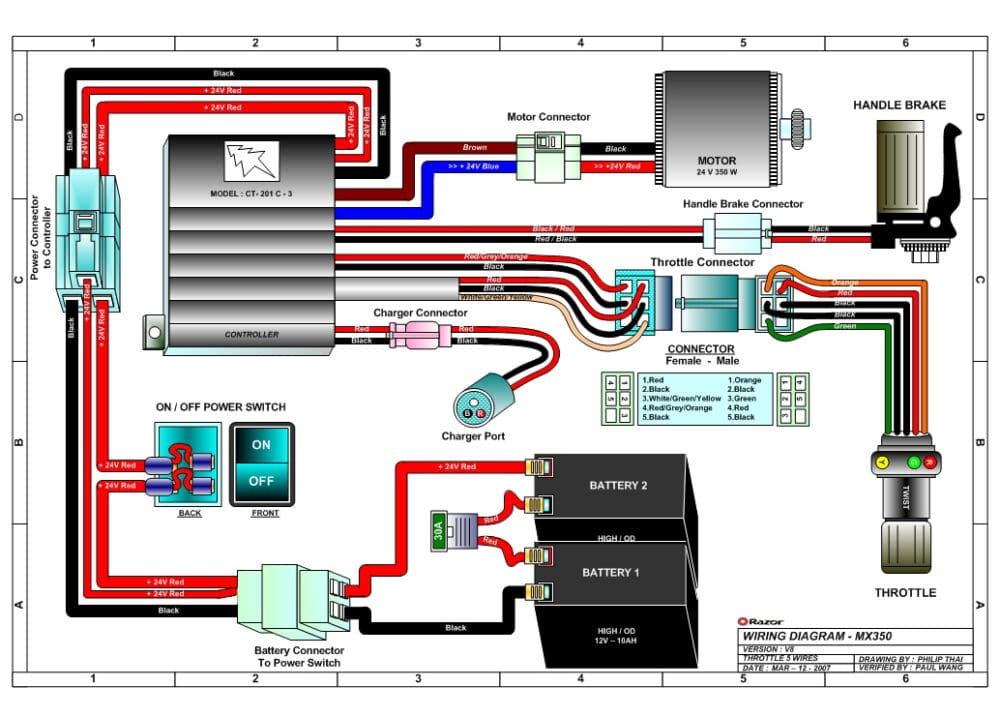

- MX350 Wiring Diagram (Version 8)

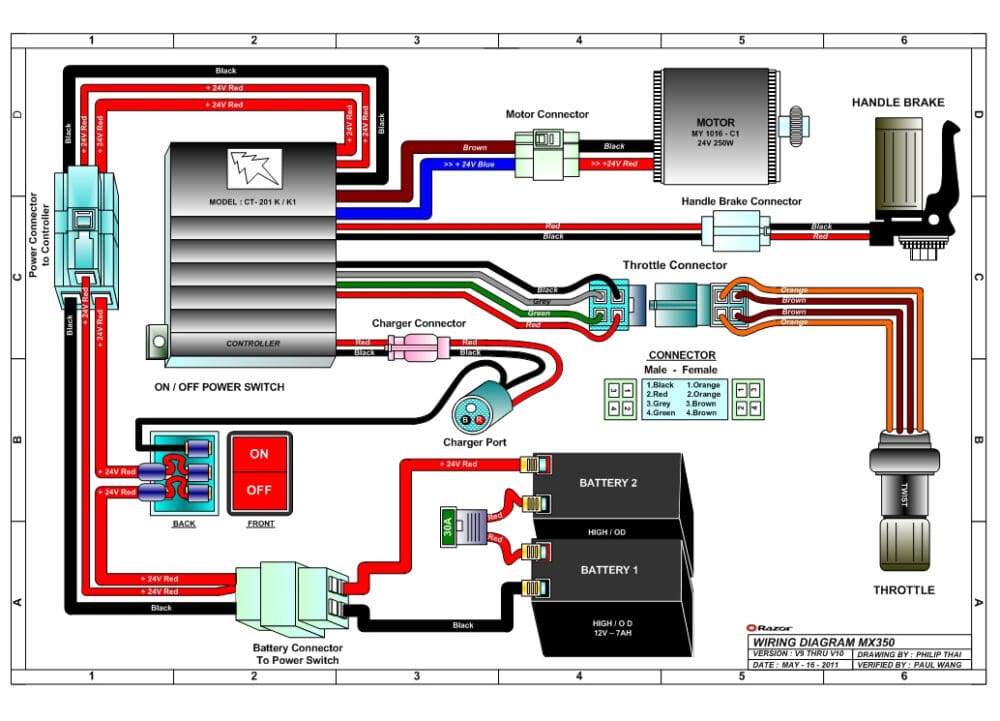

- MX350 Wiring Diagram (Versions 9–10)

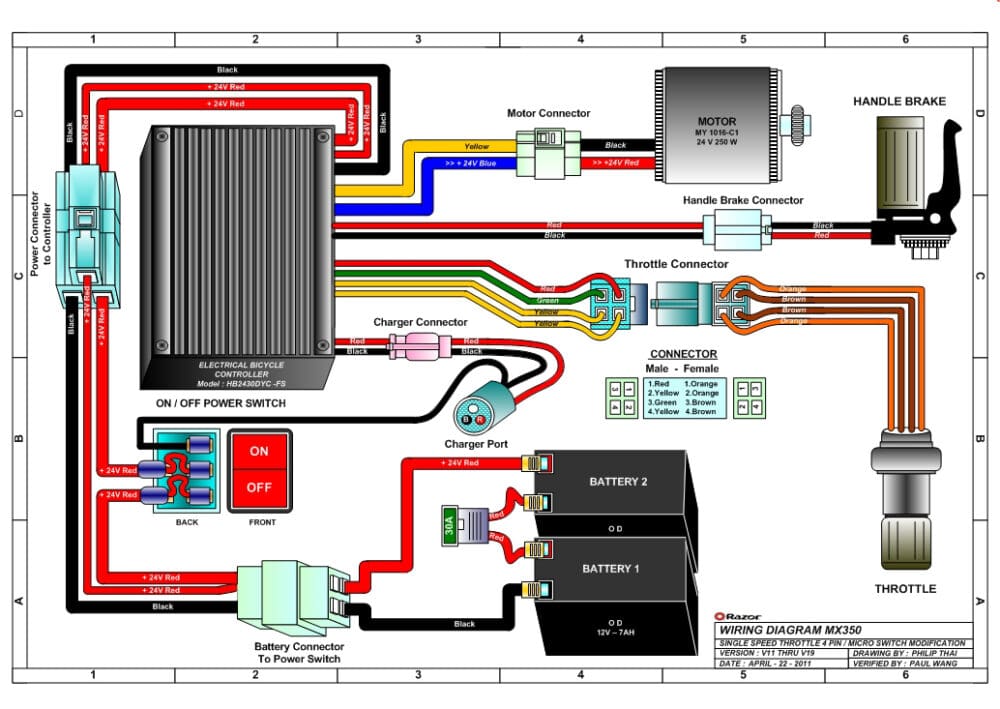

- MX350 Wiring Diagram (Versions 11–19)
- MX350 Wiring Diagram (Versions 20–25)
- MX350 Wiring Diagram (Version 33 and up)
- MX400 Wiring Diagram (Versions 16–18)

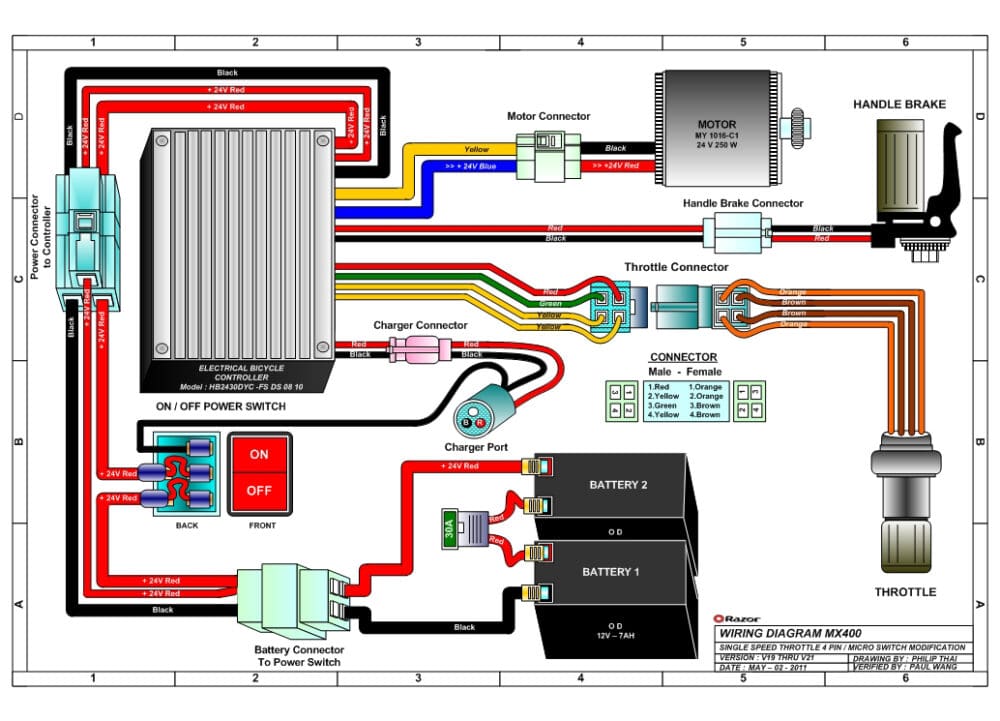

- MX400 Wiring Diagram (Versions 19–21)
- MX400 Wiring Diagram (Version 22 and up)
- MX500 Wiring Diagram (Versions 1–9)
- MX500 Wiring Diagram (Versions 10–12)

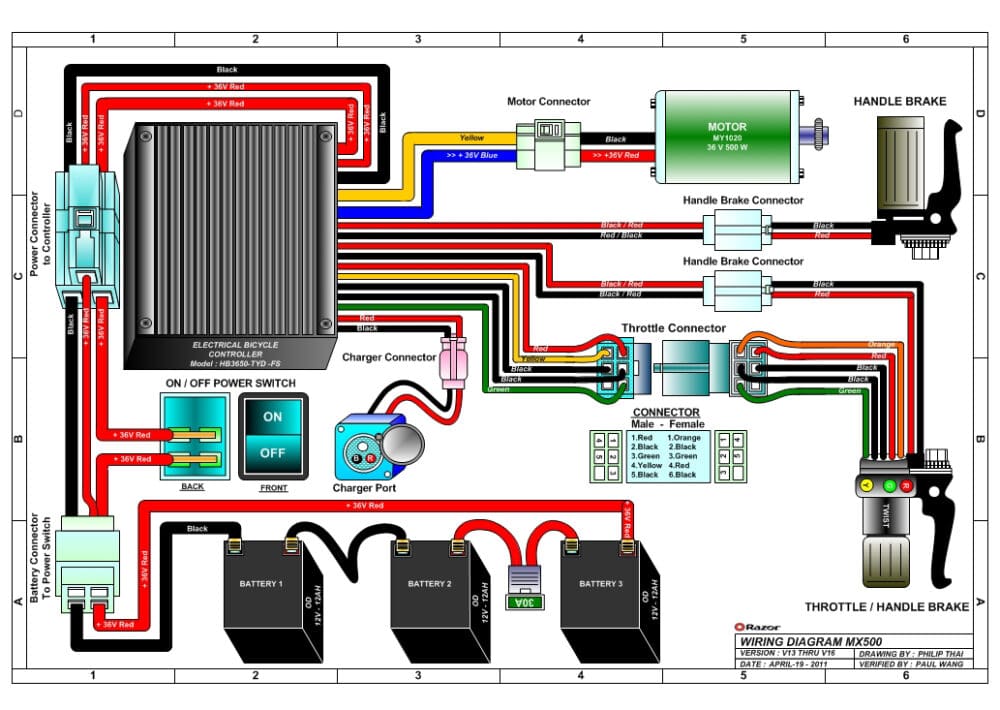

- MX500 Wiring Diagram (Versions 13–16)
- MX500 Wiring Diagram (Versions 17–20)

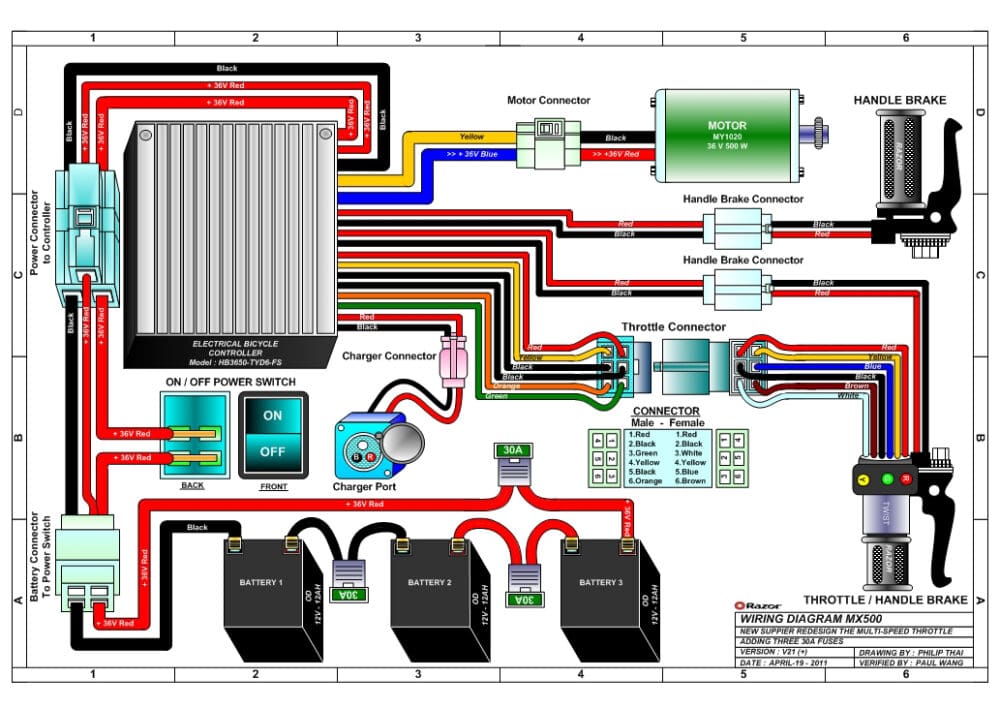

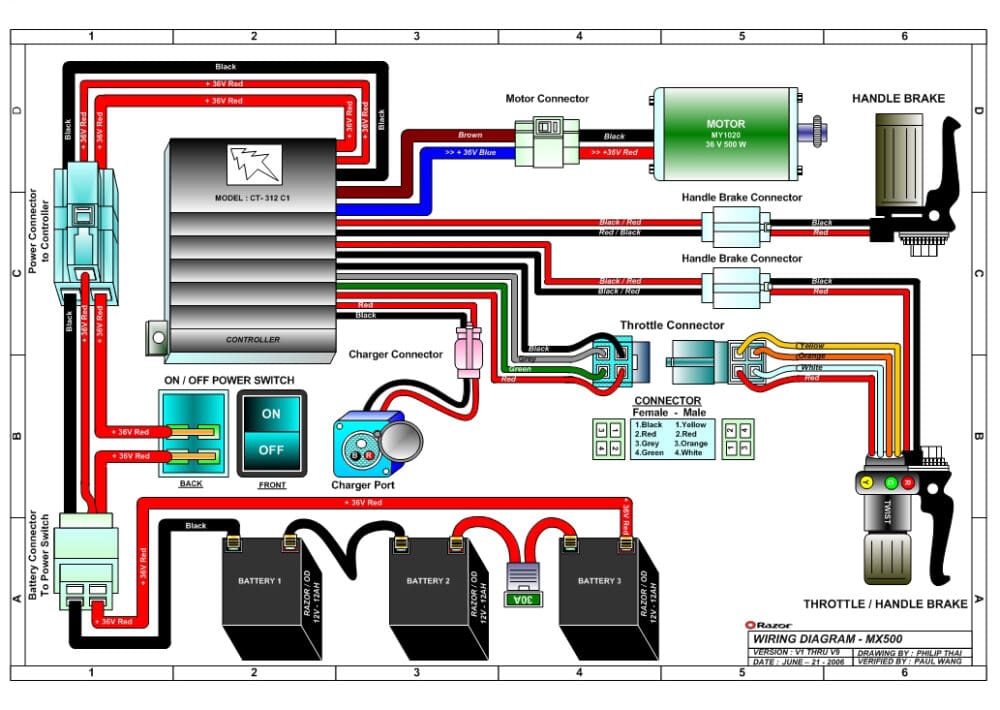

- MX500 Wiring Diagram (Version 21 and up)
- MX650 Wiring Diagram (Versions 1–7)

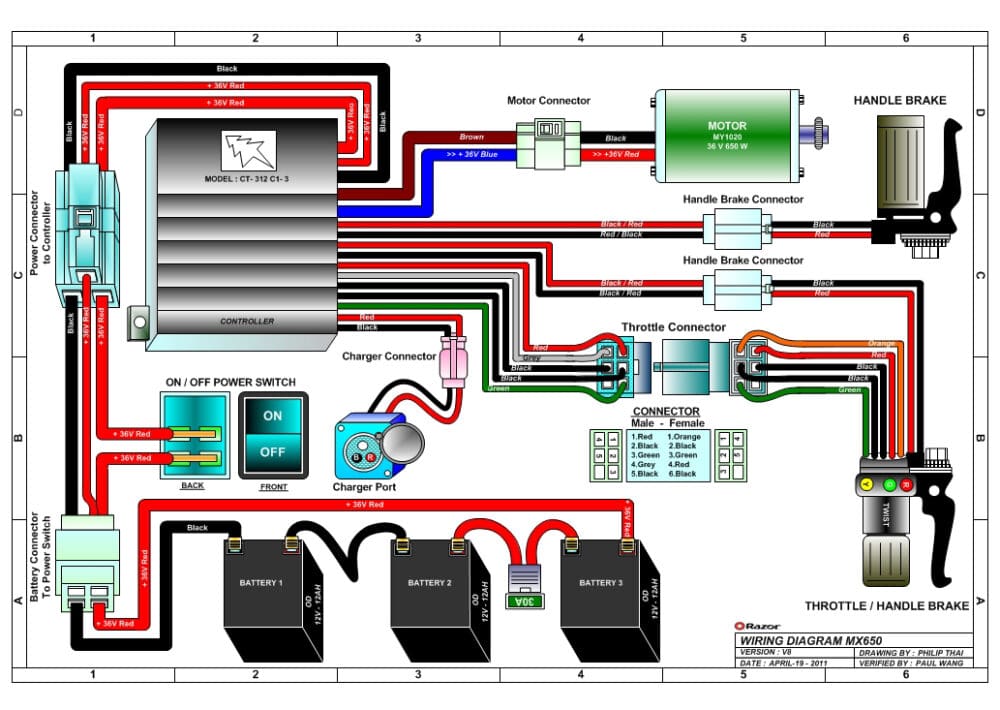

- MX650 Wiring Diagram (Version 8)
- MX650 Wiring Diagram (Versions 9–11)

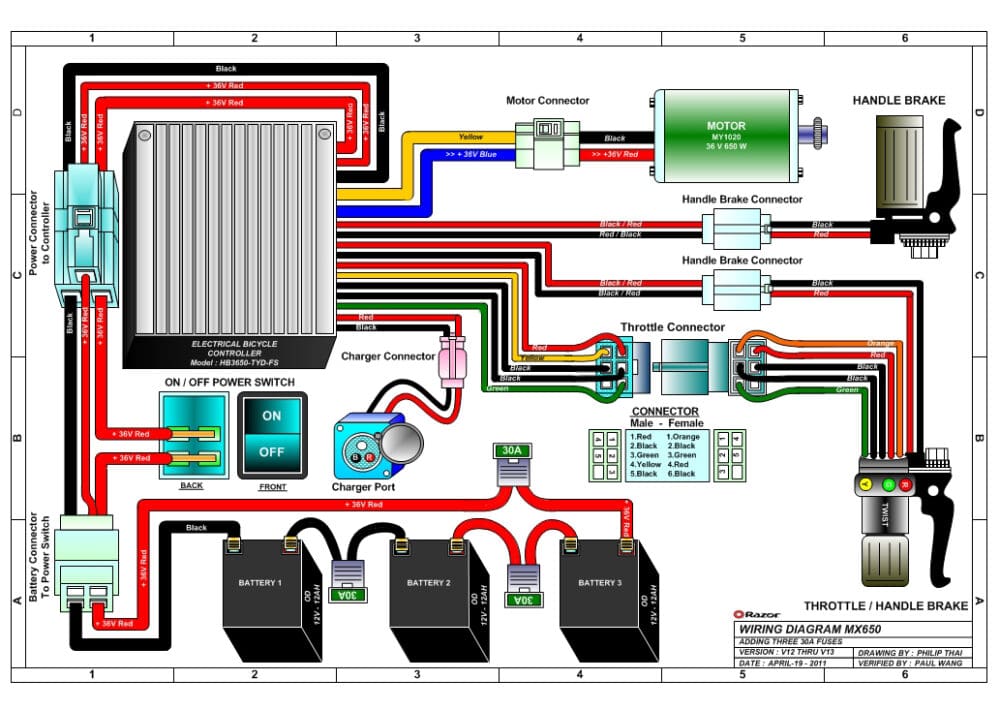

- MX650 Wiring Diagram (Versions 12–13)
- MX650 Wiring Diagram (Version 14 and up)
Owner’s Manuals
Wiring Diagrams

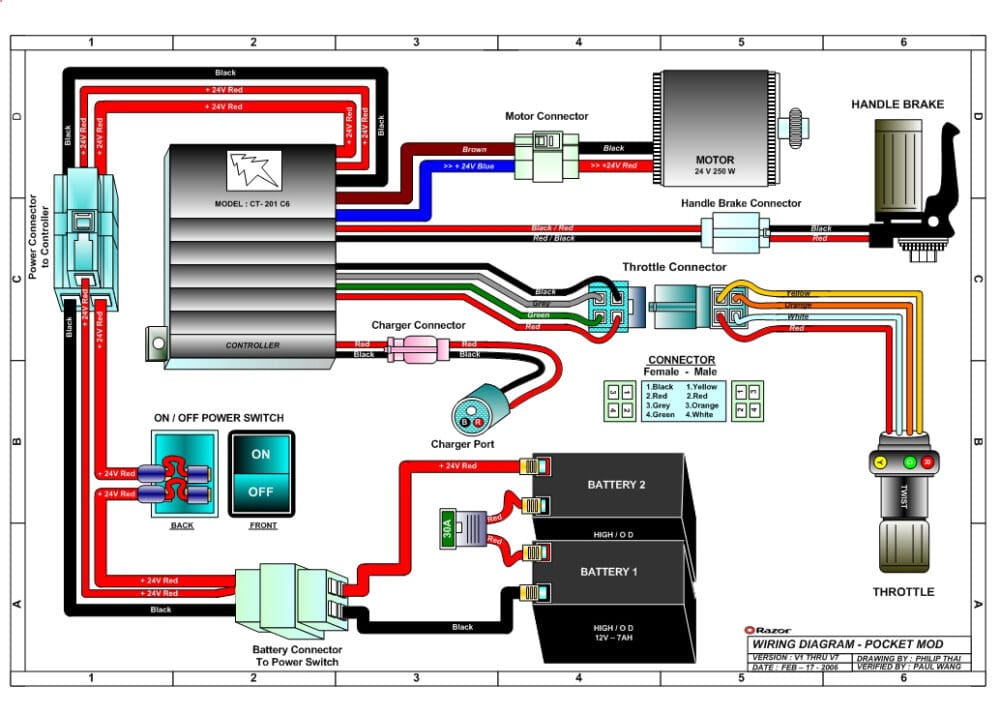

- Pocket Mod Wiring Diagram (Versions 1–7)
- Pocket Mod Wiring Diagram (Versions 8–12)

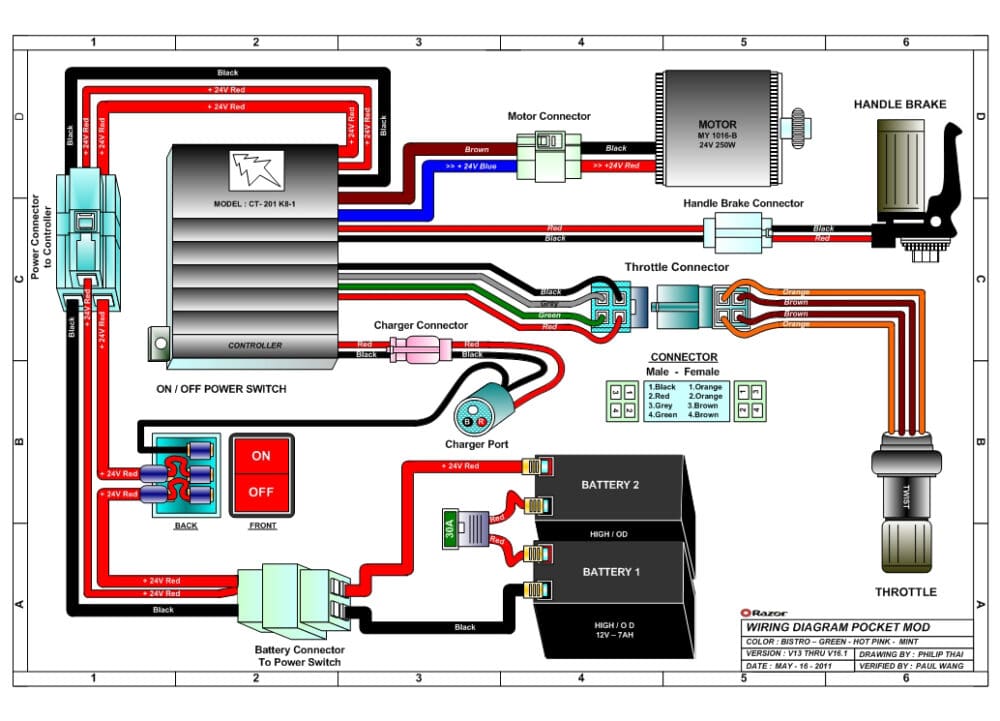

- Pocket Mod Wiring Diagram (Versions 13–16)
- Pocket Mod Wiring Diagram (Versions 21–35)

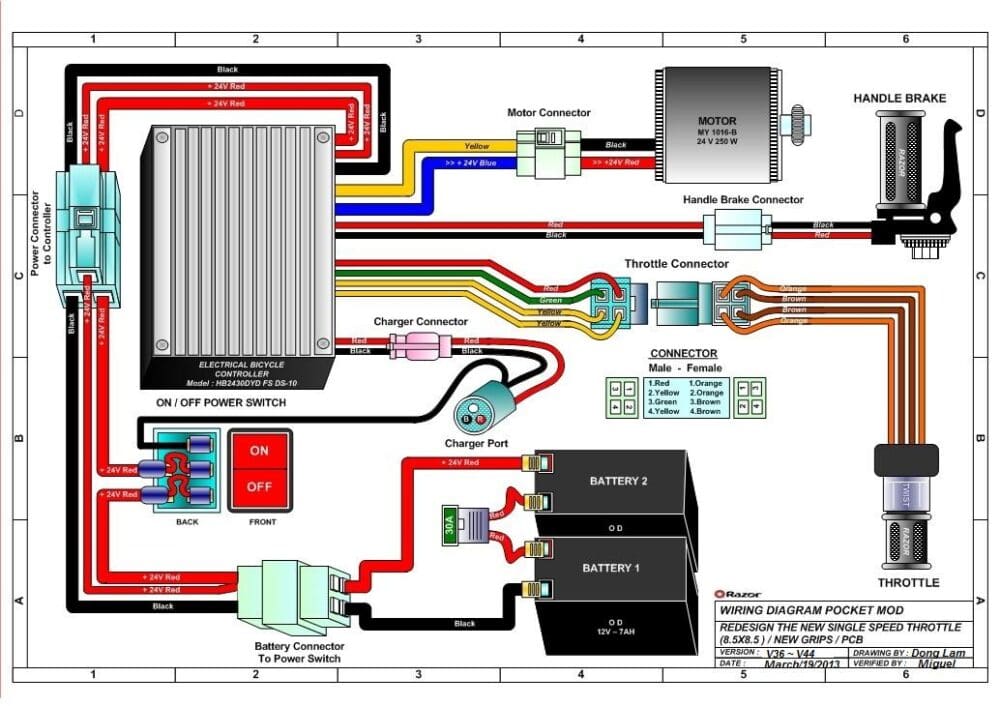

- Pocket Mod Wiring Diagram (Versions 36–44)
- Pocket Mod Wiring Diagram (Version 45 and up)

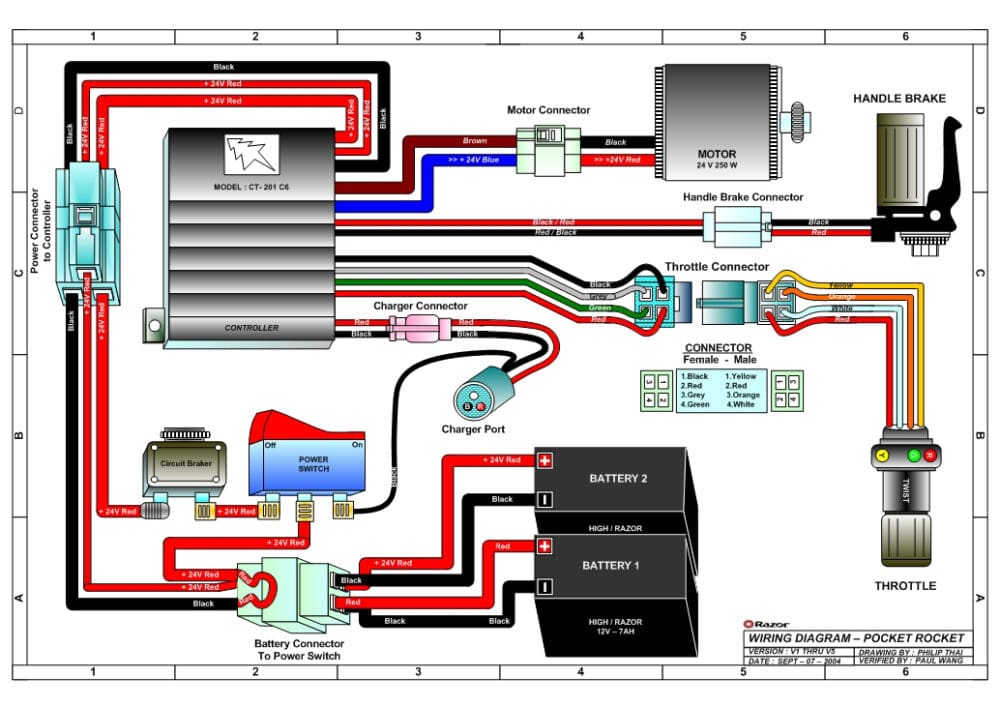

- Pocket Rocket Wiring Diagram (Versions 1–5)
- Pocket Rocket Wiring Diagram (Version 6)

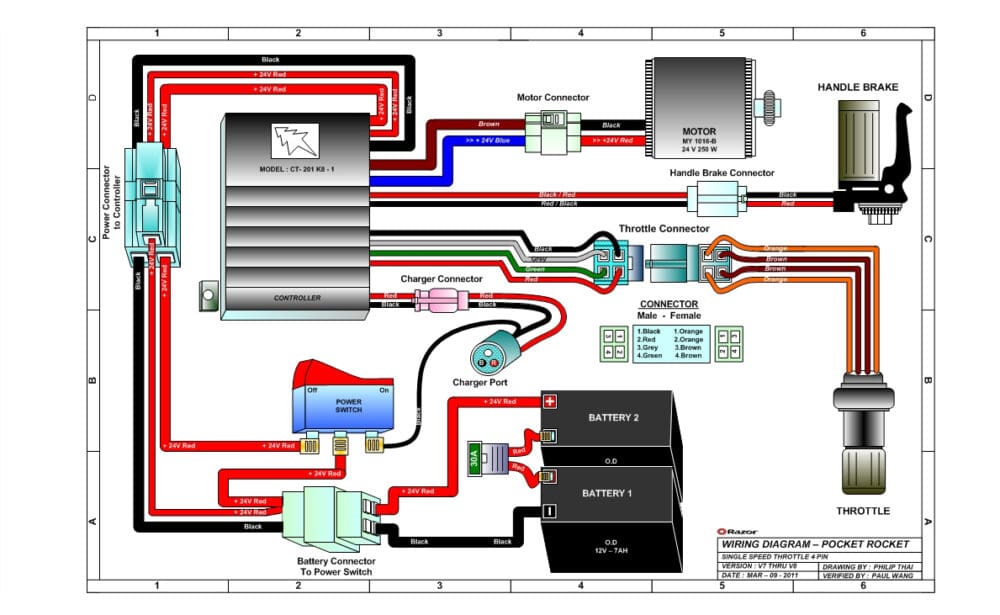

- Pocket Rocket Wiring Diagram (Versions 7–8)

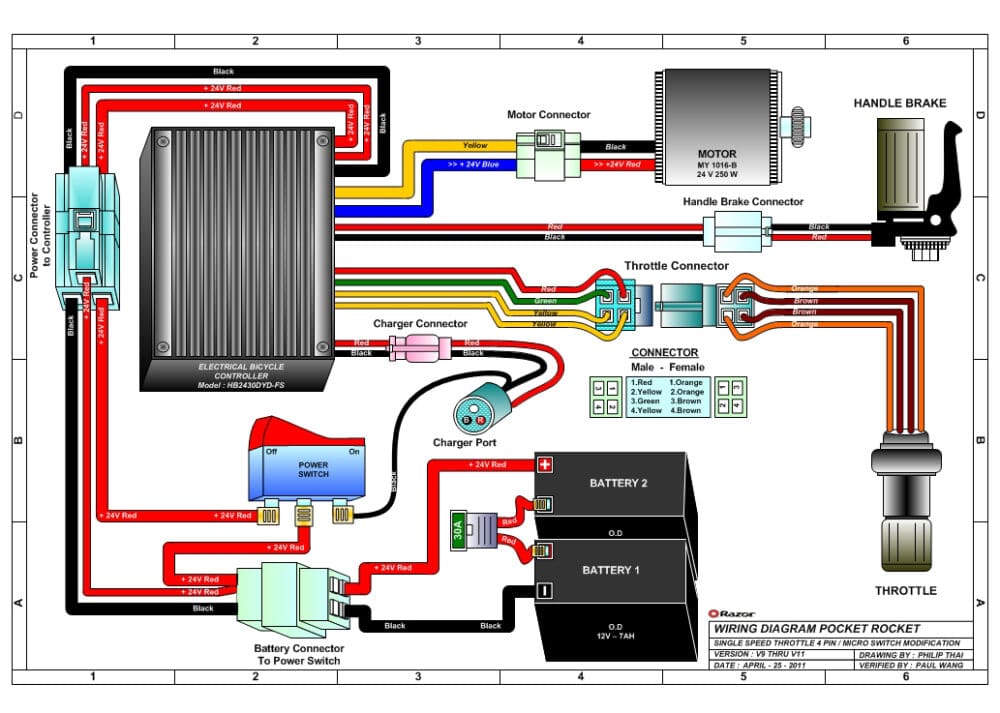

- Pocket Rocket Wiring Diagram (Versions 9–11)

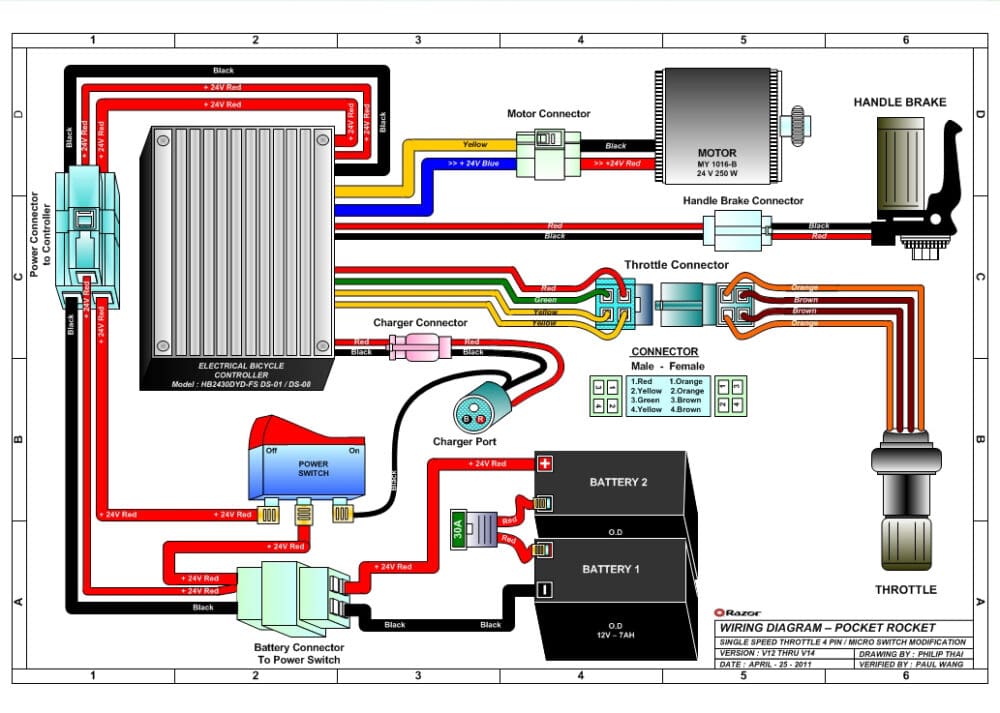

- Pocket Rocket Wiring Diagram (Versions 12–14)

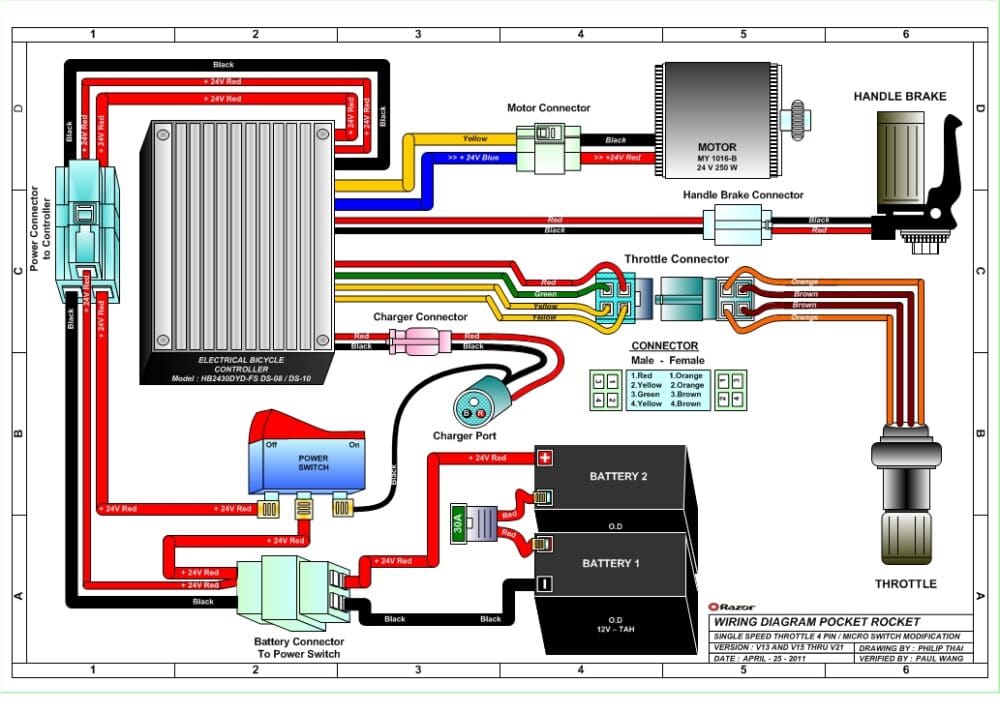

- Pocket Rocket Wiring Diagram (Versions 13–15, 21)

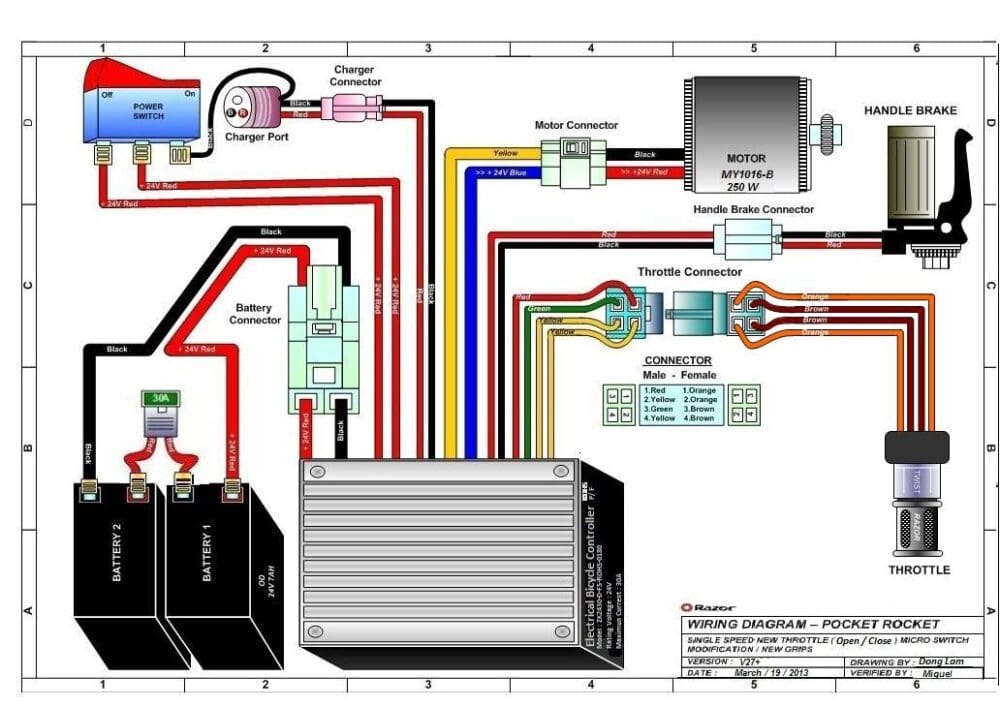

- Pocket Rocket Wiring Diagram (Version 27 and up)

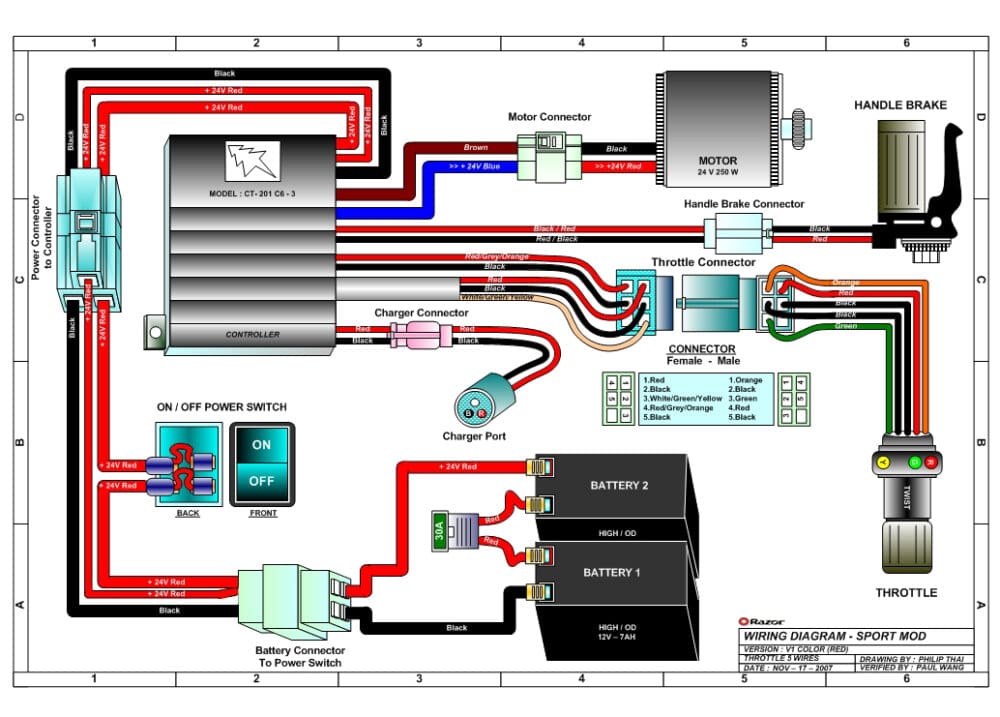

- Sport Mod Wiring Diagram (Version 1)

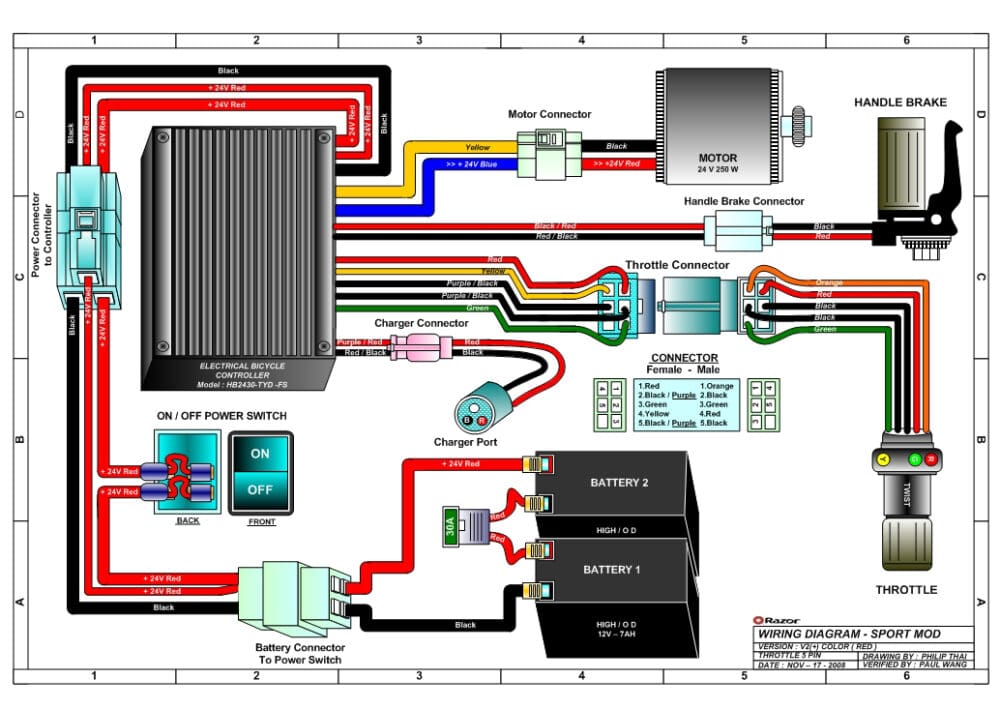

- Sport Mod Wiring Diagram (Version 2 and up)
- iMod Wiring Diagram
Owner’s Manuals
Wiring Diagrams

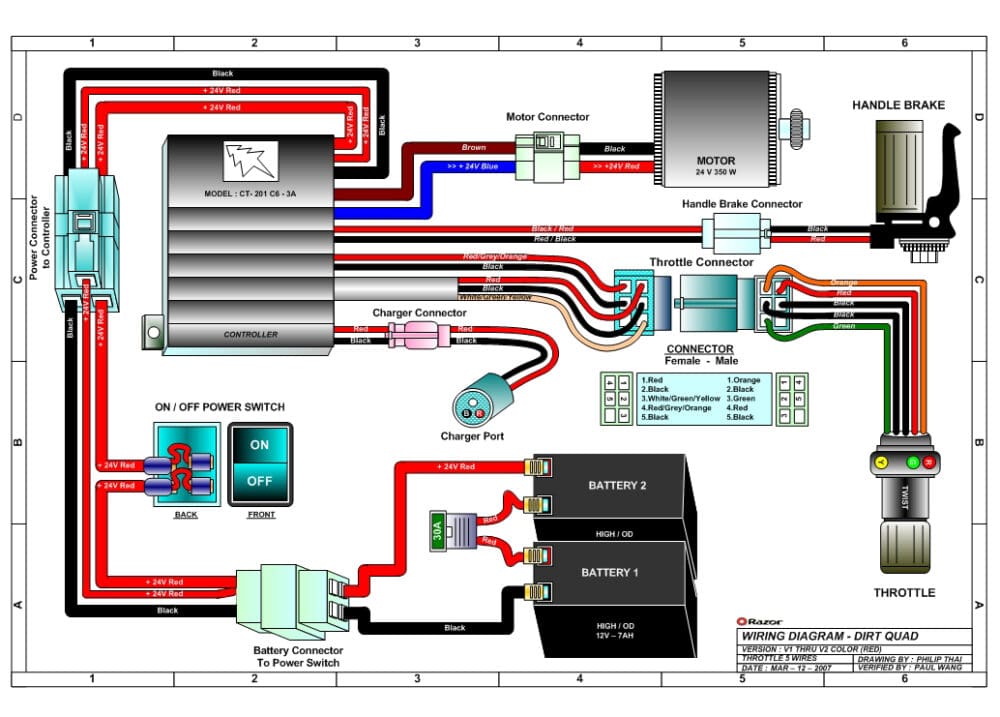

- Dirt Quad Wiring Diagram (Versions 1–2)

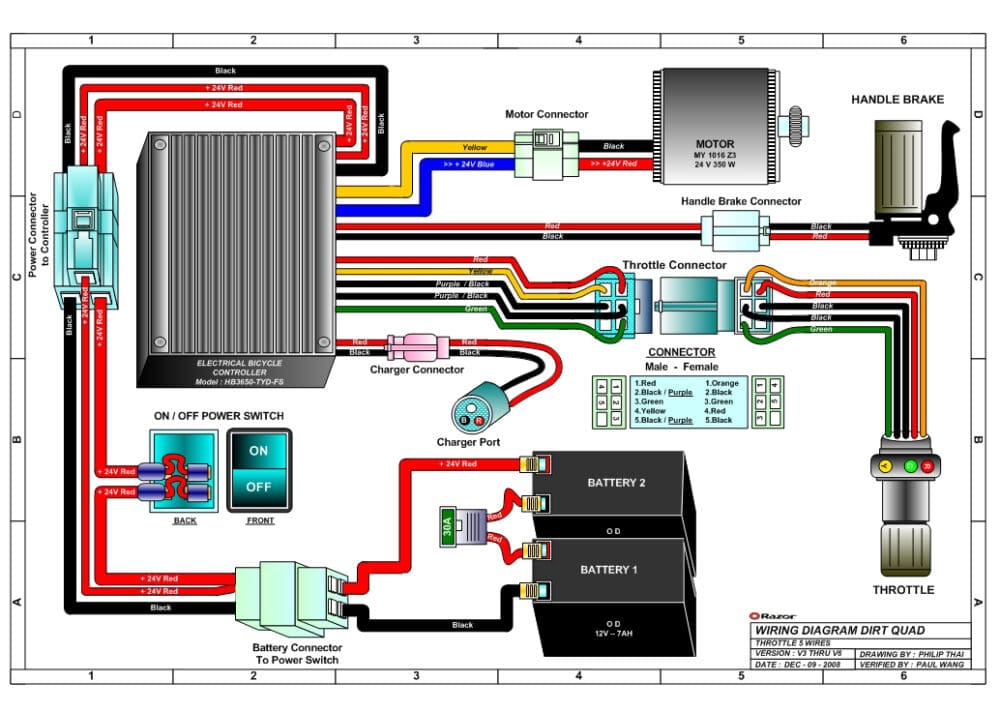

- Dirt Quad Wiring Diagram (Versions 3–6)

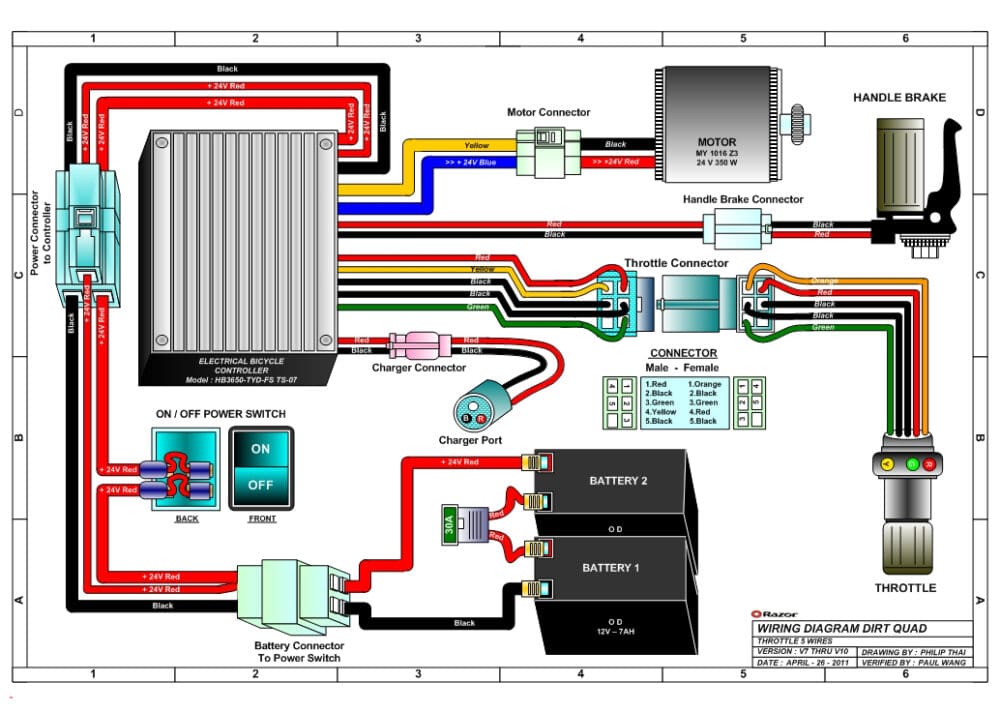

- Dirt Quad Wiring Diagram (Versions 7–10)

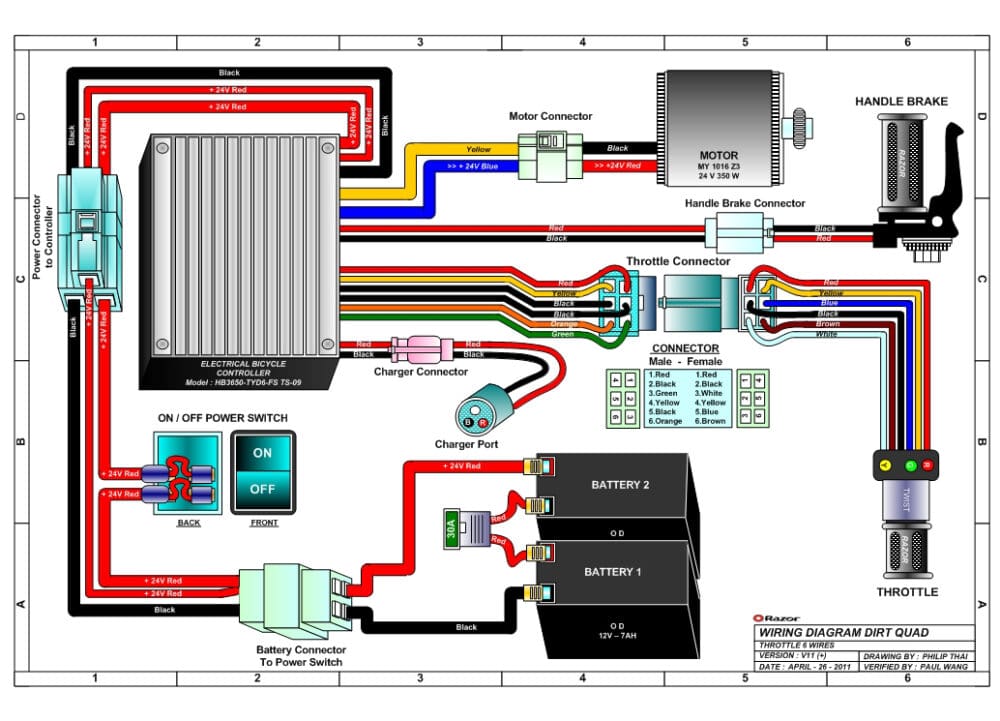

- Dirt Quad Wiring Diagram (Version 11 and up)

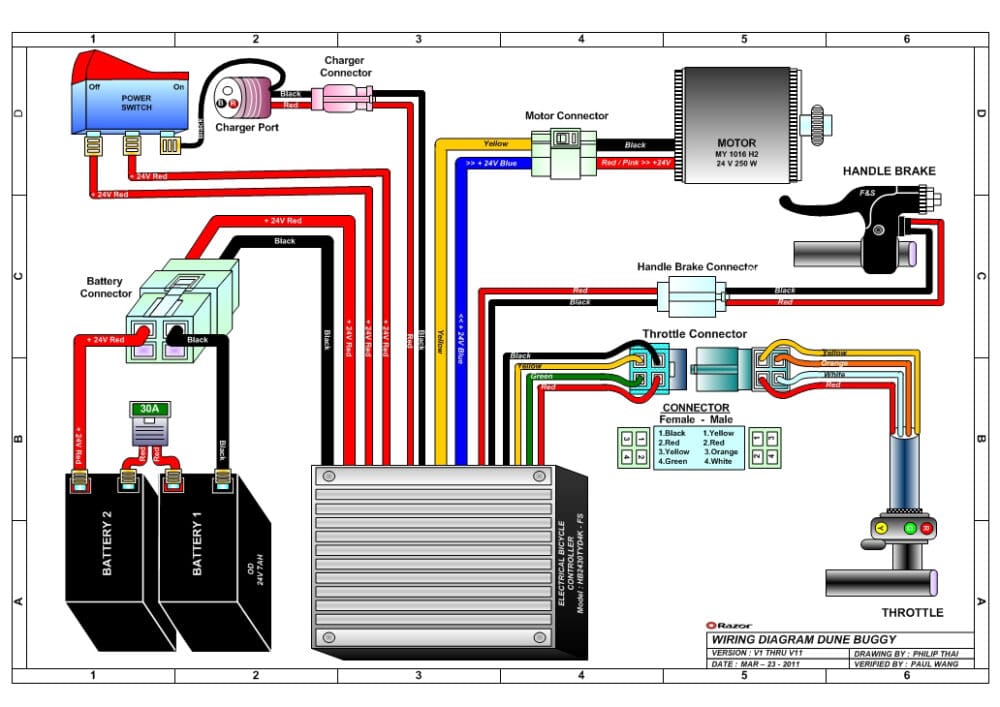

- Dune Buggy Wiring Diagram (Versions 1–11)

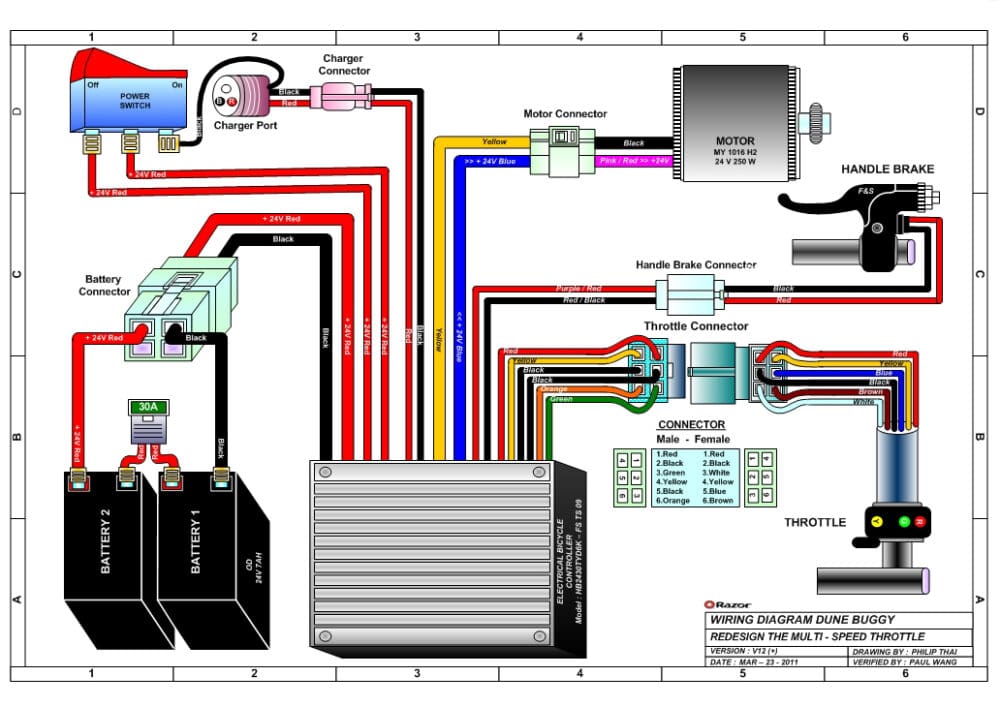

- Dune Buggy Wiring Diagram (Version 12 and up)

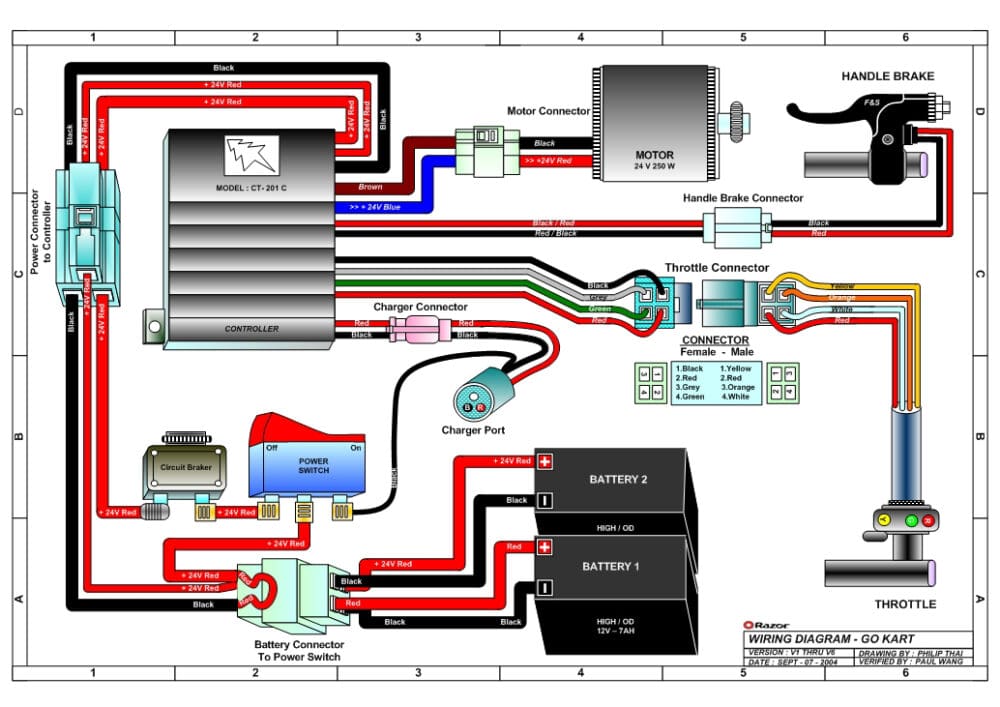

- Go‑Kart Wiring Diagram (Versions 1–6)

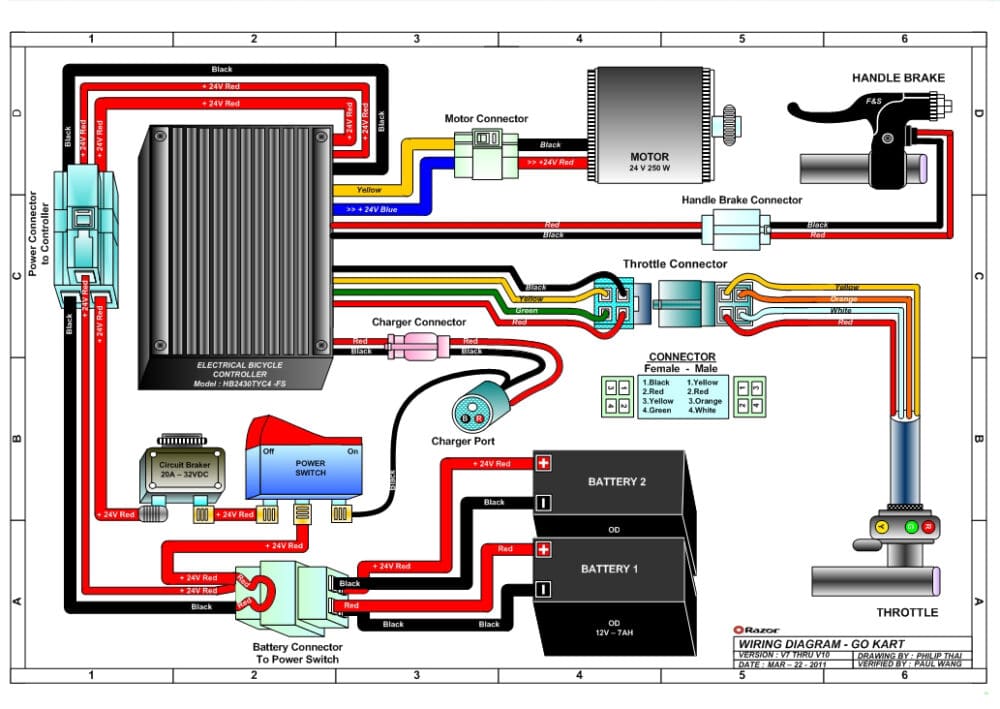

- Go‑Kart Wiring Diagram (Versions 7–10)

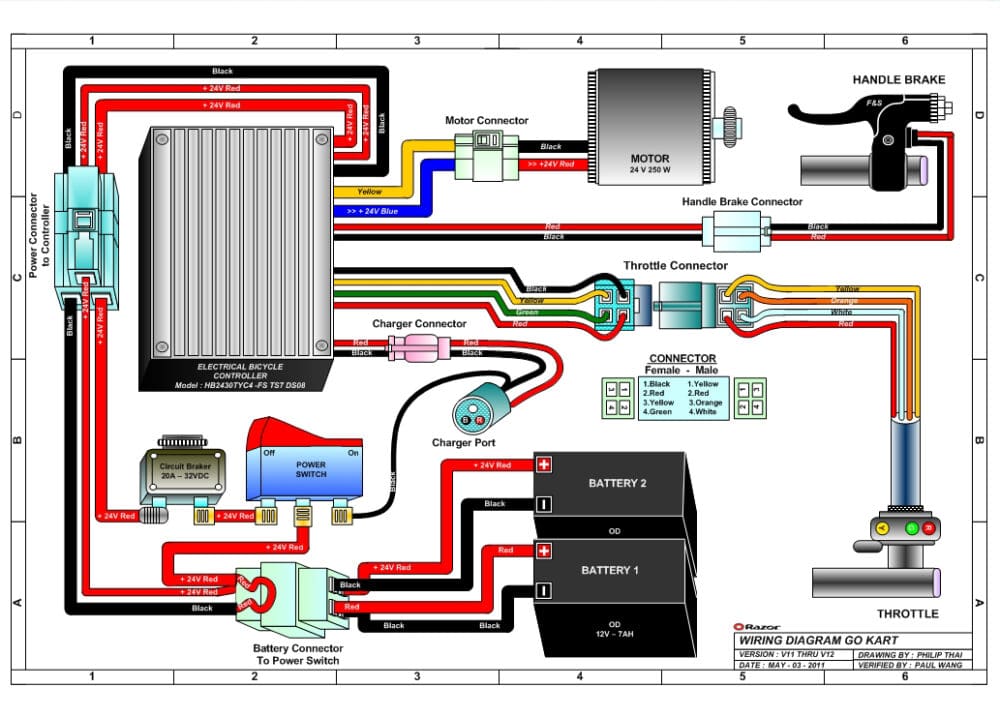

- Go‑Kart Wiring Diagram (Versions 11–12)
- Go‑Kart Wiring Diagram (Version 13 and up)
- Ground Force Drifter Wiring Diagram (Versions 1–2)
- Ground Force Drifter Wiring Diagram (Version 3 and up)
Razor manuals & wiring FAQ
How do I find my Razor version number?
Razor version numbers are usually printed on a white sticker near the barcode on the scooter or ride‑on. Look on the frame, under the deck, or near the battery compartment for a label that includes the model name and a “V” followed by a number (for example, V13 or V29). Use that version number to choose the wiring diagram or manual that matches your exact unit.
Why are there multiple wiring diagrams for the same model?
Razor often updates controllers, throttles, brake switches, and other components over time while keeping the same model name. Each revision can change the wiring layout, so a version V1 may not match a version V20 even though they are both the same model. Multiple diagrams ensure you can match the wiring exactly to your scooter or ride‑on.
What if my Razor model isn’t listed?
If you do not see your model or version listed, you can contact ScootsUSA with your model name, version number, and any photos of the wiring or labels. We may be able to help identify a compatible diagram or suggest parts that fit based on what you share. New manuals and diagrams are added over time as they become available.
Can I use a wiring diagram from a different version?
It is not recommended to use a wiring diagram from a different version, even if the scooter looks similar. Small changes in connectors, controller pins, or safety switches can cause incorrect wiring, which may damage components or create unsafe conditions. Always try to match the wiring diagram to your exact model and version.
Do you sell replacement parts?
Yes. ScootsUSA stocks replacement parts for many Razor scooters and ride‑ons, including controllers, throttles, batteries, chargers, and more. Once you confirm your model and version, you can browse compatible parts on our site or contact us for help matching the correct components.
How do I download a manual or wiring diagram?
Click any manual or wiring diagram link in the list. Most files will open in your browser in a new tab. To download the file to your device, look for your browser’s download icon (usually an arrow pointing down) or right‑click the link and choose “Save link as…”. On phones and tablets, press and hold the link until your device shows a download or save option.
Razor trademark & content disclaimer
ScootsUSA is an independent retailer and is not affiliated with, sponsored by, or endorsed by Razor USA LLC. All manuals and wiring diagrams on this page are provided for educational and repair reference only and may not cover every version or configuration. Razor® is a registered trademark of Razor USA LLC. All trademarks, logos, and brand names are the property of their respective owners and are used here for identification purposes only.
