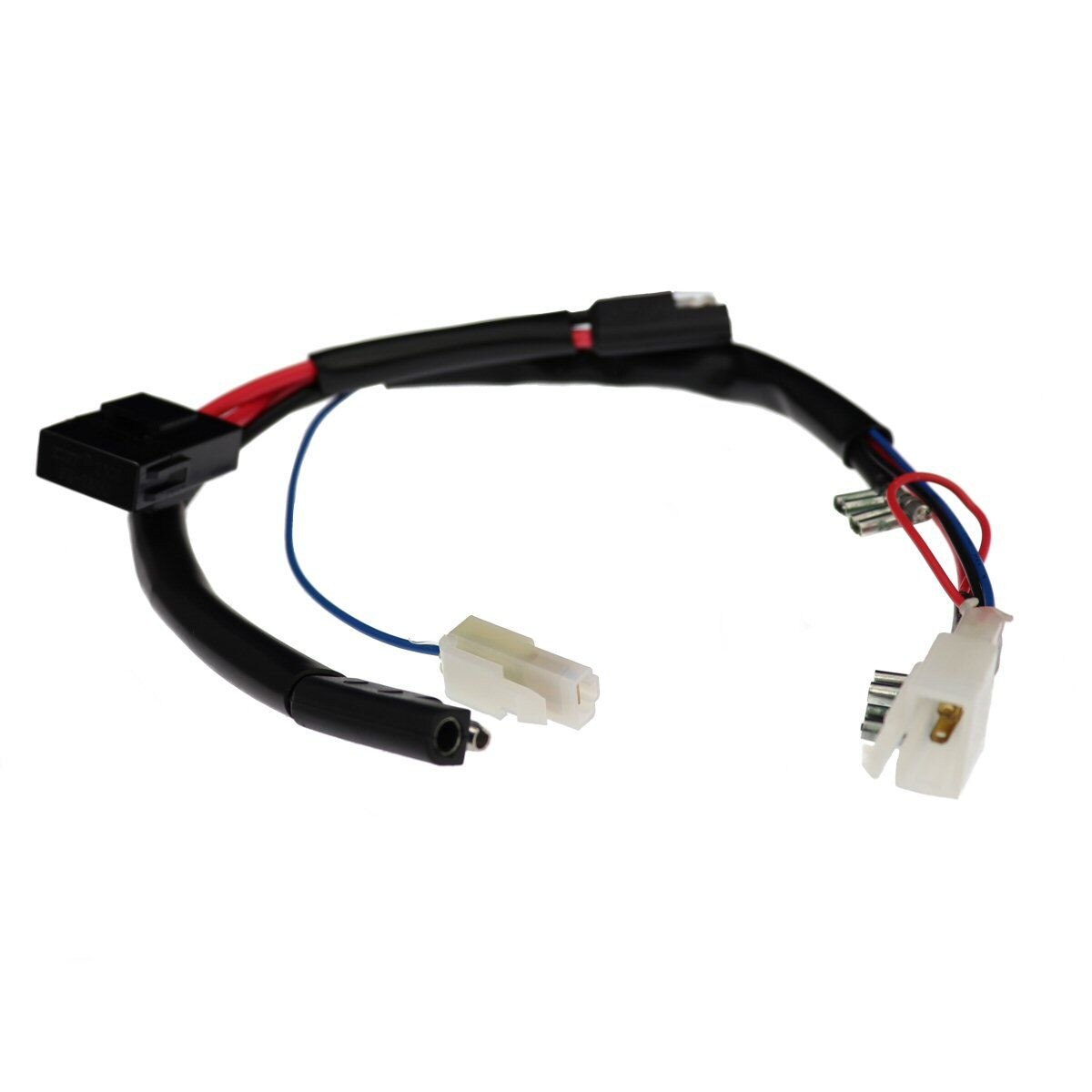

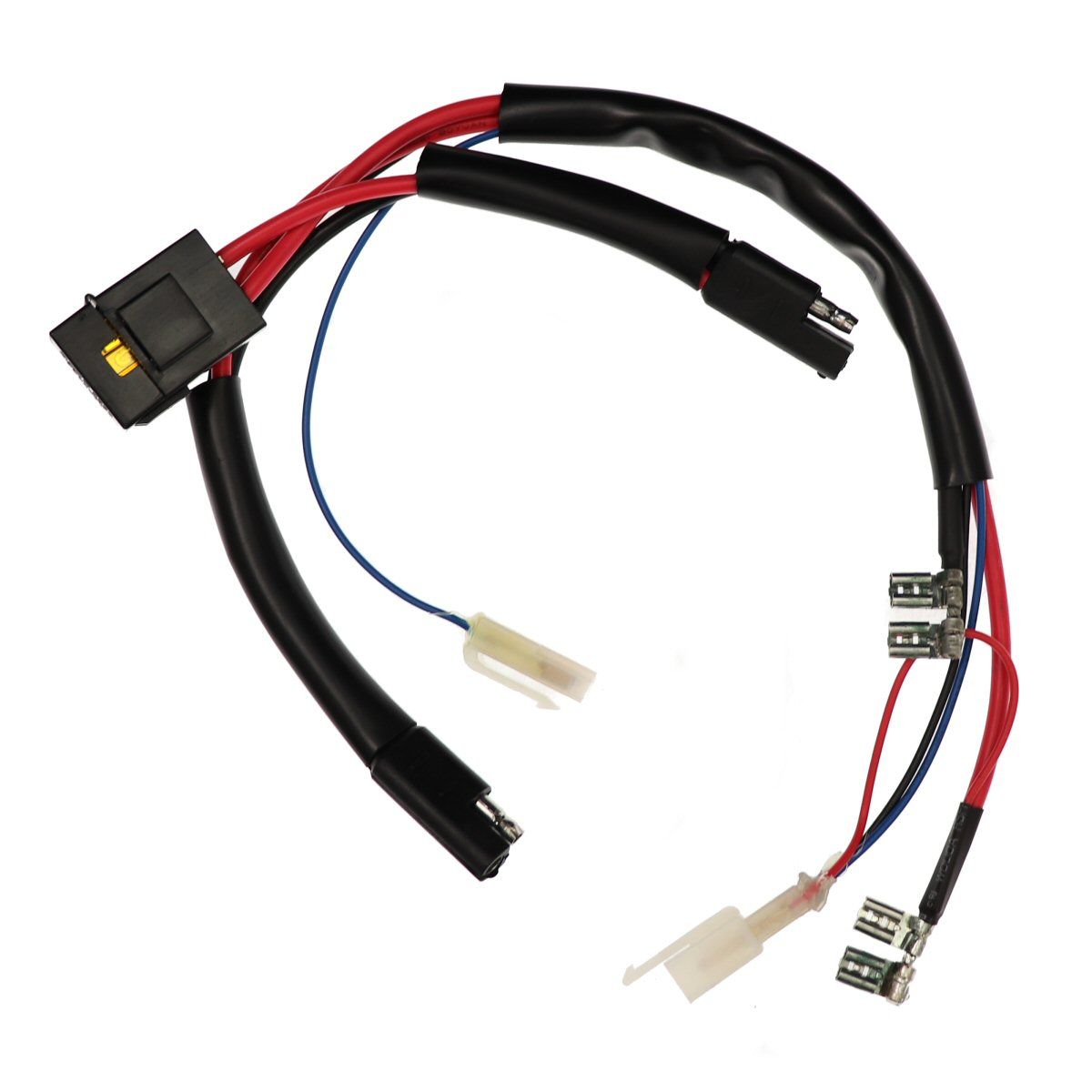

UP 24V Battery Wiring Harness w/Charge Inhibitor for Currie E-Scooters
UP 24V Battery Wiring Harness w/Charge Inhibitor for Currie E-Scooters
$31.22
2 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Currie 24V Battery Wire Harness w/Charge Inhibitor
Key Details
- 120-65
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 5 × 7 × 1 in |
| Condition | New |
|---|
Universal Parts 24V battery wiring harness with integrated charge inhibitor for Currie-manufactured electric scooters (eZip, IZIP, Schwinn, GT). The charge inhibitor automatically disables the throttle while the charger is connected, preventing accidental starts and protecting the charging port. Includes a pre-installed 40-amp fuse and standard Currie 3-pin charging connector. Part number: B02-1000.
Installation tip: Inspect battery terminals for corrosion when replacing the harness. If the old harness melted at the fuse holder, this often indicates a failing motor or dragging brake overworking the electrical system. Replace batteries in pairs for even charging.
Key Features
- Integrated charge inhibitor — disables throttle while charger is connected
- Pre-installed 40-amp fuse for controller and motor surge protection
- Standard Currie 3-pin charging connector and heavy-duty battery ring terminals
- Heavy-gauge high-strand copper wiring for 500W–900W Currie motor systems
- System Voltage: 24V (dual 12V battery setup)
- Fuse Rating: 40 Amp
- Connector Type: 3-pin Currie style
- Part Number: B02-1000 (SKU: 120-65)
| Brand | Compatible Models |
|---|---|
| eZip | E-500, E-750, E-900 |
| IZIP | I-300, I-350, I-400, I-500, I-650, I-750 (24V) |
| Schwinn | S300, S350, S400, S500, S650, S750 (2006+ 24V only) |
| GT Scooters | GT-250, GT-300, GT-350, GT-500, Kobra, Shockwave |
