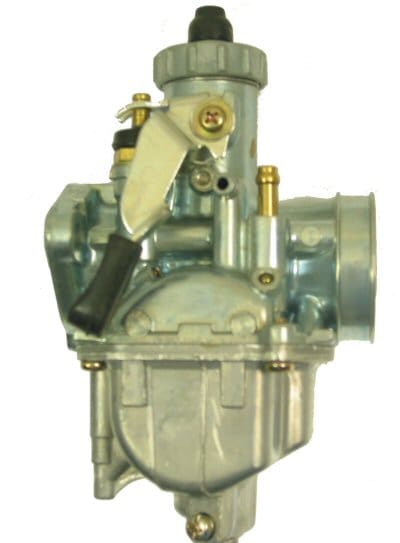

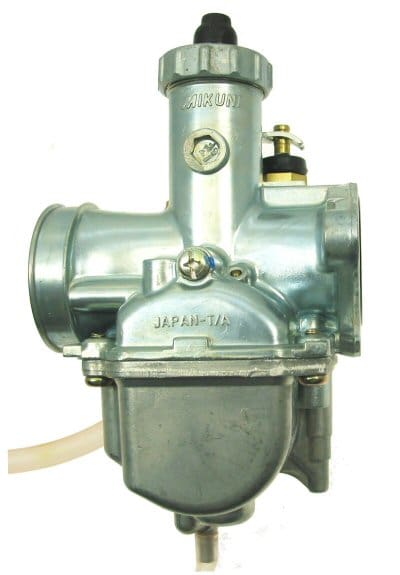

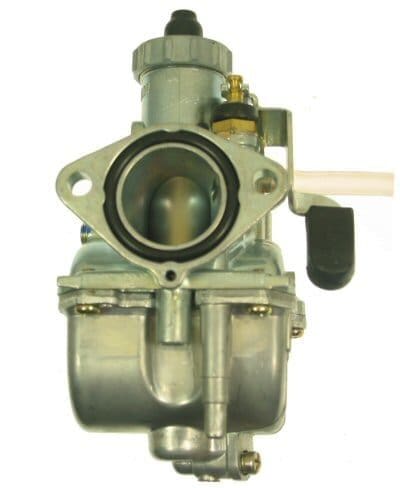

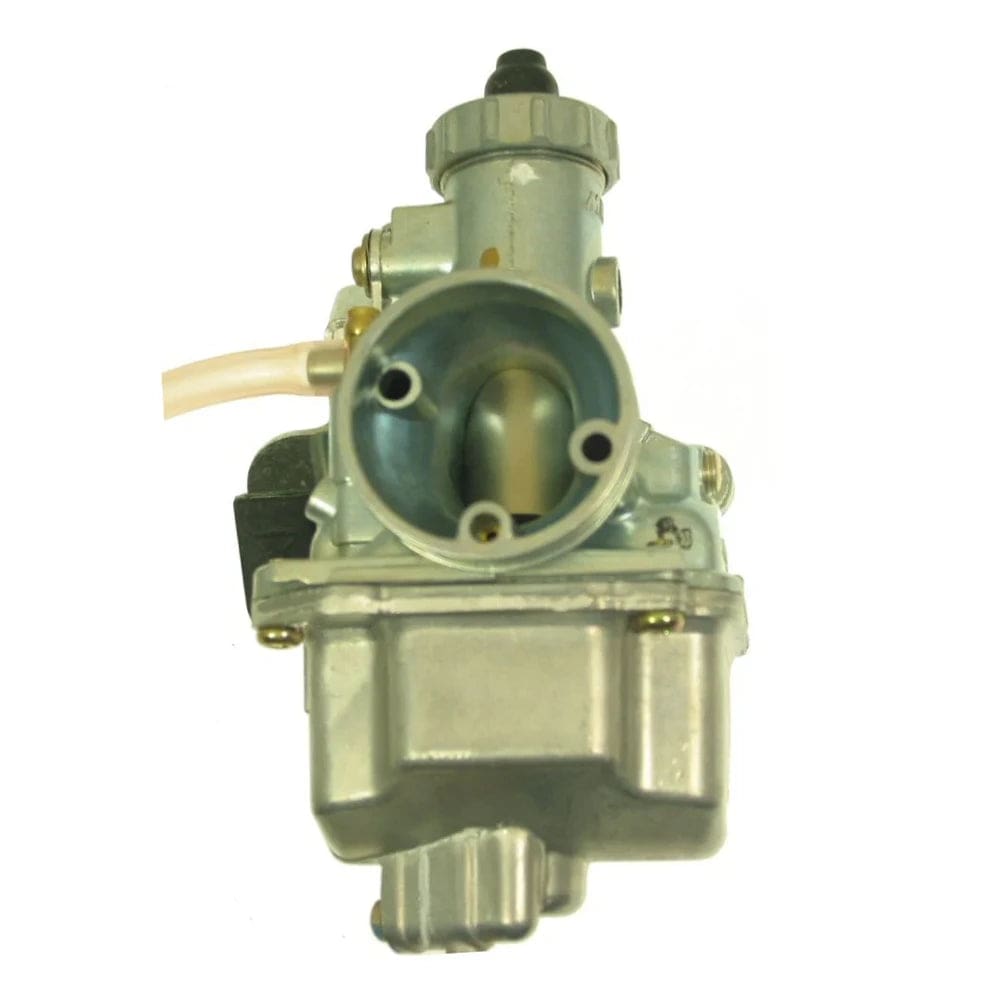

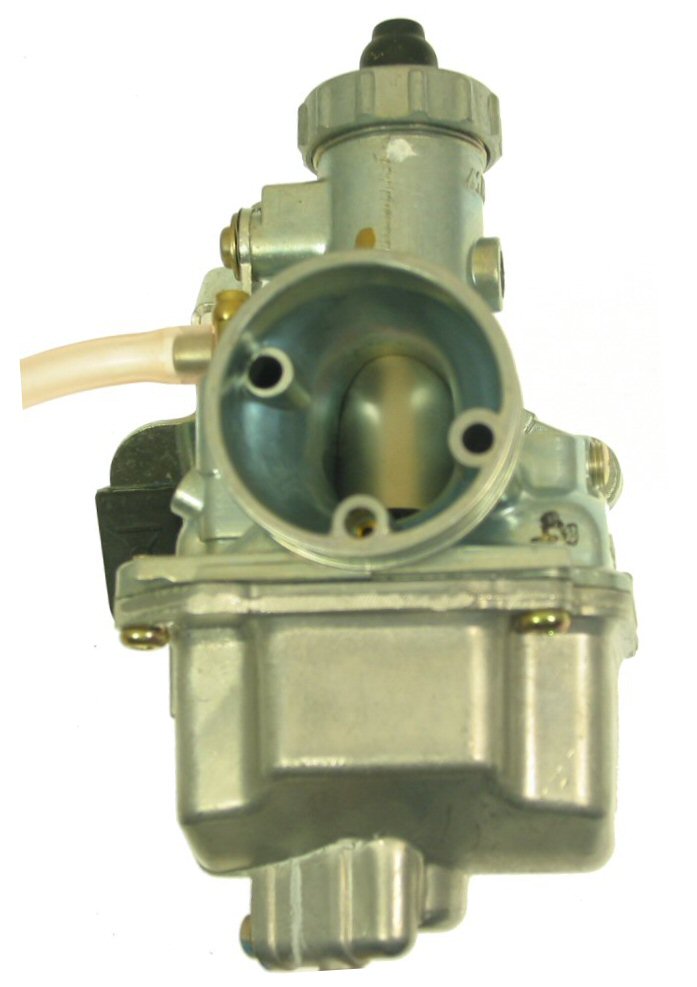

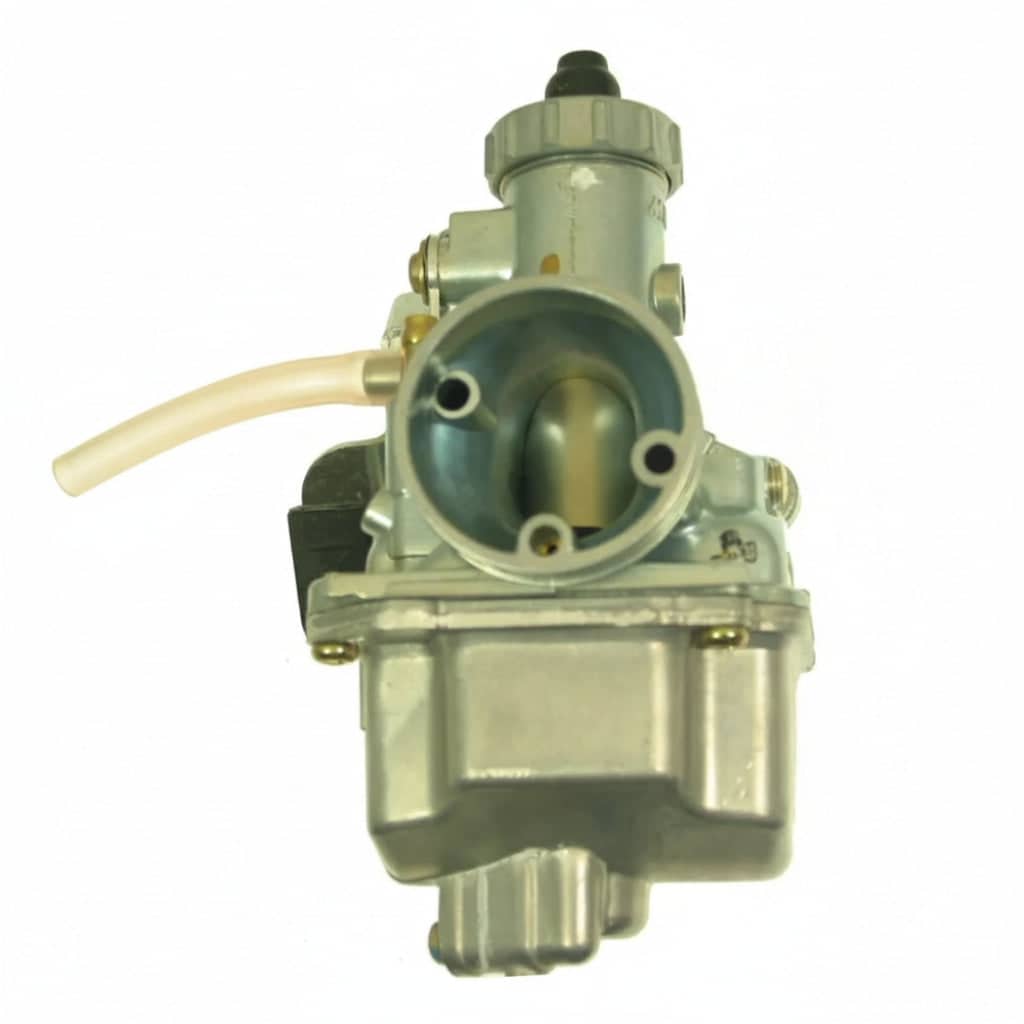

Universal Parts Mikuni Carburetor – PZ22
Universal Parts Mikuni Carburetor – PZ22
$87.66
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Universal Parts Mikuni Carburetor – PZ22
Key Details
- 114-21
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Fitment Notes: Universal Fit
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Additional information
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 8 × 5 × 5 in |
Upgrade or replace the carburetor on your 70cc–225cc pit bike, ATV, or small-displacement engine with this Mikuni PZ22 Carburetor. Featuring a 22mm slide-type venturi with a 25mm side opening, this Mikuni-style carburetor is a direct bolt-on for engines using a 48mm bolt hole flange and a 40mm air filter outlet. The choke lever is mounted on the left side with a rear-facing intake — if your intake faces forward, the choke will be on the right side.
Not intended for use on public roads or land. For off-road and closed-course competition use only.
Key Features
- 22mm Slide Carburetor: PZ22 slide-type design with 25mm venturi side opening for responsive throttle on 110cc–125cc engines.
- 48mm Bolt Hole Spacing: Standard flange pattern for direct bolt-on fitment on most 110cc–125cc pit bike and ATV engines.
- 40mm Air Filter Outlet: Fits standard 40mm pod or box-style air filters.
- Left-Side Choke Lever: Choke on left with rear-facing intake (right side if intake faces forward).
- Mikuni-Style Construction: JAPAN-T/A casting, brass pilot jet, and quality float bowl assembly.
Compatible Vehicles & Engines
Pit Bikes & Dirt Bikes: Honda CRF50, CRF70, XR50, XR70, SSR, Apollo, Coolster, Kayo, and Xpro 110cc/125cc models.
ATVs & Quads: TaoTao, Sunl, Kazuma, Roketa, and Coolsport 70cc, 90cc, 110cc, and 125cc utility quads.
Go-Karts & Mini Bikes: Custom or stock frame setups running small-block industrial engines.
Chinese Horizontal Engines: 110cc and 125cc semi-automatic or manual clutch engines (such as the 152FMH).
Small-Block OHV Engines: Frequently adapted with a specialized manifold as a performance upgrade for the Predator 212 (Hemi/Non-Hemi), Honda GX200, Predator Ghost, and similar 196cc–225cc go-kart engines.
Technical Specifications
- Type: PZ22 slide carburetor
- Venturi Side Opening: 25mm
- Bolt Hole Spacing: 48mm
- Air Filter Side Outer Diameter: 40mm
- Main Jet: 95
- Idle Jet: 15
- Choke: Left side (rear-facing intake)
