Universal Parts Dirt Bike/Pit Bike Shock – 253mm
Universal Parts Dirt Bike/Pit Bike Shock – 253mm
$40.22
Out of stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Universal Parts Dirt Bike/Pit Bike Shock – 253mm
Key Details
- 173-12
Specifications
- Overall Length: 11 inches (278mm) Bolt Hole Spacing: 10 inches (253mm) Bolt Hole Diameter: 10.25mm No Internal Dampening Dirt Quad,MX350 Dirt Rocket,MX400 Dirt Rocket,MX500 and 650 Dirt Rocket
Replacement Part Details
Use this part when the original component is worn, damaged, missing, or no longer working correctly. Many scooter parts can look similar but use different sizes, plugs, brackets, thread patterns, or mounting styles, so careful comparison before purchase is recommended.
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Fitment Notes: Universal Fit
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Additional information
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 12 × 3 × 3 in |

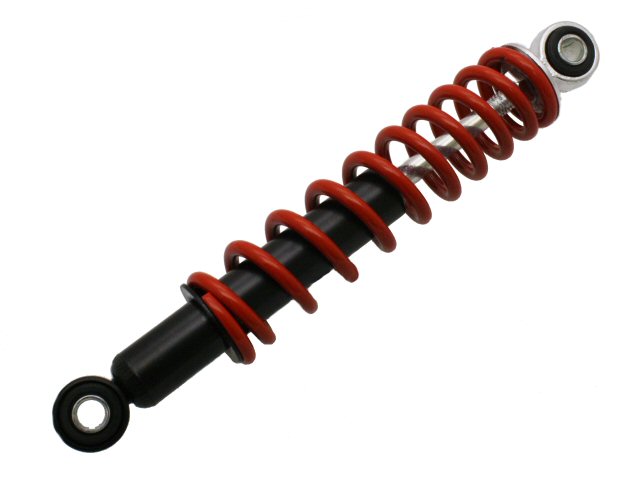

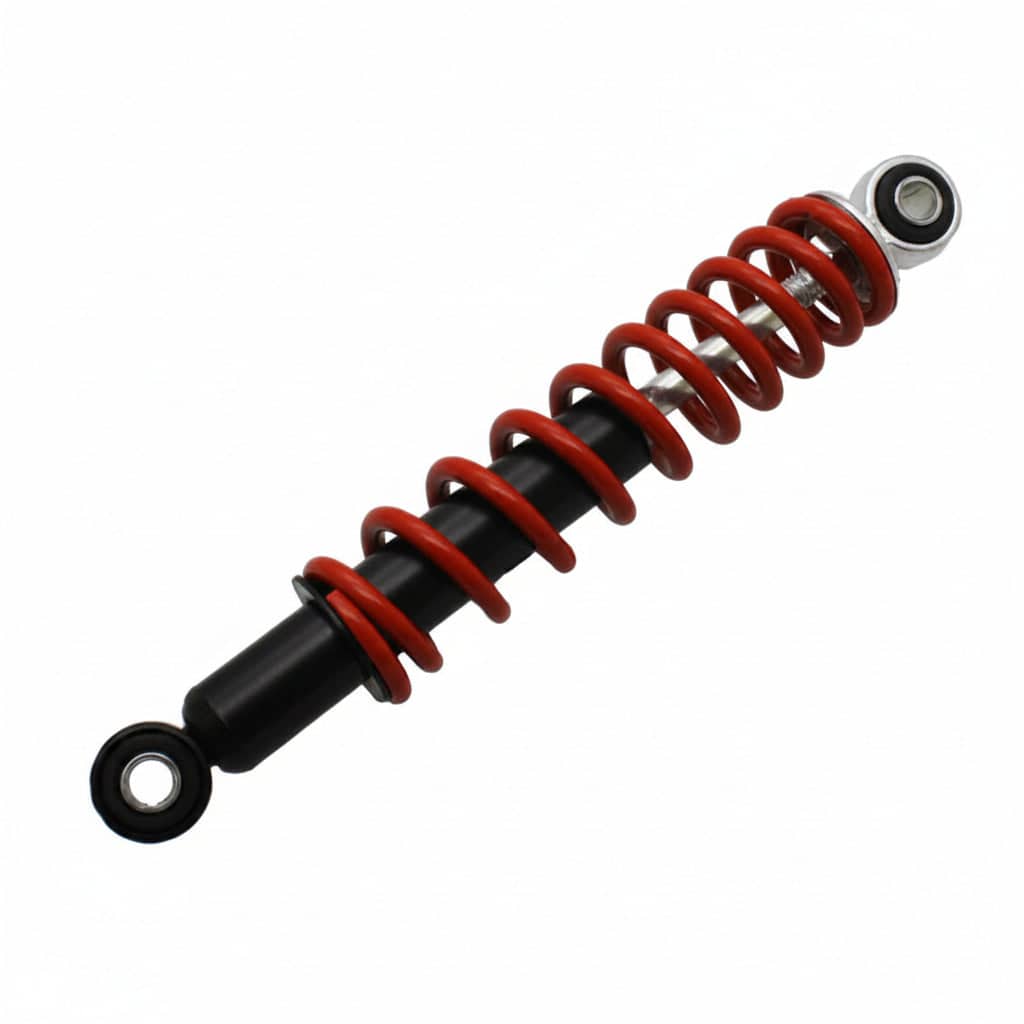

Replace a worn or damaged shock on your Razor electric dirt bike or quad with this Universal Parts direct-fit replacement. Featuring a red coil spring over a black steel body with eyelet mounts at both ends, this shock matches the OEM dimensions for a straightforward bolt-on installation.
- Direct OEM Replacement: Matches factory dimensions for compatible Razor electric dirt bikes and quads — no modifications required
- Dual Eyelet Mounts: Standard eyelet-style mounting at both ends with 10.25mm bolt holes for secure frame and swing-arm attachment
- 253mm Bolt Hole Spacing: Center-to-center mount distance matches OEM shock mounting points on compatible vehicles
Fitment
- Razor Dirt Quad
- Razor MX350 Dirt Rocket
- Razor MX400 Dirt Rocket
- Razor MX500 Dirt Rocket
- Razor MX650 Dirt Rocket
Technical Specifications
- Overall Length: 278mm (11 inches)
- Bolt Hole Spacing (Center-to-Center): 253mm (10 inches)
- Bolt Hole Diameter: 10.25mm
- Dampening: Outer coil spring
- Spring Color: Red
- Body Color: Black
- MPN / SKU: 173-12
Note: this shock does not include internal hydraulic dampening — it is a spring-only unit, matching the stock configuration on compatible Razor models.
