Universal Parts Dirt Bike Hub Connector – 54mm Sprocket
Universal Parts Dirt Bike Hub Connector – 54mm Sprocket
$27.25
5 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Universal Parts Dirt Bike Hub Connector – 54mm Sprocket
Key Details
- 143-10
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Fitment Notes: Universal Fit
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 6 × 6 × 5 in |

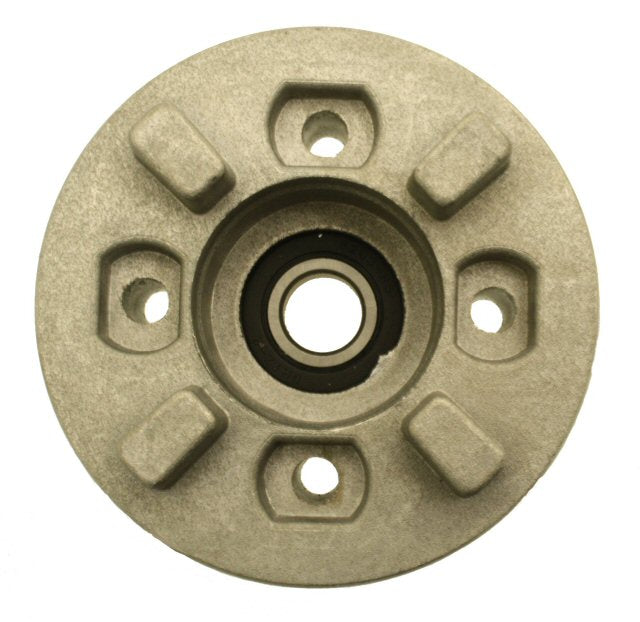

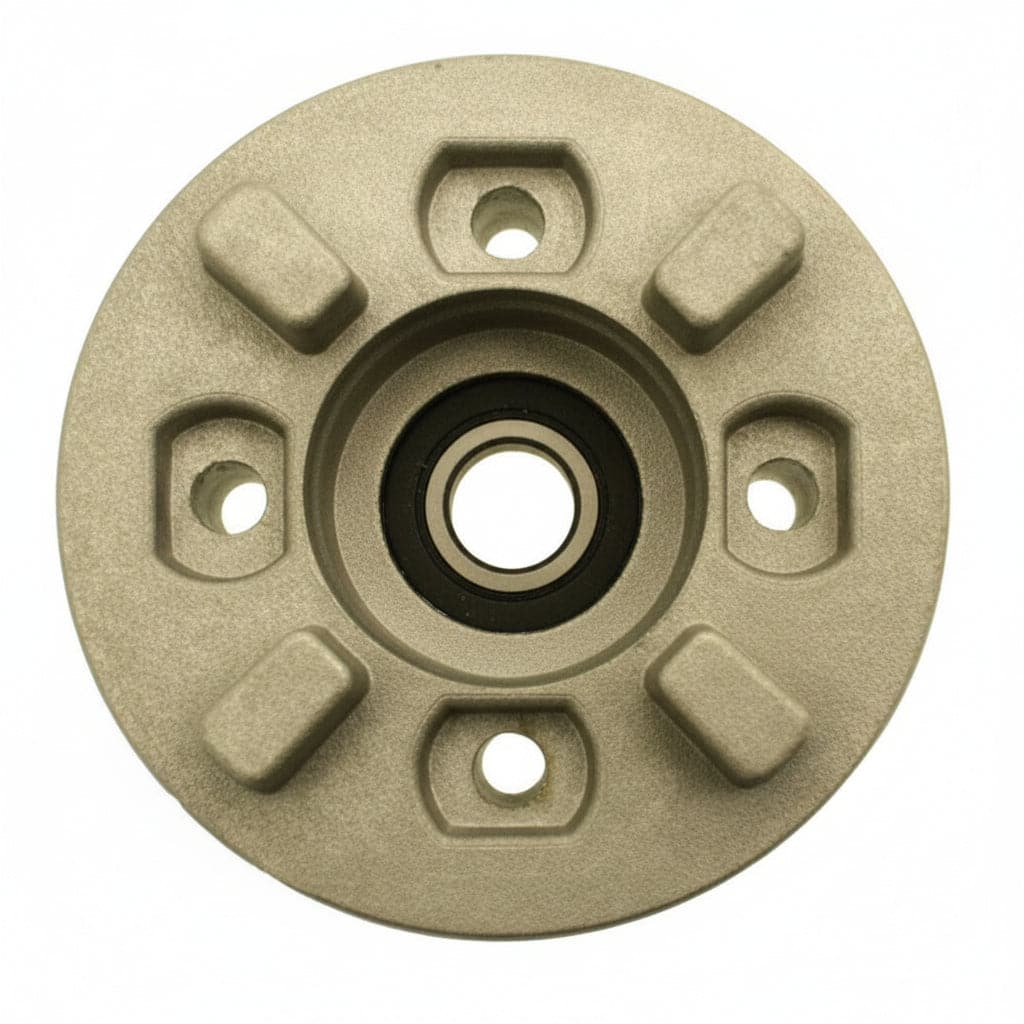

Replace a worn or damaged sprocket carrier with this Universal Parts Cush Drive Sprocket Hub Carrier for mini dirt bikes and pocket bikes. Cast alloy construction with four cush drive rubber cushion pads on the sprocket-facing side to absorb chain shock and reduce drivetrain stress. Pre-installed 6203-RS sealed bearing and 25x40x7 heavy-duty grease seal protect against dust and moisture. Four-bolt mounting pattern on the rim-facing side with a raised center hub. Verify your sprocket bore and bolt pattern dimensions before ordering.
- SKU: 143-10
- Brand: Universal Parts
- Sprocket Bore (Inner Diameter): 54mm
- Bolt Hole Spacing (Diagonal): 70mm
- Bearing: 6203-RS sealed bearing (pre-installed)
- Grease Seal: 25x40x7mm (pre-installed)
- Material: Cast alloy
- Bolt Holes: 4
- Dimensions: 6" L x 6" W x 5" H
Universal fit for mini dirt bikes, pocket bikes, and small electric dirt bikes using a sprocket with a 54mm center bore and a 70mm diagonal bolt pattern. Common applications include 43cc, 47cc, and 49cc gas pocket/mini dirt bikes and small electric dirt bikes with matching sprocket and wheel dimensions.
Rim designs vary across manufacturers — always verify your sprocket bore and bolt hole spacing against the specs above before ordering.
