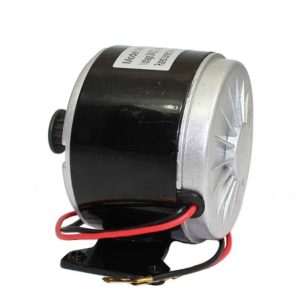

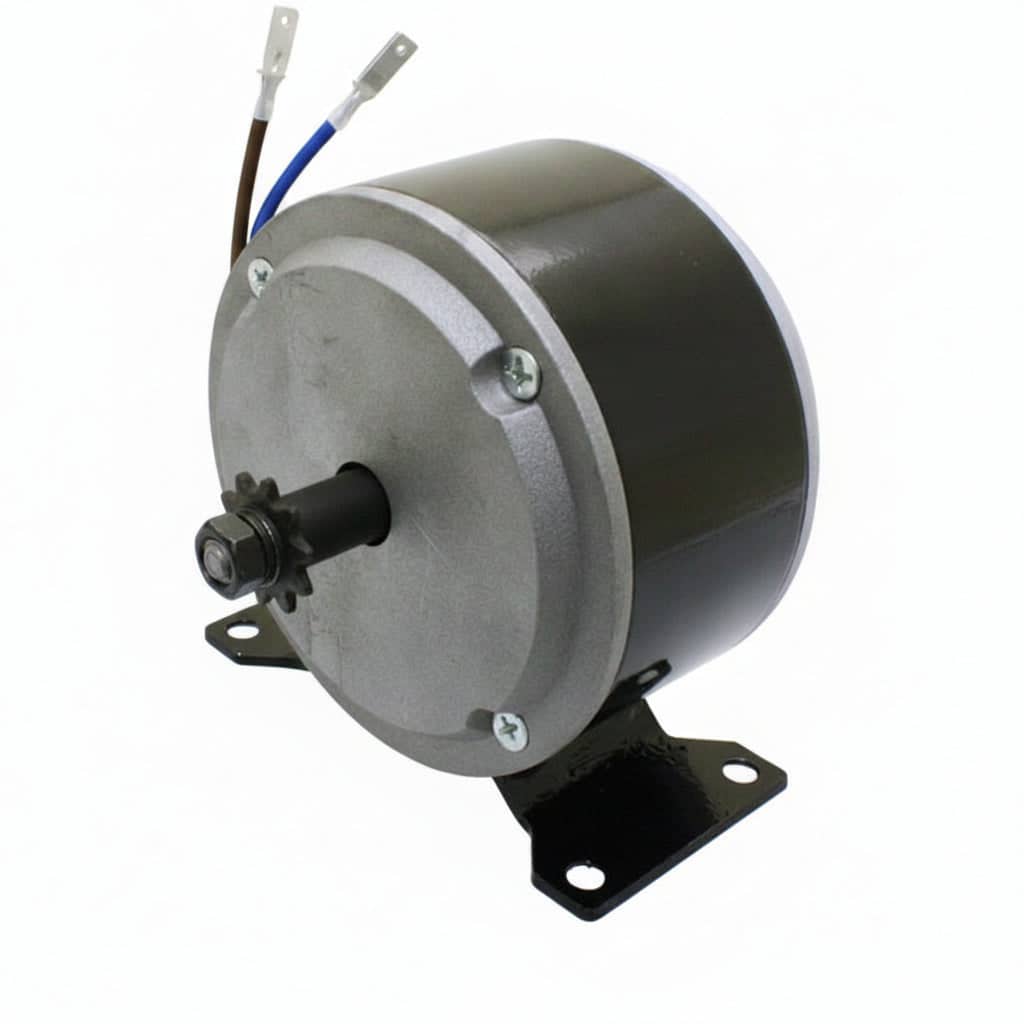

Universal Parts Chain Drive Motor for Razor E200 (24V, 200W)
Universal Parts Chain Drive Motor for Razor E200 (24V, 200W)
$61.42
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Universal Parts Chain Drive Motor for Razor E200 (24V, 200W)
Key Details
- 119-160
Specifications
- Length: 19 inches Overall Outer Diameter: 101mm 10 Tooth Sprocket Shaft Length: 30mm Razor E200E-200 NOTE: Scooter versions can be determined by locating your bar code ID on the bottom of the scooter. The 7th and 8th digit in the series will tell you the version of your product: 01=version 1; 02=version 2; 09=version 9, and so on. MY1016-II-1 Motor Wire Length: 19 inches Overall Outer Diameter: 101mm 10 Tooth Sprocket Shaft Length: 30mm Razor E200E-200
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Fitment Notes: Universal Fit
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
| Condition | New |
|---|

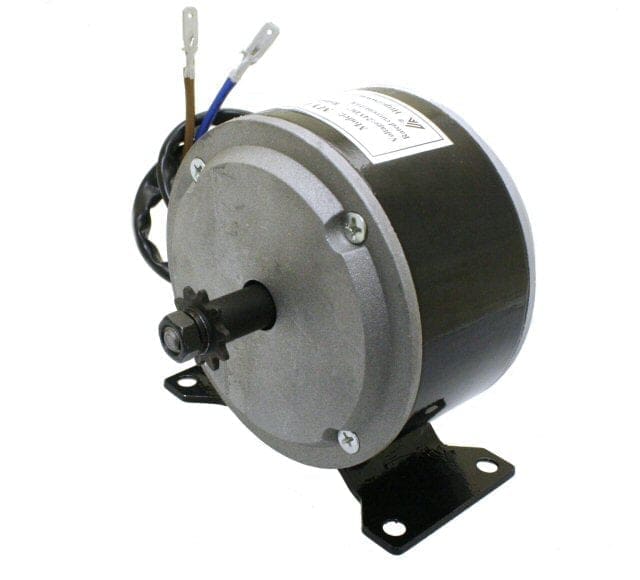

Restore original top speed and climbing torque to your Razor electric scooter with the Universal Parts 24V 200W Chain Drive Motor. This MY1016 permanent magnet brushed motor features full ball-bearing construction and high-density carbon brushes for long service life and stable power delivery. The 10-tooth sprocket for #25 chain is factory-installed on the 8mm left-hand-threaded shaft, and the 19-inch wire leads with quick-connect terminals route directly to your controller block.
Version fitment note: This is a chain-drive motor for Razor E200 / E225 versions 5 and up. It will not fit versions 1–4, which use a belt-drive configuration. To confirm your version, locate the barcode ID tag on the bottom of the frame — the 7th and 8th digits must be 05 or higher.
Key Features
- MY1016 permanent magnet brushed motor — full ball-bearing construction for low heat and long life
- High-density carbon brushes — stable voltage delivery and extended brush lifespan

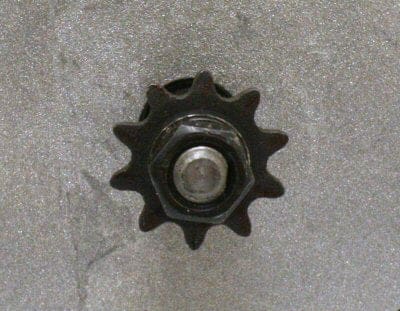

- Factory-installed 10-tooth sprocket for #25 chain — no sprocket swap required
- 8mm left-hand-threaded shaft — matches OEM Razor chain-drive configuration
- Reversible rotation — swap direction by reversing positive and negative leads

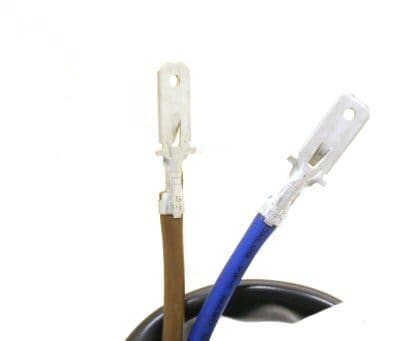

- 19-inch wire leads with quick-connect terminals — direct controller block connection

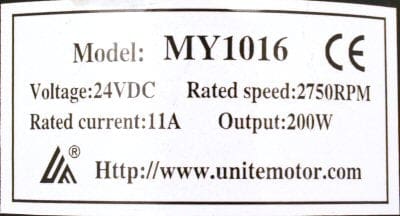

- Model: MY1016 / MY1016-II-1
- Voltage: 24V DC
- Output Power: 200W
- Rated Speed: 2750 RPM
- Rated Current: 11A
- Sprocket: 10-tooth, #25 chain
- Motor Body Diameter: 101mm (~4")

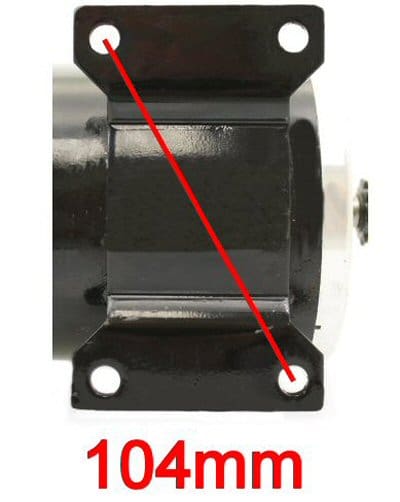

- Mounting Bracket Bolt Pattern: 104mm diagonal
- Shaft: 8mm diameter, 30mm length, left-hand thread
- Wire Leads: 19 inches, quick-connect terminals
- SKU: 119-160 | MPN: W13112099030
| Model | Versions |
|---|---|
| Razor E200 / E200S | Version 5 and up |
| Razor E225 Cruise | Version 5 and up |
| Razor E275 | All versions |
| Razor RX200 Rugged Terrain | All versions |
Installation tip: When fitting the motor bracket, verify chain alignment. A misaligned chain accelerates sprocket wear and can draw excess current, tripping the controller reset or blowing the inline fuse.
