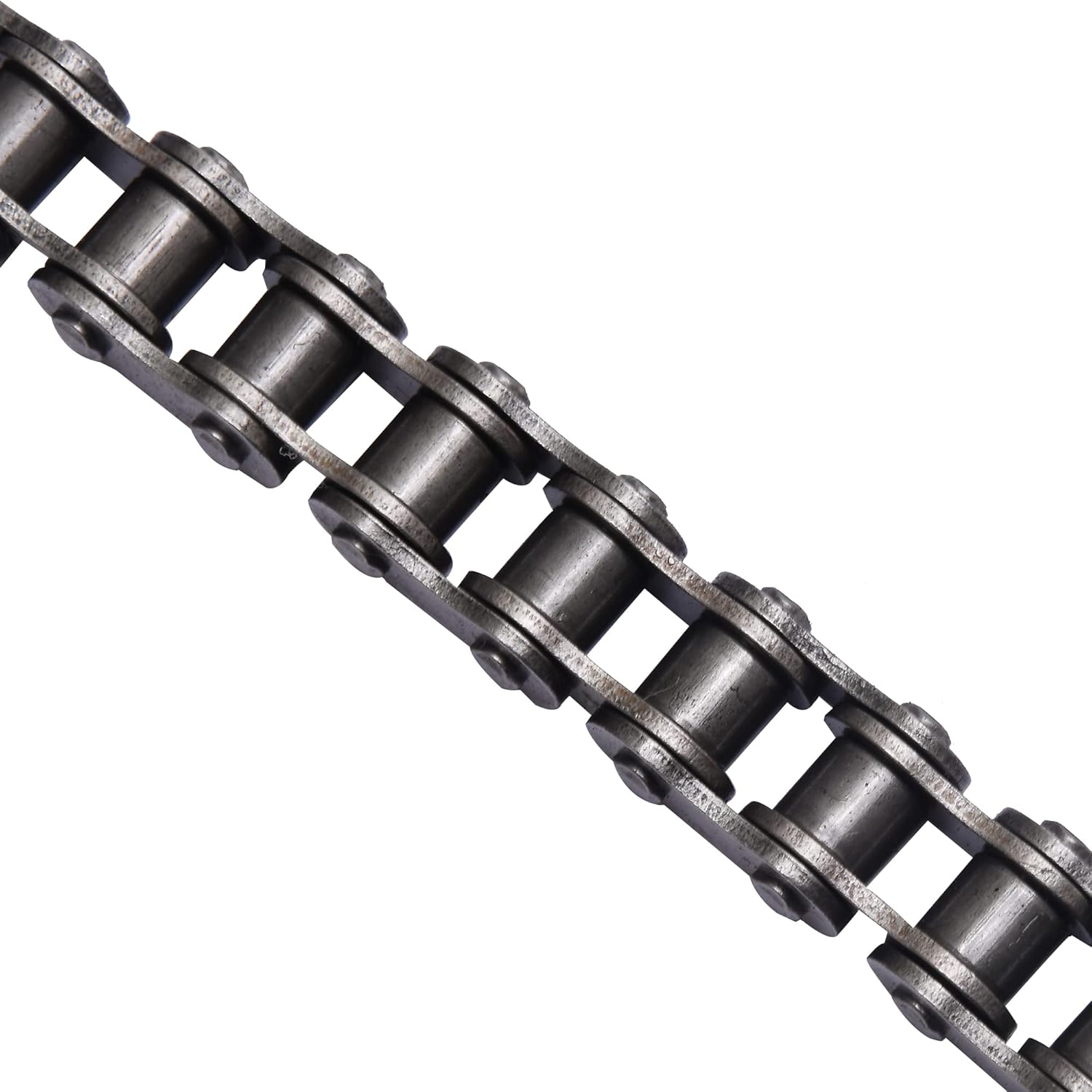

Universal Parts #428 Roller Chain

$22.49$104.19

Universal Parts #428 Roller Chain

Clear
UPC SKU: 115-88 Category:

#428 Metric Roller Chain found on ATVs, Dirt Bikes, Super Pocket Bikes, Karts and Buggies – Please select from 3 foot, 5 foot, 10 foot or 25 foot sections in drop down menu. For chain dimensions and info on how to measure your chain please click here. Sold in 3 ft., 5 ft., 10 ft. and 25 ft. Sections3 ft., 5 ft. & 10 ft. Sections Include 1 Master Link and 25 ft. Section Includes 4 Master LinksPitch: 12.70mmRoller Diameter: 8.51mmWidth Between Inner Plates: 7.75mmPin Diameter: 4.45mmPin Length: (L) 16.70mm (Lc) 8.2mmInner Plate Depth: 11.80mmPlate Thickness: 1.60mmUltimate Tensile Strength: 18.0/4091 kN/LBAverage Tensile Strength: 20.1 kN Weight Per Meter: 0.70 kg/m

Weight 16 oz
Dimensions 4 × 4 × 6 in
size

10FT, 25FT, 3FT, 5FT

  • Sold in 3 ft., 5 ft., 10 ft. and 25 ft. Sections
  • Includes 1 Master Link
  • Pitch: 12.70mm
  • Roller Diameter: 8.51mm
  • Width Between Inner Plates: 7.75mm
  • Pin Diameter: 4.45mm
  • Pin Length: (L) 16.70mm (Lc) 18.2mm
  • Inner Plate Depth: 11.80mm
  • Plate Thickness: 1.60mm
  • Ultimate Tensile Strength: 18.0/4091 kN/LB
  • Average Tensile Strength: 20.1 kN
  • Weight Per Meter: 0.70 kg/m
