Universal Parts 36V, 650W Motor for Razor RSF650 and MX650
Universal Parts 36V, 650W Motor for Razor RSF650 and MX650
$174.59
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description

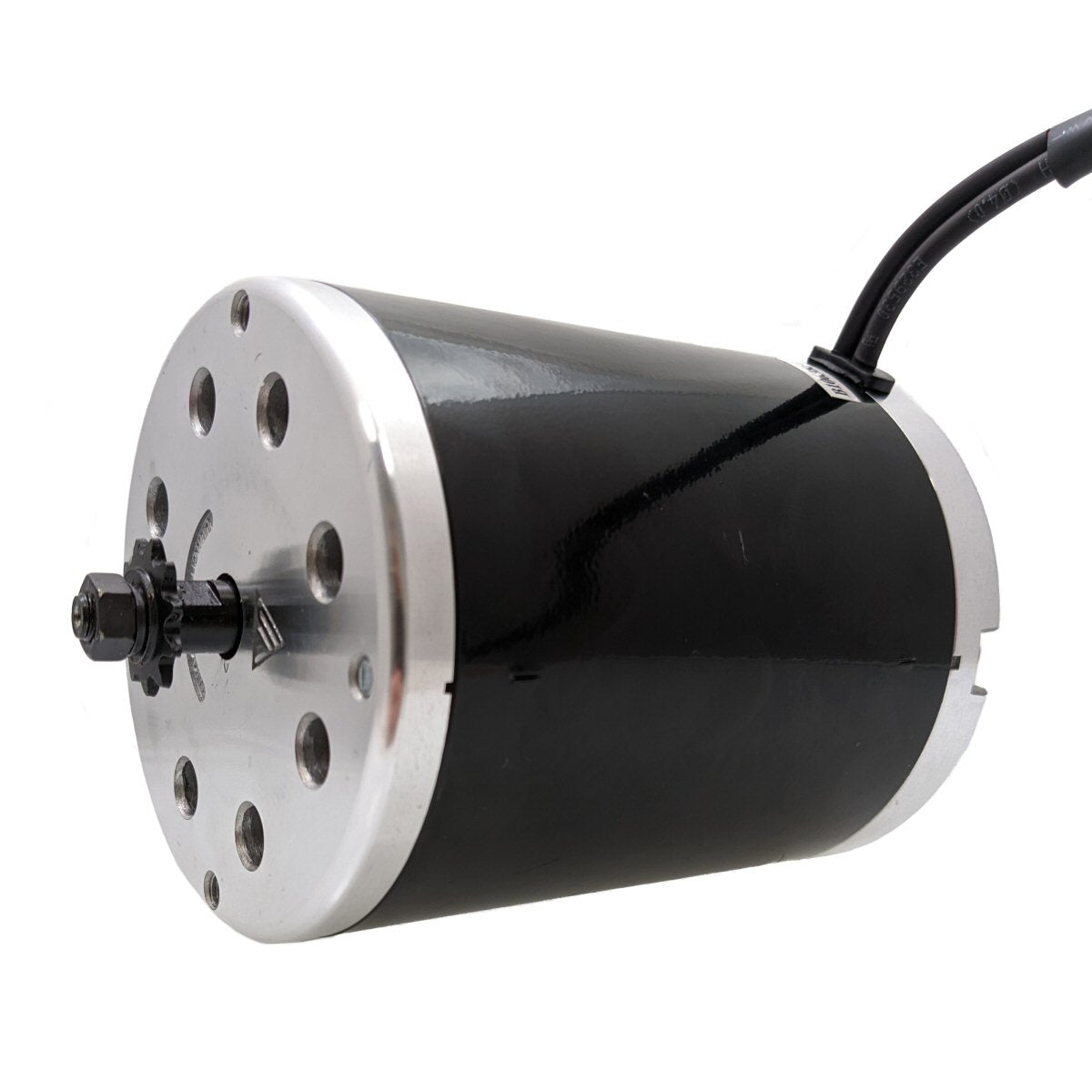

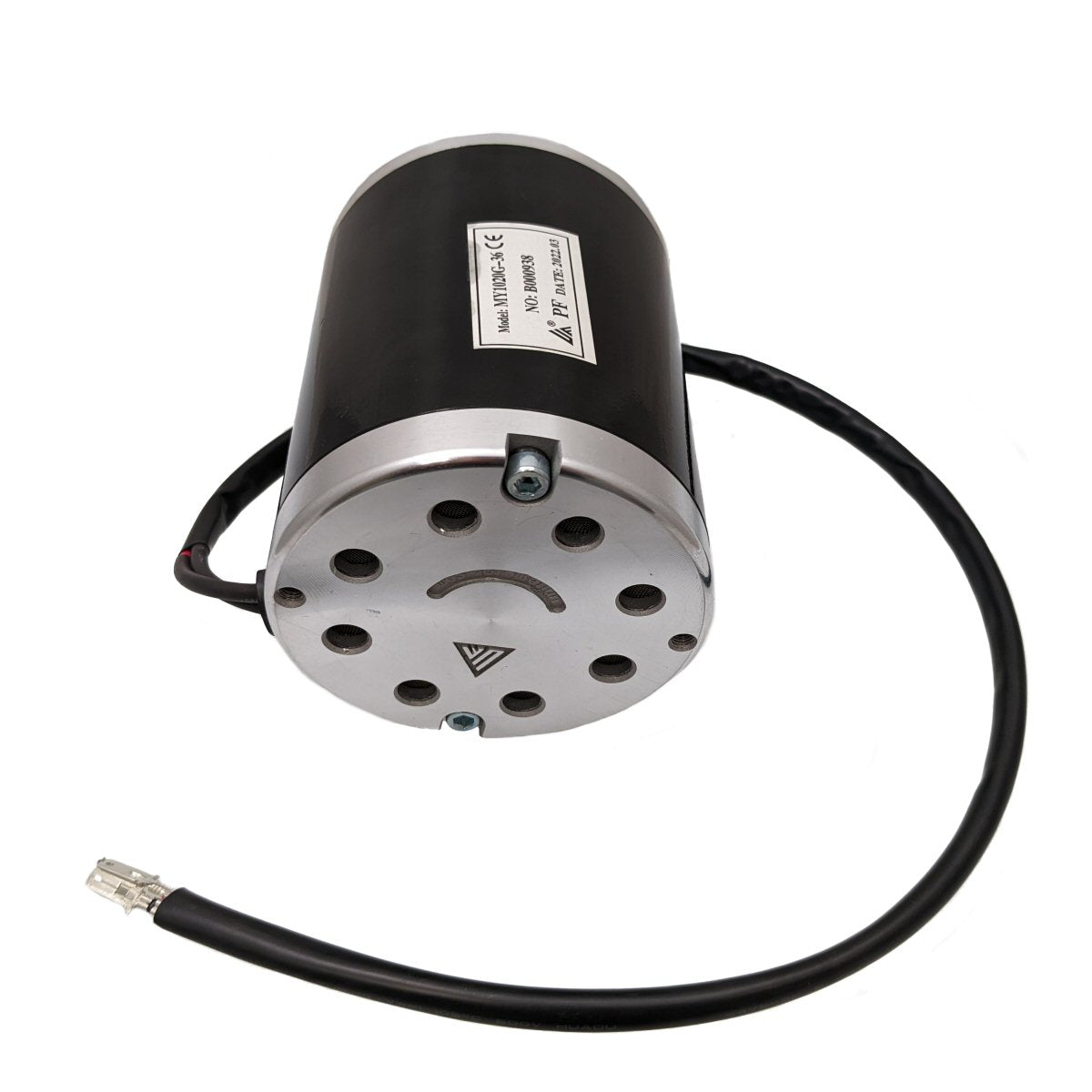

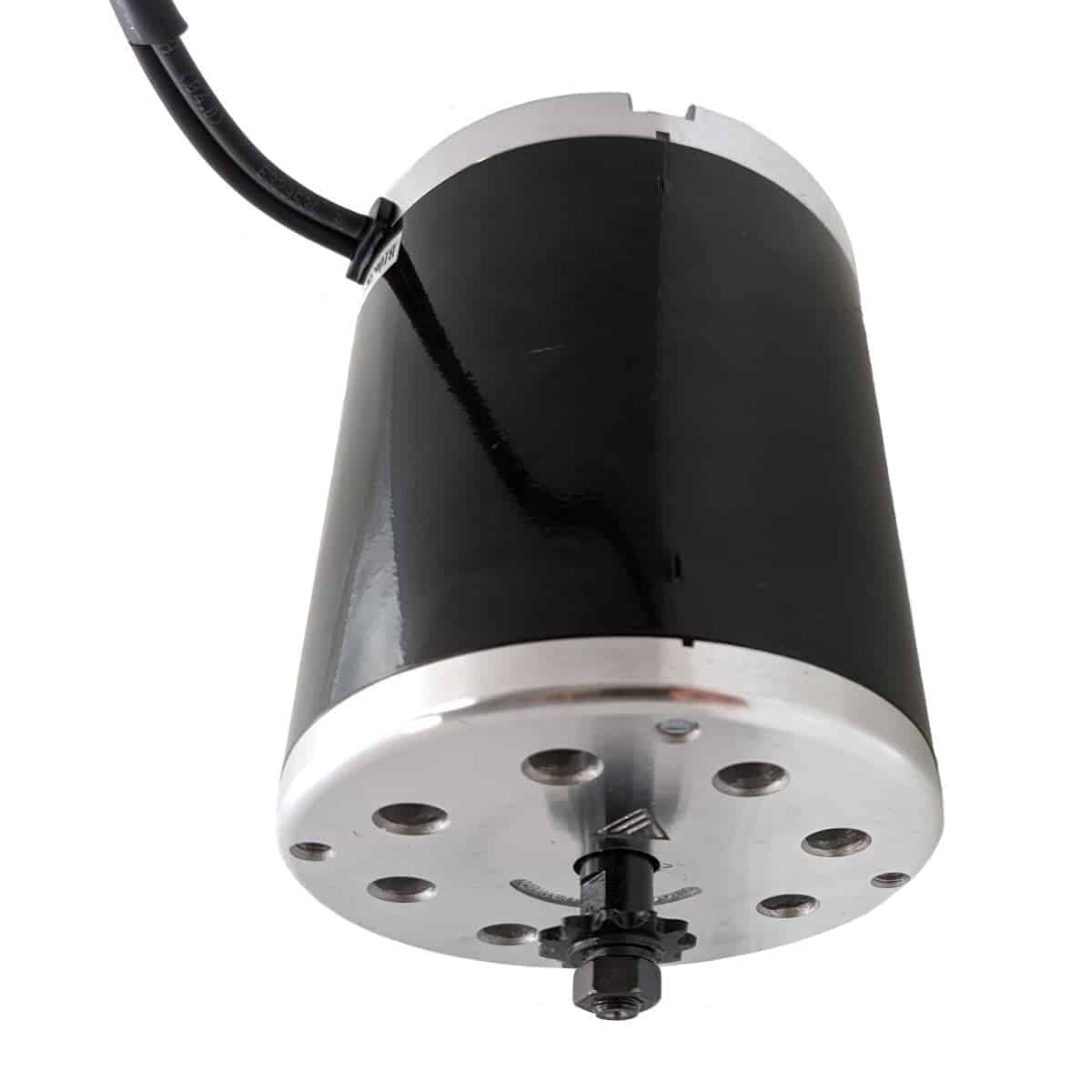

Universal Parts 36V, 650W Motor for Razor RSF650 and MX650
Key Details
- MY1020G-36
Specifications
- Height: 6.25 inches Wire Length Including Connectors: 29 inches Razor, Razor MX650MX500 and 650 Dirt Rocket,RSF650 Electric Sport Bike NOTE: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed. MY1020G-36 Motor Razor OEM# W15165070030 650 Watt 36 Volt 11 Tooth Sprocket Uses #25 Chain Overall Diameter: 4.25 inches Overall Height: 6.25 inches Wire Length Including Connectors: 29 inches Razor, Razor MX650MX500 and 650 Dirt Rocket,RSF650 Electric Sport Bike
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Fitment Notes: OEM, Electric, Universal Fit
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 7 × 7 × 6 in |
| Condition | New |
|---|
Replace the drive motor on your Razor RSF650 or MX650 with this Universal Parts MY1020G-36 chain-drive electric brush motor. Running at 36V and 650W, it matches the factory output spec and uses the same #25 chain and 11-tooth sprocket configuration as the original.
Note: This motor is not compatible with the MX500. Power wire polarity can be reversed to change rotation direction.
- Motor model: MY1020G-36
- Voltage: 36V
- Power: 650W
- Drive type: chain drive (brush motor)
- Sprocket: 11-tooth
- Chain: #25
- Overall diameter: 4.25"
- Overall height: 6.25"
- Wire length (including connectors): 29"
- Razor OEM part #: W15165070030
- Weight: 10 lbs
Compatible Models:
- Razor RSF650 Electric Sport Bike
- Razor MX650 / 650 Dirt Rocket
Not compatible with: Razor MX500
