Universal Parts 24V, 350W Motor for Razor Dirt Quad
Universal Parts 24V, 350W Motor for Razor Dirt Quad
$142.91
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Razor Dirt Quad 24V 350W Motor MY1016Z3 by Universal Parts
Key Details
- MY1016Z3
Specifications
- Overall Length: 140mm Overall Width: 128mm Overall Height: 132mm Wire Length Including Connectors: 18 inches Razor Dirt QuadDirt Quad NOTE: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed. MY1016Z3 Motor 350 Watt 24 Volt Gear Reduction Drive 25 Tooth Sprocket Uses 05T 8mm Chain Torque Rating: 1.1 Nm Bracket Hole Spacing (left to right): 95mm Bracket Hole spacing (front to back): 42mm Overall Length: 140mm Overall Width: 128mm Overall Height: 132mm Wire Length Including Connectors: 18 inches Razor Dirt QuadDirt Quad
- Width: 128mm Overall Height: 132mm Wire Length Including Connectors: 18 inches Razor Dirt QuadDirt Quad NOTE: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed. MY1016Z3 Motor 350 Watt 24 Volt Gear Reduction Drive 25 Tooth Sprocket Uses 05T 8mm Chain Torque Rating: 1.1 Nm Bracket Hole Spacing (left to right): 95mm Bracket Hole spacing (front to back): 42mm Overall Length: 140mm Overall Width: 128mm Overall Height: 132mm Wire Length Including Connectors: 18 inches Razor Dirt QuadDirt Quad
- Height: 132mm Wire Length Including Connectors: 18 inches Razor Dirt QuadDirt Quad NOTE: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed. MY1016Z3 Motor 350 Watt 24 Volt Gear Reduction Drive 25 Tooth Sprocket Uses 05T 8mm Chain Torque Rating: 1.1 Nm Bracket Hole Spacing (left to right): 95mm Bracket Hole spacing (front to back): 42mm Overall Length: 140mm Overall Width: 128mm Overall Height: 132mm Wire Length Including Connectors: 18 inches Razor Dirt QuadDirt Quad
Replacement Part Details
Use this part when the original component is worn, damaged, missing, or no longer working correctly. Many scooter parts can look similar but use different sizes, plugs, brackets, thread patterns, or mounting styles, so careful comparison before purchase is recommended.
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Fitment Notes: Universal Fit
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Additional information
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 7 × 7 × 6 in |
| Condition | New |
|---|

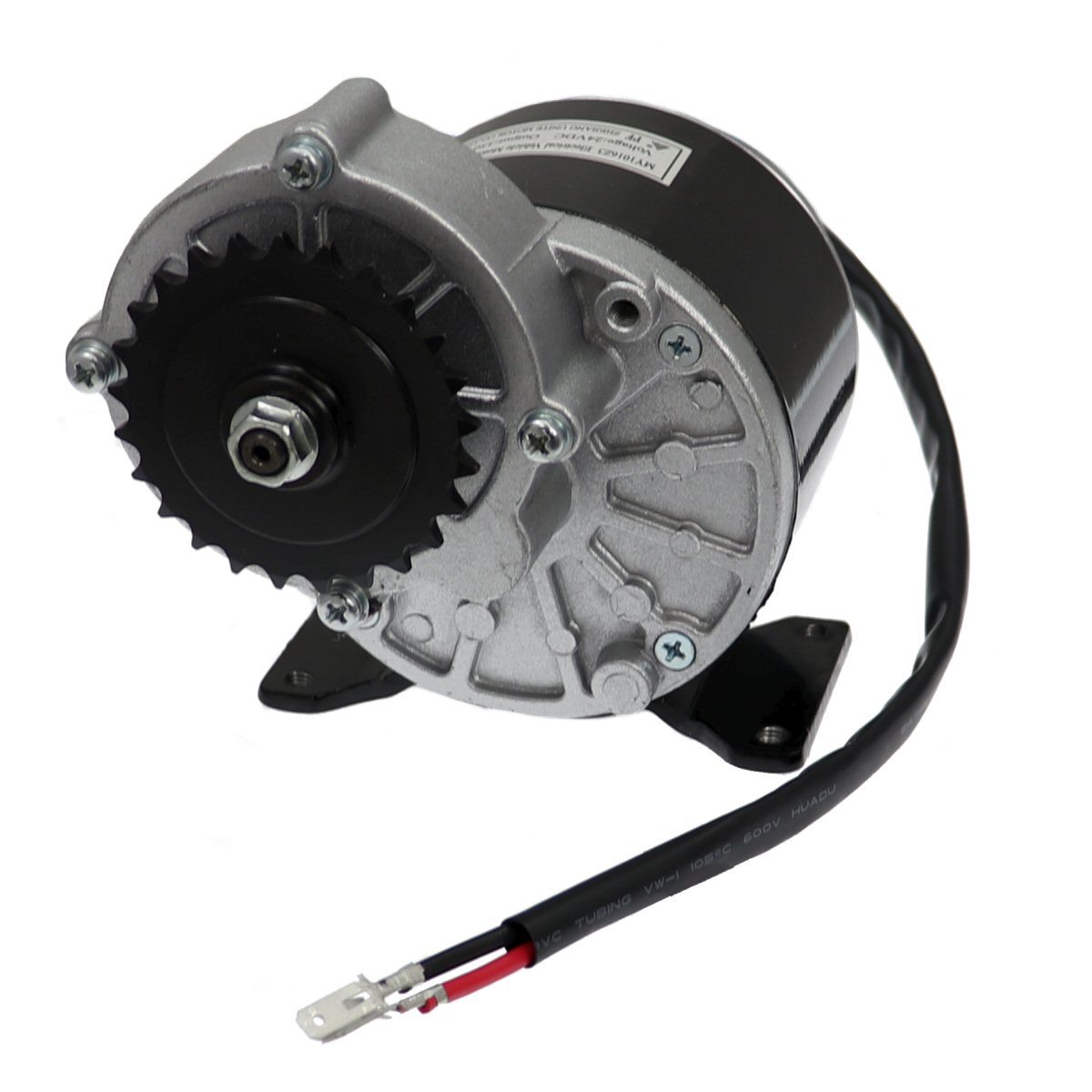

Restore the power to your Razor Dirt Quad with this 24V 350W MY1016Z3 gear-reduction electric motor by Universal Parts. Silver die-cast gear reduction housing with large drive sprocket, black mounting bracket foot, and two-wire lead (black/red) with spade connectors. Label reads: MY1016Z3 Electric Vehicle Motor, Voltage 24VDC, Output 350W, CE. Direct replacement for Razor OEM part W25143060030. Verify mounting bracket dimensions before ordering.
Installation note: Includes 18-inch wire leads with spade connectors. If your vehicle uses a different connector type, splice your existing harness onto the new motor leads. Ensure #25 chain tension and alignment are correct after installation to prevent premature sprocket wear.
- 24V 350W DC gear reduction motor
- Silver die-cast gear reduction housing with mounting screws
- 11-tooth sprocket for #25 chain (8mm pitch), pre-installed
- Black mounting bracket foot included
- 18-inch two-wire lead (black/red) with spade connectors
- Reversible polarity — clockwise or counterclockwise rotation
- Direct replacement for Razor OEM part W25143060030
- Fits Razor Dirt Quad versions 1–18+
- Model: MY1016Z3
- Voltage: 24V DC
- Output: 350W
- Sprocket: 11-tooth, #25 chain (8mm pitch)
- Bracket spacing (side-to-side): 95mm (approx. 3.75")
- Bracket spacing (front-to-back): 42mm (approx. 1.65")
- Dimensions: 140mm L x 128mm W x 132mm H
- Wire lead length: 18 inches
- Connector: Spade terminals
- Replaces: Razor part W25143060030
- Brand: Universal Parts / Zielung Unite Motor Co., Ltd
| Brand | Model | Versions |
|---|---|---|
| Razor | Dirt Quad | Versions 1–18+ |
