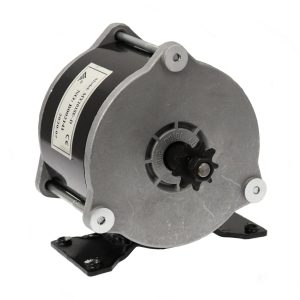

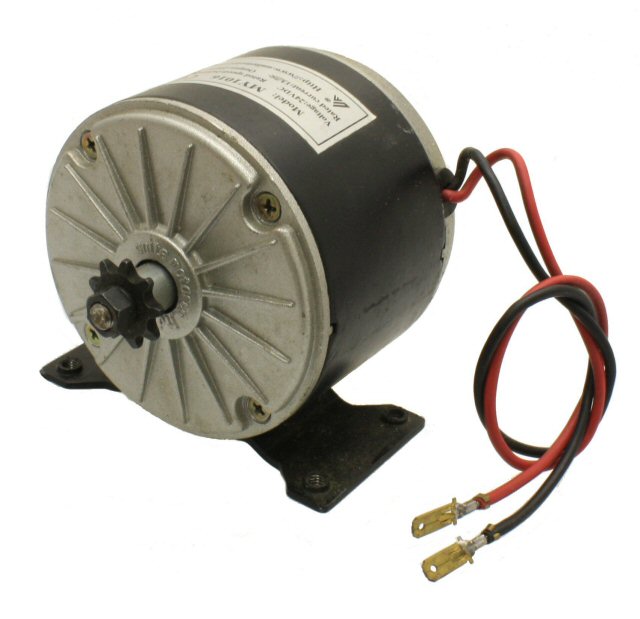

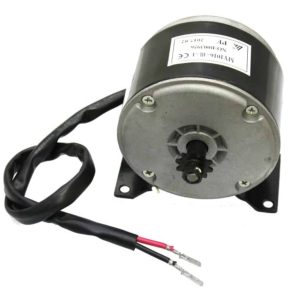

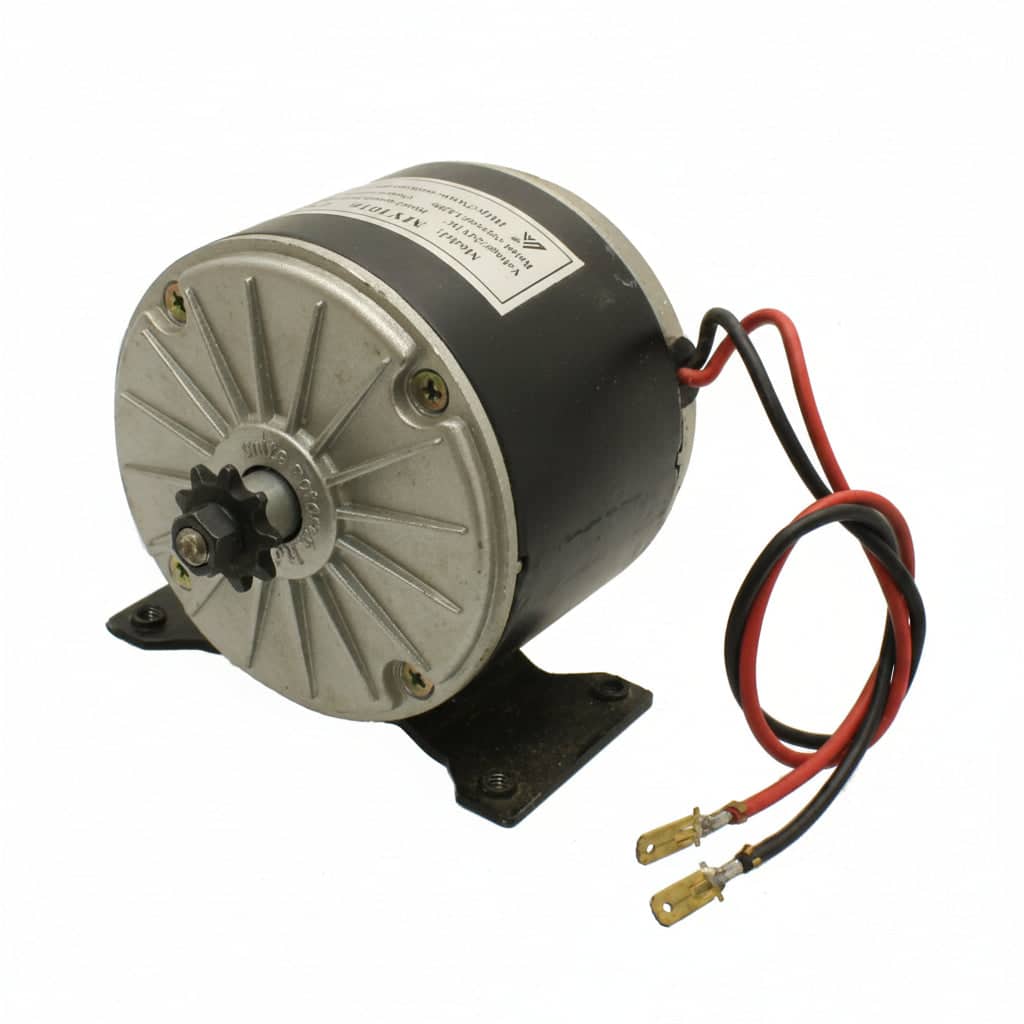

Universal Parts 24V, 250W MY1016 Electric Motor

Universal Parts 250w, chain drive electric scooter motor

SPECIFICATIONS/

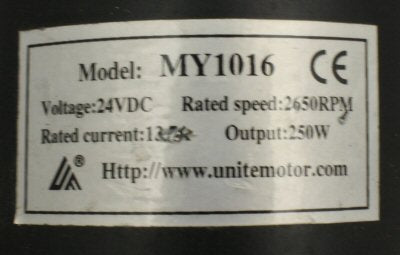

• MY1016 Motor
• 250 Watt
• 24 Volt
• 2650 RPM
• 9 Tooth Sprocket
• Shaft Length (from face to sprocket): ½ inch
• Bracket Hole Spacing (left to right): 95mm
• Bracket Hole spacing (front to back): 41mm
• Overall Length: 106mm
• Overall Width: 101mm
• Overall Height: 83mm
• Wire Length: 13 inches
