Uni UP-4182AST Dual Layer Pod Air Filter – 44mm Angled Clamp
Uni UP-4182AST Dual Layer Pod Air Filter – 44mm Angled Clamp
$34.24
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description

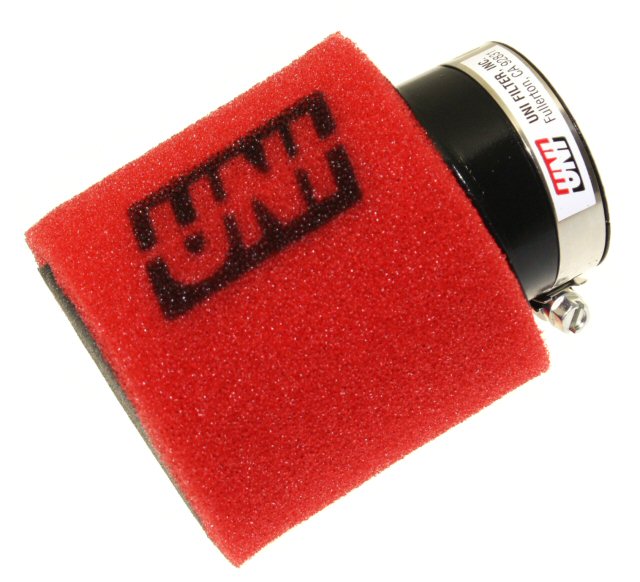

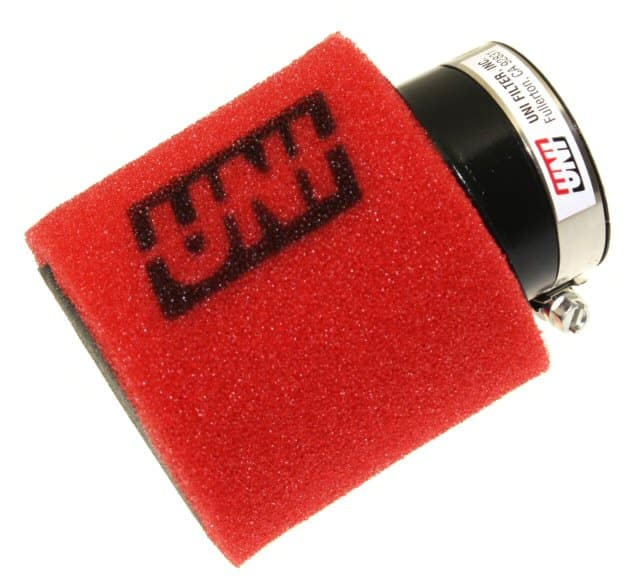

Uni Dual Layer Pod Air Filter: 44mm Angled Clamp-On
Key Details
- UP-4182AST
Specifications
- Length: 4 inches Made in U.S.A.
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 9 × 9 × 4 in |
| Condition | New |
|---|
Maximum Airflow: Uni Dual Layer Angled Pod Filter
Give your engine the breath of fresh air it needs with the Uni UP-4182AST Dual Layer Pod Filter. Engineered for high-performance applications, this 44mm clamp-on filter utilizes Uni’s legendary two-stage foam technology to provide superior filtration without sacrificing airflow. The 15-degree angled mount is specifically designed to clear frames and shock absorbers in tight engine compartments.
Technical Performance Features
- Two-Stage Filtration: Features a coarse outer layer to stop large debris and a fine-pore inner layer to trap microscopic dust particles, ensuring maximum engine protection.
- 15 ° Angled Connection: The offset mounting flange provides essential clearance for custom builds, preventing the filter from rubbing against the chassis or rear suspension.
- Washable & Reusable: Unlike paper filters, the Uni foam media can be easily cleaned, re-oiled, and re-used, making it a cost-effective long-term solution.
- Secure Clamp-On Mounting: Includes a heavy-duty stainless steel hose clamp for a vibration-resistant seal on carburetors with a 44mm (1.75") intake bell.
Fitment & Compatibility
This 44mm ID filter is a popular upgrade for mid-sized carburetors and custom intake manifolds, including:
| Component Type | Compatibility Note |
|---|---|
| Carburetor Intake | Fits 43mm – 45mm OD intake bells |
| Popular Carbs | Mikuni VM26, OKO 26-30mm, Keihin PE24-28 |
| Application | Pit Bikes, Custom Scooters, and ATVs |
Technical Specifications
- Inner Diameter (ID): 44mm (1.75")
- Outer Diameter (OD): 89mm (3.5")
- Filter Length: 4 inches
- Mounting Angle: 15 Degrees
- Origin: Made in the U.S.A.
Maintenance Note: To function correctly, foam filters must be oiled before installation. We recommend using Uni Foam Filter Oil to ensure the fine inner layer effectively traps dust and silt.
Part Number: UP-4182AST
Manufacturer: Uni Filter
NOTICE: This product is intended for closed-course competition use only and is not intended for use on public roads or land.
Uni Filter dual layer pod air filter with 44mm inner diameter angled connection.Please see our
- Item Number: UP-4182AST
- Angle: 15 Degrees
- Inner Diameter:(44mm)
- Outer Diameter:(89mm)
- Length: 4 inches
- Made in U.S.A.
