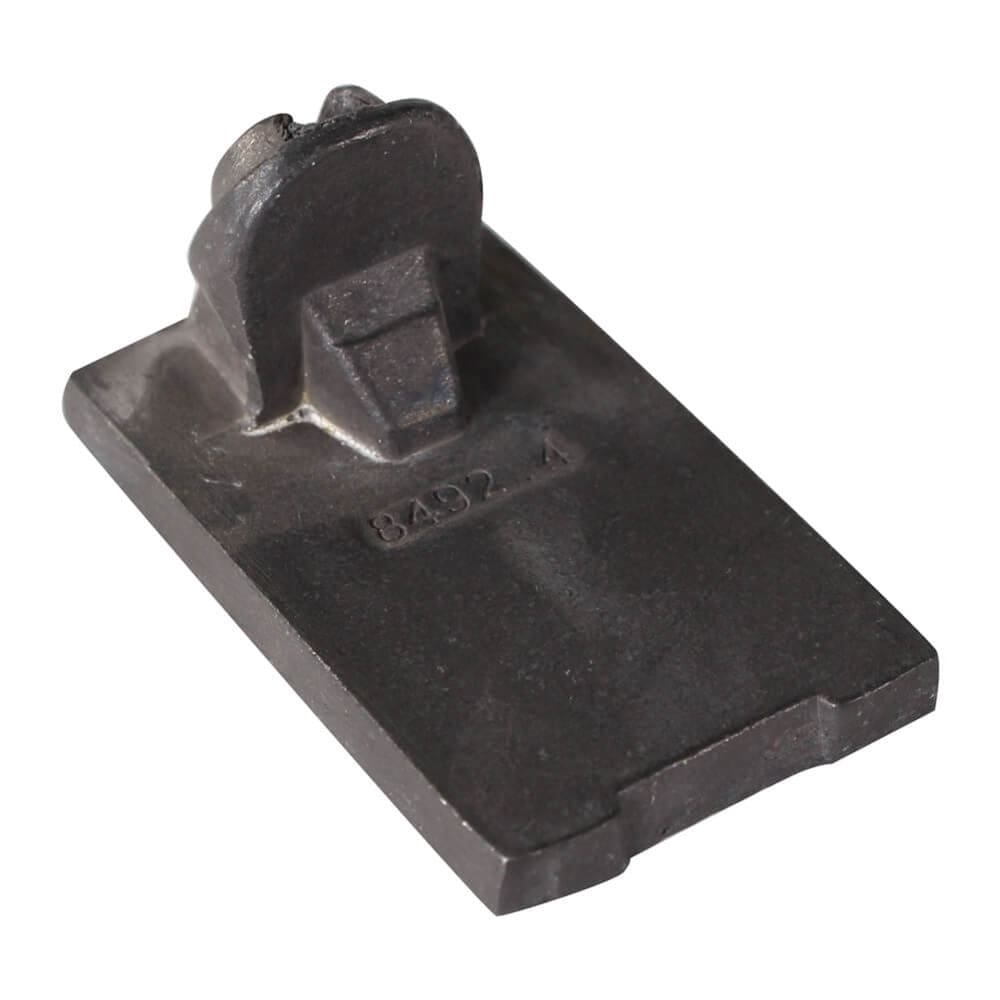

Throttle Slide(Reprod,8492.4)24/24
Throttle Slide(Reprod,8492.4)24/24
$25.40
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Throttle Slide(Reprod,8492.4)24/24
Replacement Part Details
Use this part when the original component is worn, damaged, missing, or no longer working correctly. Many scooter parts can look similar but use different sizes, plugs, brackets, thread patterns, or mounting styles, so careful comparison before purchase is recommended.
Additional information
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 2 × 1 × 0.2 in |
The throttle slide limits the flow of air to the engine. Its' degree of opening is determined by turning the throttle grip. The further it is opened the more air can flow in. Some throttle slides have air pockets on the top side and cut sections (so-called 'cutaways') on the underside. These add additional air to the fuel mixture and make it leaner as a result. The slides with the flat underside do not add any additional air and are therefore ideal for compensating a leaner middle range. To be able to comply with the required emissions standards for the Genuine Stella 2T and newer (read '04-on PX, the SI carburetors that are currently available are fitted with a throttle slide with 2 additional air pockets. This leans the mixture such that partial load pre-detonation and piston jams, or soft-seizing, can occur on tuned engines. The solution to this problem is to replace the throttle slide with a thicker throttle valve without any air pockets (e.g. 20/20 throttle slide 6823.4, part #123486). Scooterworks throttle slides are also available in the following versions:
#132370 (Dell'orto Part) 6823.1 Slide For 20/15,20/17 & 20/20 applications.
Features: Cutaway on bottom/Lean or Stock
Found on: Vespa VNB, VBB, VNL, VBC, VLB, VNX, VLX
#150046 (Reproduction) 6823.6 Slide For 20/15, 20/17 & 20/20 applications.
Features: Cutaway on bottom/Leanest or Stock
Found on: USA, PR & AUS market P125X(VNX)
#123486 (Dell'orto Part) 6823.4 Slide For 20/20 applications.
Features: Flat Bottom/Stock or Tuned
Found on: VNL2T(GTR), VNL3T(TS), VLB(Sprint & Sprint Veloce), VSD(Rally 180), VNX(P125X), VLX(P150X)
#183140 (Reproduction) 8492.4 Slide For 24/24 applications.
Features: Cutaway on bottom/Lean or Stock
Found on: VSX(P200E & PX200E)
#167059 (Dell'orto Part) 8492.1 Slide For 24/24 applications.
Features: Air Pockets on top, Flat Bottom/Stock or Tuned
Found on: VSE(Rally 200), VSX(P200E & PX200E)
