NCY Stator Assembly (6 Coil, 5 Wire); GY6
NCY 6-Coil Stator Assembly (5-Wire, AC) – GY6 125-232cc
$56.19
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
NCY 6-Coil Stator Assembly (5-Wire, AC) – GY6 125-232cc
Replacement Part Details
Use this part when the original component is worn, damaged, missing, or no longer working correctly. Many scooter parts can look similar but use different sizes, plugs, brackets, thread patterns, or mounting styles, so careful comparison before purchase is recommended.
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Engine Size: GY6
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Common Fitment Questions
Q: Is this for GY6 scooters?
A: This SKU is listed with GY6 engine-size fitment. Confirm exact model, year, and part style before ordering.
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 5.5 × 5.5 × 5 in |

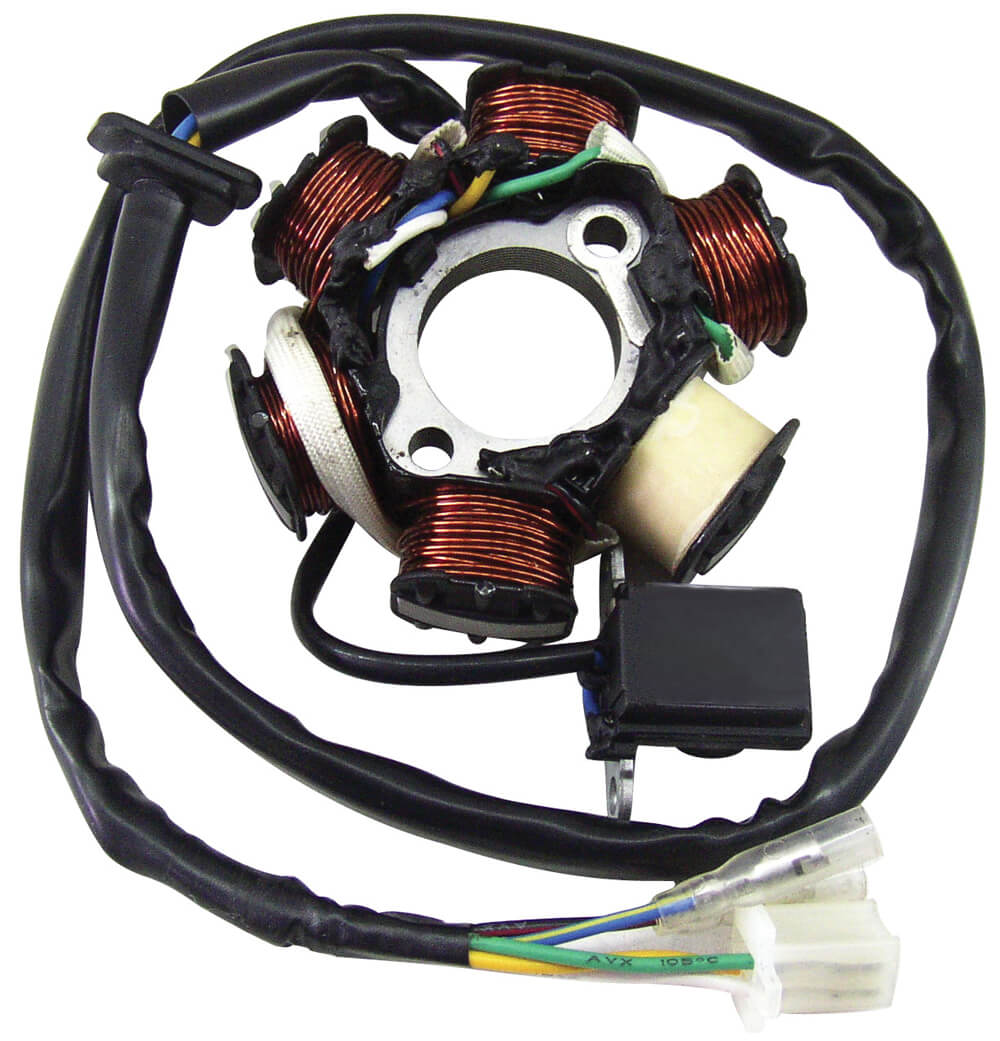

Restore your scooter's charging system and ignition spark with the NCY 6-Coil Stator Assembly (SKU 0900-1007). Six copper-wound poles on a silver stamped steel lamination plate with two 2-bolt mounting holes, a separate black pickup coil (pulse generator) module, and a 20" multi-color wire harness (blue/yellow/green/white) terminating in a white 3-pin female connector plus two individual female bullet connectors. Engineered for GY6-based 125cc–232cc AC ignition engines. Manufactured by NCY in Taiwan (ISO 9001 certified).
Before ordering: Confirm your vehicle uses an AC ignition system with a 3-pin female connector and two individual female bullet-connector wires.
Technical Performance Features
- Optimized Charging: 6-pole coil configuration provides stable AC current for battery maintenance and lighting.
- High-Temp Windings: Premium copper wire with high-grade insulation resists stator burn-out during extended or high-heat riding.
- Precision Timing: Pre-installed pickup coil (pulse generator) for accurate ignition timing and smooth idle.
- Plug-and-Play Wiring: Standard GY6 harness — 3-pin female connector + 2 individual female bullet connectors.
Technical Specifications
- SKU: 0900-1007
- Brand: NCY (ISO 9001, Taiwan)
- Configuration: 6 coils / 5 wires
- Ignition Type: AC only
- Mounting: 2-bolt, 41mm spacing, 6mm hole diameter
- Wire Length: 20" (51cm)
- Connector: White 3-pin female + 2 individual female bullet connectors
- Dimensions (packaged): 5.5" L x 5.5" W x 5" H | Weight: 1.1 lbs
Fitment & Identification Guide
Direct fit for AC-ignition A-Block and B-Block GY6-powered vehicles. If your engine code includes "QM" or "FM" it is compatible.
- Genuine Scooter Co.: Buddy 125, Buddy 150, Buddy 170i, Blur 150
- TaoTao: Powermax 150, Lancer 150, EVO 150, Quantum 150, VIP 150
- Wolf Brand Scooters: Lucky 150, Jet 150, Rugby 150, V-150, Islander 150
- Ice Bear: Heritage 150, Chelsea 150, Vision 150, Pajazzo 150
- Bintelli: Havoc 150, Scorch 150, Beast 150
- Lance / ZNEN: Cali Classic 125/150, Vintage 150, Interceptor 150
- SYM (Sanyang): Fiddle II/III 150, Symphony 150, Jet 4 150
- Lance: PCH 150, Cabo 150
- KYMCO: Movie 150, Super 8 150
- Go-Karts / ATVs: Hammerhead 150, Trailmaster 150, Yerf-Dog 150, American Sportworks
- Performance: Custom Polaris-style RZR 170 clones, Taida 232cc builds
Compatible Engine Codes
| Engine Code | Engine Code | Engine Code | Engine Code |
|---|---|---|---|
| 157QMJ | 161QMK | 152QMI | 1P61QMK |
| YN1P57QMJ | 1P52FMI | 154FMI | JJ157QMJ |
| 1P57QMJ | BN157QMJ | BN161QMK-A | Other QMJ, QMK, QMI |
