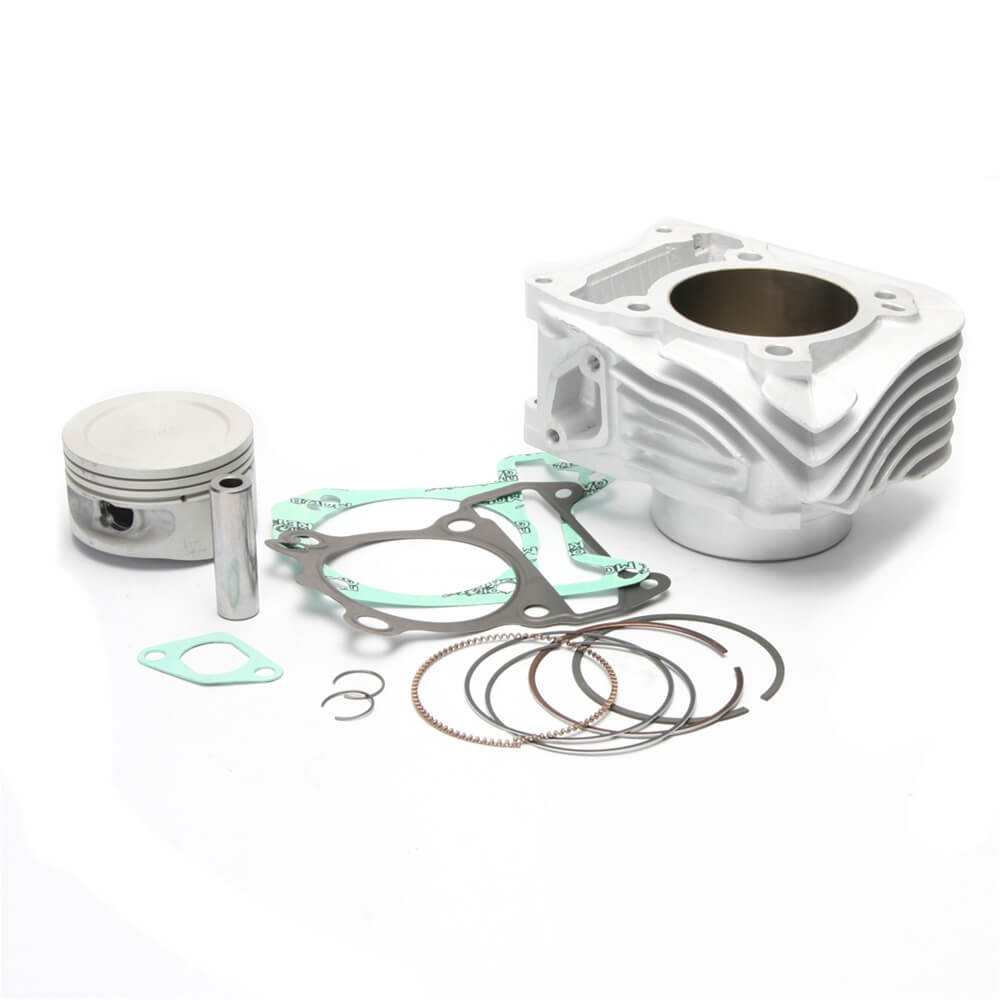

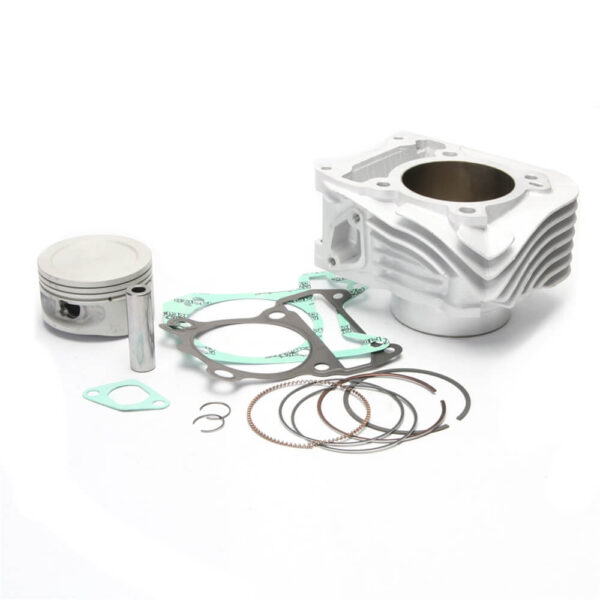

Malossi Cylinder Kit (190cc, 71mm); Vespa ET4, LEADER Engine

Malossi cylinder kit fits ET4 150, LX150, and other scooters with the Piaggio Leader 125-150cc engine.

TECHNICAL FEATURES:

Cylinder
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.

Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control. - Lightened and reinforced.
- Upgraded heat exchange surfaces.

Piston rings
- Special rings with high sliding ease and very high mechanical resistance.
- I° ring compression in nitrided and chromium steel.
- II° special cast iron ring.
- Three-piece scraper ring made of chromium-plated special steel

Replacement pistons are available here.

Replacement rings are available here.

Not legal for use in California on pollution controlled vehicles. Check local laws before installing.
