Green Line 84V 10A Fast Charger – LP20 5-Pin Male Plug
Green Line 84V 10A Fast Charger – LP20 5-Pin Male Plug
$215.52
7 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Green Line 84V 10A Fast Charger – LP20 5-Pin Male Plug
Specifications
- Connector style: LP20 2-Pin (Male)?? DANGER: For use with 72V Lithium-ion batteries ONLY. Using this on 48V, 52V, or 60V systems will result in battery failure, fire, or explosion. Always verify your battery is a 20-series (20S) pack before connecting.
Replacement Part Details
Use this part when the original component is worn, damaged, missing, or no longer working correctly. Many scooter parts can look similar but use different sizes, plugs, brackets, thread patterns, or mounting styles, so careful comparison before purchase is recommended.
Additional information
| Weight | 5.2 lbs |
|---|---|
| Dimensions | 10 × 7 × 4 in |

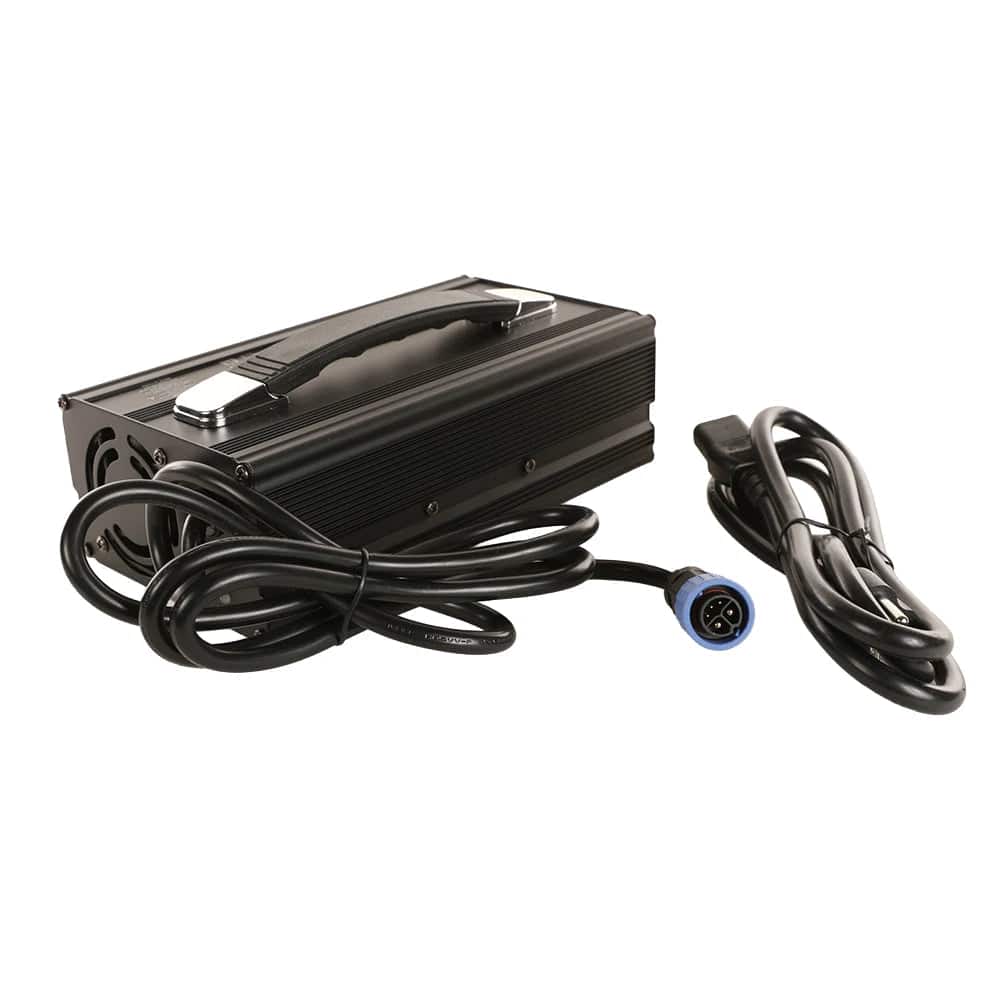

Charge your 60V lithium-ion system faster with the Green Line 67.2V 10A UL Listed Premium Fast Charger. This heavy-duty unit delivers 10A output to 16S (60V nominal) Li-ion battery packs via the blue LP20 5-pin locking connector (2 large power pins + 3 smaller signal pins). The ribbed aluminum housing and internal cooling fan dissipate heat during high-current charging sessions, and the integrated carry handle makes it easy to move between vehicles. LED indicator shows red while charging and green when fully charged. Includes a separate IEC AC power cord. ETL Listed (Intertek), conforms to UL STD. 62368-1 and CSA STD. C22.2 No. 62368-1.
Compatibility Check: This charger is for 60V nominal (16S) Lithium-ion battery packs only. Output voltage is 67.2V DC at peak charge. Do not use with 72V (20S), 48V, or 52V systems — verify your battery cell count before connecting.
Key Features
- 67.2V 10A Output: High-current fast charging for 60V nominal (16S) Li-ion packs.
- ETL/UL Listed: Intertek certified, conforms to UL 62368-1 and CSA C22.2 No. 62368-1. Overcharge, overheat, and short-circuit protection.
- Blue LP20 5-Pin Locking Connector: 2 large power pins + 3 smaller signal/ground pins. Secure aviation-style locking collar.
- LED Charge Indicator: Red = charging, Green = fully charged.
- Ribbed Aluminum Housing: Passive cooling fins and internal cooling fan for thermal management during high-current charging.
- Integrated Carry Handle: Top-mounted handle for transport and storage.
- Universal AC Input: 100–240V~ 50/60Hz — compatible with US and international AC power. IEC C14 inlet with separate power cord included.
Technical Specifications
- Model: XT80V672A100
- Output Voltage: 67.2V DC (peak charge)
- Compatible Battery: 60V nominal (16S) Lithium-ion
- Output Current: 10A
- AC Input: 100–240V~ 50/60Hz, 10A (IEC C14, cord included)
- Connector: LP20 5-Pin Male (blue) — 2 large power + 3 small signal pins
- LED Indicator: Red (charging) / Green (fully charged)
- Certifications: ETL Listed (Intertek 5014530), UL STD. 62368-1, CSA C22.2 No. 62368-1, FCC, CE
- SKU: 0900-6005
Compatible Models
- Talaria Sting MX3 (60V stock battery, LP20 5-pin port)
- Talaria Sting R MX4 (60V stock battery, LP20 5-pin port)
- Sur-Ron Light Bee X (60V, LP20 5-pin port)
Verify your vehicle’s battery nominal voltage (60V / 16S) and charging port type (LP20 5-pin) before ordering.
