Electric Motor for Razor E100/E125/E150 (24V, 100W)
Electric Motor for Razor E100/E125/E150 (24V, 100W)
$55.53
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
DESCRIPTION: Universal Parts 100 watt chain driven motor for Razor E/90/E100/E125/E150/E175 electric scooters. This is for the CHAIN-DRIVEN Razor E90 (version 1+), E100/E125 (version 5+), E150/E175 (version 1+) and eSpark Electric Scooters. This E100 motor will not work on Razor E100 scooters that are belt-driven.Power Output/Voltage: 100W/24VChain Drive: 9 Tooth, 25H SprocketWire Length: 10 inches2-Pin ConnectorOuter Diameter: 68mmOverall Length (including shaft): 123mmMounting Hole Thread Size: M5x.08Razor E100, Razor E125, Razor E150, Razor eSparkE-100/E-125,E-150,E-175,eSpark
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Fitment Notes: Electric, Universal Fit
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Additional information
| Weight | 2.7 lbs |
|---|---|
| Dimensions | 6 × 6 × 4 in |
| Condition | New |
|---|

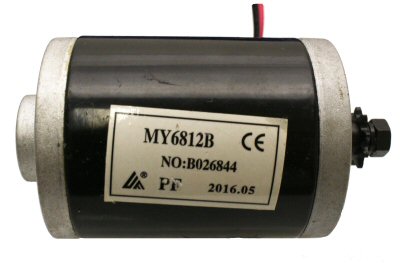

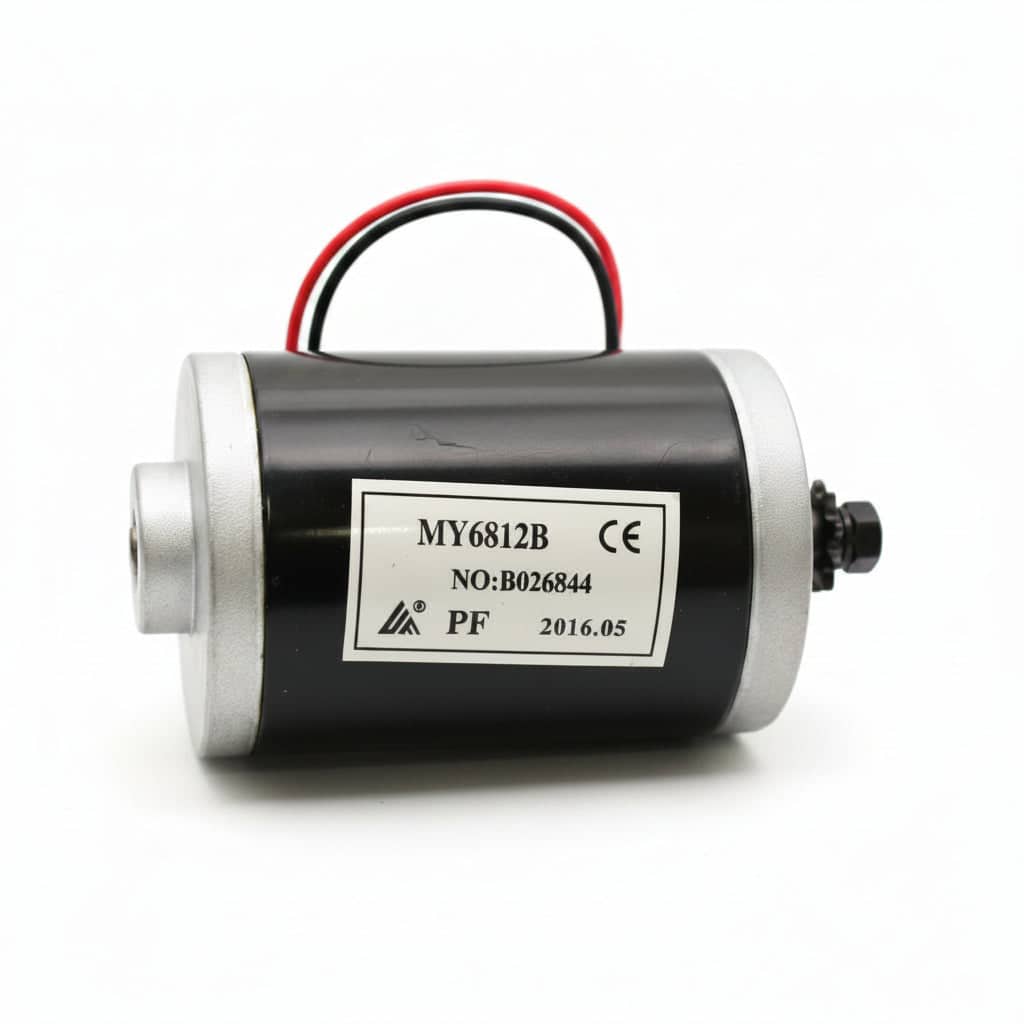

MY6812 / MY6812B
Restore the factory speed and torque of your child's favorite electric scooter with this direct drop-in 24V 100W Replacement Electric Motor from Universal Parts. Engineered specifically for select Razor E100-series chain-driven frames, this brushed motor delivers reliable, efficient power transfer and arrives ready to install — no specialized tools required.
Key Features
- Pre-Installed 9-Tooth Drive Sprocket: Factory-pressed for 25H chain pitch — no gear puller needed.
- Heavy-Duty Brushed Design: Consistent low-end torque for smooth, safe acceleration from a standstill.
- Plug-and-Play Wiring: 10-inch wire lead with a pre-wired 2-pin male quick-disconnect connector for instant connection to the stock control module.
- Durable Steel Housing: Rugged metal enclosure protects inner copper windings from debris, dust, and light moisture.
Technical Specifications
- Voltage / Power Output: 24V DC / 100 Watts
- Drive Gear: 9-Tooth, 25H Chain Pitch Sprocket
- Wire Lead Length: 10 inches
- Connector: 2-Pin Male Quick-Disconnect
- Motor Outer Diameter: 68mm
- Overall Length (incl. drive shaft): 123mm
- Mounting Thread Size: M5 x 0.08
Vehicle Compatibility
This motor is designed exclusively for chain-driven Razor scooters. Check the white barcode sticker on your frame for the version number before ordering.
| Model | Compatible Versions | Drive System |
|---|---|---|
| Razor E100 & E125 | Version 5+ | Chain-Driven Only |
| Razor E150 & E175 | Version 1+ | Chain-Driven Only |
| Razor eSpark & E90 | Version 1+ | Chain-Driven Only |
Not compatible with belt-driven models (typically Razor E100/E125 Versions 1–4 with a rubber drive belt and smooth pulley). Look under the rear deck shroud to confirm a chain is present before ordering.
Installation Tips
- Apply a small drop of blue threadlocker (e.g., Loctite 242) to the mounting bolts — vibration can loosen them over time.
- After installation, verify the chain has approximately 1/4" of vertical slack. Over-tightening causes friction, reduces top speed, and can overheat the motor.
