Brake Lever Assembly Razor MX500/MX650/ SX500/RSF650/PM-LH
Brake Lever Assembly Razor MX500/MX650/ SX500/RSF650/PM-LH
$24.35
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Brake Lever Assembly Razor MX500/MX650/ SX500/RSF650/PM-LH
Replacement Part Details
Use this part when the original component is worn, damaged, missing, or no longer working correctly. Many scooter parts can look similar but use different sizes, plugs, brackets, thread patterns, or mounting styles, so careful comparison before purchase is recommended.
Additional information
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 8 × 6 × 3 in |
| Condition | New |
|---|

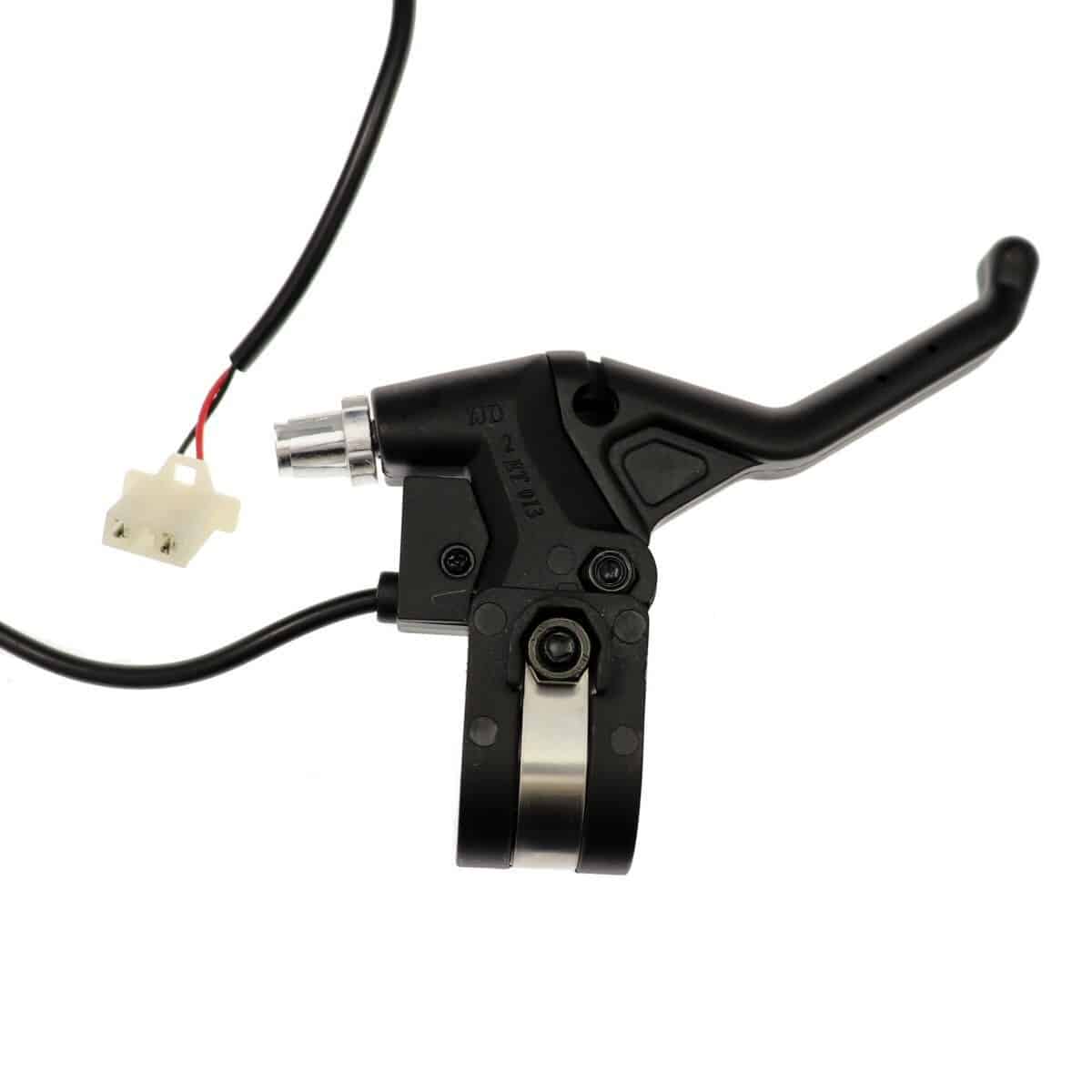

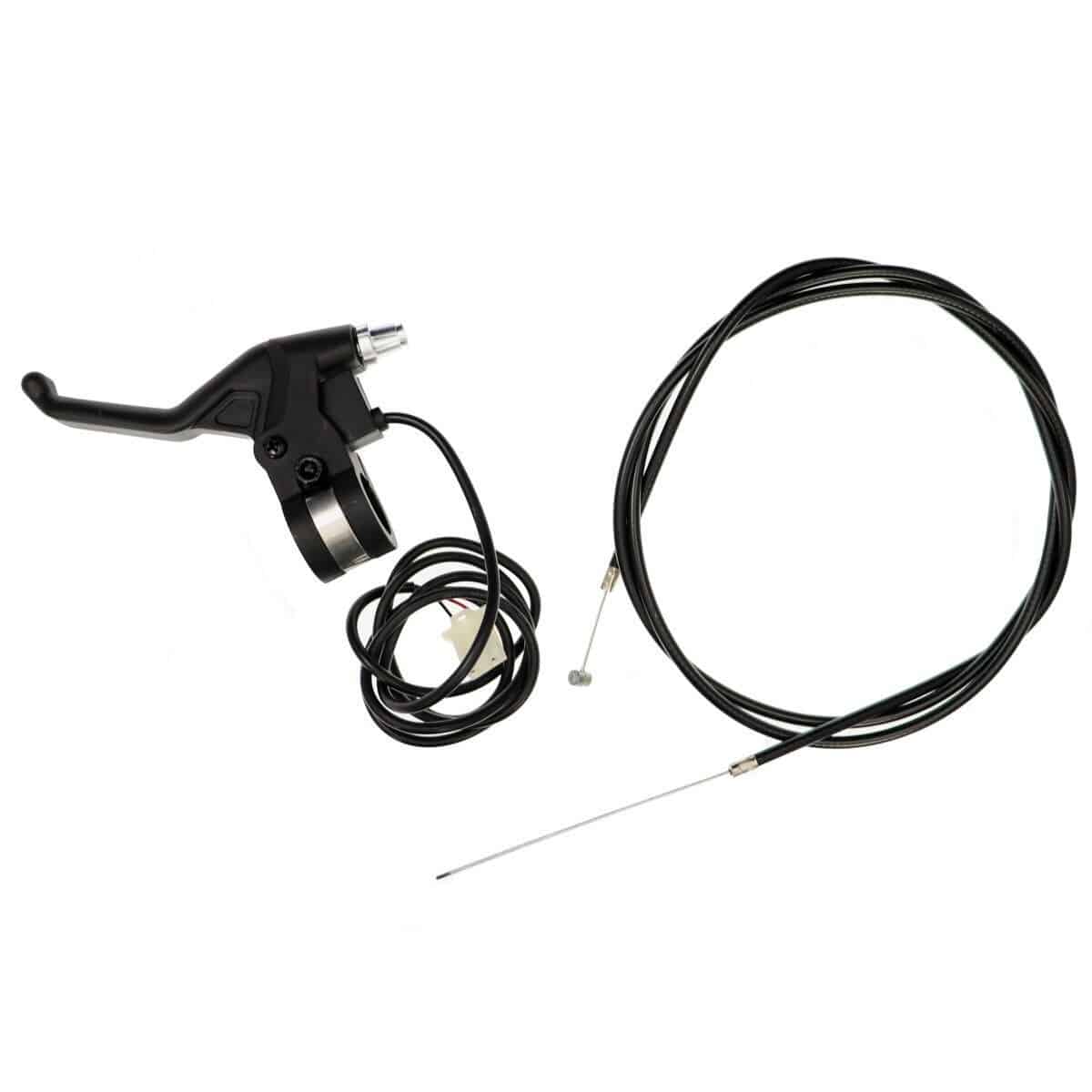

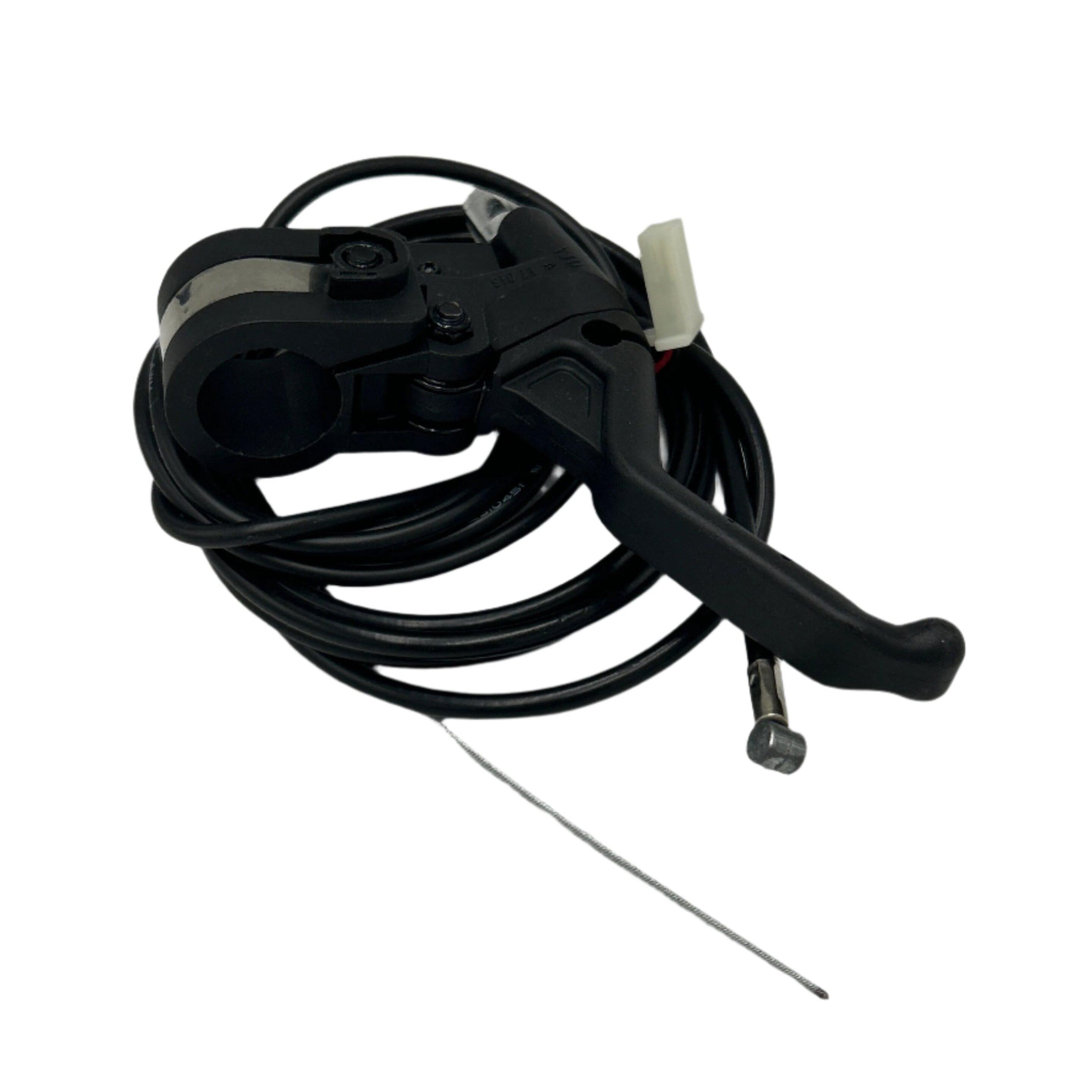

Restore safe, responsive braking to your Razor electric dirt bike or scooter with this complete left-side brake lever assembly by Universal Parts. Pre-assembled and ready to install, this unit includes the brake lever, housing, factory-fitted brake cable, and integrated electric motor cut-off safety switch — everything needed for a direct replacement. OEM Part# W15128190011. SKU: 119-271.
Installation note: This assembly includes the electric cut-off switch. If your existing wiring uses a different connector style, splice the wires from your old switch to this new unit for seamless integration with your bike's wiring harness.
- Complete pre-assembled unit: lever, housing, brake cable, and motor cut-off switch included
- Built-in electric cut-off switch cuts motor power immediately upon braking
- Factory-spec cable lengths — no trimming or modification required
- High-impact housing and lever for off-road and street durability
- Direct replacement for Razor MX500, MX650, SX500, RSF650, and Pocket Mod
- Side: Left (standard rear brake on Razor MX/RSF models)
- Brake cable sleeve length: 55 inches
- Brake cable overall length: 61 inches
- Wire length: 42 inches
- OEM part number: W15128190011
- SKU: 119-271
| Series | Compatible Models |
|---|---|
| Dirt Bikes / Motorcycles | Razor MX500, MX650, SX500 |
| Sport & Street | Razor RSF650 |
| Pocket Mod Series | Razor Pocket Mod (Bellezza & variants requiring left-side brake) |
