Blue Line Stator Type 2 (11 Coil, 5 Wire); GY6
Blue Line Stator Type 2 (11 Coil, 5 Wire); GY6
$50.54
10 in stock
*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.
Product Details
Description
Blue Line Stator Type 2 (11 Coil, 5 Wire); GY6
Key Details
- Original Parts For Scooters SKU: 164-290
Specifications
- Length: 23 inches Number of Coils: 11 Plug Style: 4-pin, female with two separate single pins Plug Colors 3 Yellow, 1 Green, 1 Blue, 1 Red/Black Compatibility:157QMJ-based 125cc / 150cc / 169cc engines with the following engine codes: 157QMJ 161QMK 152QMI 1P61QMK YN1P57QMJ 1P52FMI 154FMI JJ157QMJ 1P57QMJ BN157QMJ BN161QMK-A Other QMJ, QMK, and QMI models Don’t see your engine listed? If the engine code includes QM or FM, this product is compatible with your vehicle.About Blue Line: Blue Line offers OEM equivalent replacement parts for on-road scooters. Blue Line parts are a direct-fit replacement when OEM parts are unavailable or overly expensive for your scooter. Since 2018, Blue Line has provided quality parts at great prices.nnSPECIFICATIONS: AC Diameter: 88mm Width: 30mm Bolt Hole Spacing: 41mm Bolt Hole Diameter: 6mm Coil Wire Length: 23 inches Number of Coils: 11 Plug Style: 4-pin, female with two separate single pins Plug Colors 3 Yellow, 1 Green, 1 Blue, 1 Red/BlacknnCOMPATIBILITY: 157QMJ-based 125cc / 150cc / 169cc engines with the following engine codes: 157QMJ 161QMK 152QMI 1P61QMK YN1P57QMJ 1P52FMI 154FMI JJ157QMJ 1P57QMJ BN157QMJ BN161QMK-A Other QMJ, QMK, and QMI models Don’t see your engine listed? If the engine code includes “QM” or “FM”, this product is compatible with your vehicle.About Blue Line: Blue Line offers OEM equivalent replacement parts for on-road scooters. Blue Line parts are a direct-fit replacement when OEM parts are unavailable or overly expensive for your scooter. Since 2018, Blue Line has provided quality parts at great prices.nn157QMJ ENGINES: 157QMJ-based 125cc / 150cc / 169cc engines with the following engine codes: 157QMJ 161QMK 152QMI 1P61QMK YN1P57QMJ 1P52FMI 154FMI JJ157QMJ 1P57QMJ BN157QMJ BN161QMK-A Other QMJ, QMK, and QMI models Don’t see your engine listed? If the engine code includes “QM” or “FM”, this product is compatible with your vehicle.About Blue Line: Blue Line offers OEM equivalent replacement parts for on-road scooters. Blue Line parts are a direct-fit replacement when OEM parts are unavailable or overly expensive for your scooter. Since 2018, Blue Line has provided quality parts at great prices.nnMODEL FITMENTS: Amstar, Amigo, Ascend, Baotian, Bashan, Blade, Boom, Chicago Scooter Company, Dongfang, Roketa, Baoti
Compatibility / Fitment
Use the fitment details below to confirm this part matches your scooter before ordering.
- Engine Size: 125cc, 150cc, GY6
- Engine Code: 1P52FMI, 1P57QMJ, 1P61QMK, 157QMJ, 161QMK, BN157QMJ, BN161QMK, JJ157QMJ, NN157QMJ
- Fitment Notes: OEM
Fitment Guide: This compatibility information is based on manufacturer and supplier data. Listed models are common known applications and may not include every compatible scooter. If your scooter has multiple versions or production changes, confirm the correct match before ordering. Check photos, measurements, original part numbers, engine code, model, and related fitment information whenever possible.
Common Fitment Questions
Q: Will this fit a 1P52FMI engine?
A: This SKU is listed as compatible with 1P52FMI engine-code fitment. Always compare your original part and scooter details before ordering.
Q: Is this for 125cc scooters?
A: This SKU is listed with 125cc engine-size fitment. Confirm exact model, year, and part style before ordering.
Additional information
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 4 × 4 × 2.5 in |
| Condition | New |
|---|
Blue Line's 11-coil Type 2 stator is a significant upgrade over standard 6 or 8-pole GY6 stators. With 11 magnetic poles and 11 wound coils, it generates usable AC charging output at lower RPM, produces more total wattage, and delivers a smoother, more consistent charge to your battery and electronics. It's the go-to choice for GY6-swapped Honda Ruckus builds and any accessorized scooter running lighting kits, LED upgrades, USB power, or other added electrical draws. Flywheel not included — if you need the version with flywheel, see SKU 0900-1098.Â
Why upgrade to an 11-coil stator?
- More output at low RPM — generates usable charge at idle and low city speeds where 6/8-pole stators fall short
- Higher total wattage — handles the electrical load of lighting kits, LED conversions, USB chargers, heated grips, and other accessories without straining the system
- Cleaner, more stable charge — denser pole arrangement produces a smoother AC waveform for less voltage ripple and less stress on the battery and electronics
Key Features:
- Blue Line 11-coil AC stator for GY6 125/150/169cc — Type 2, 5-wire (SKU: 0900-1112 | MPN: 164-290)

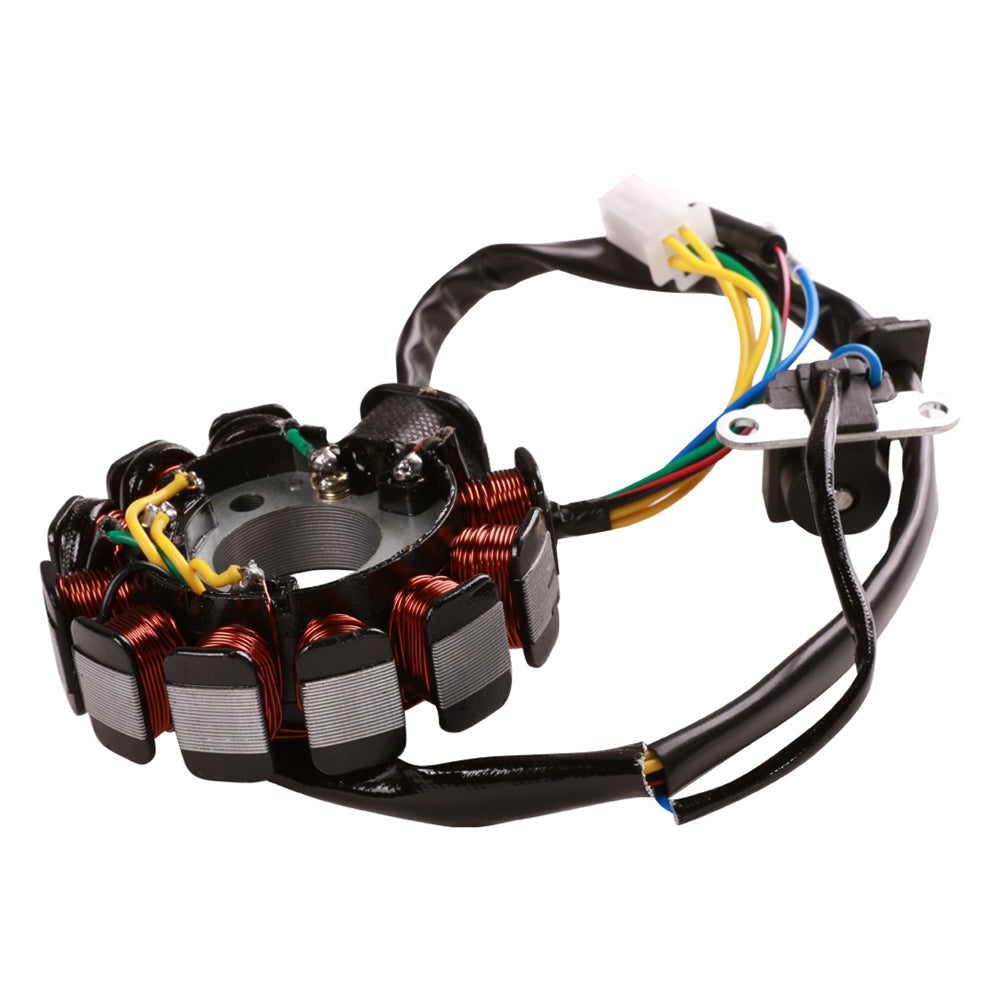

- Round bare metal stator plate with 11 wound copper coil poles and laminated pole shoes | black wire loom | 23" wire length
- 4-pin female connector plus two separate single-pin connectors | wire colors: 3× yellow, 1× green, 1× blue, 1× red/black
- AC output | 88mm diameter | 30mm width | 41mm bolt hole spacing | 6mm bolt holes
- Flywheel not included — flywheel version available separately (SKU 0900-1098)
- Brand: Blue Line
- SKU: 0900-1112 | MPN: 164-290
- Output: AC
- Coils: 11
- Wires: 5 (6-wire harness)
- Diameter: 88mm
- Width: 30mm
- Bolt hole spacing: 41mm
- Bolt hole diameter: 6mm
- Coil wire length: 23"
- Plug: 4-pin female + two single pins
- Wire colors: 3× yellow, 1× green, 1× blue, 1× red/black
- Flywheel: Not included
| Compatible Engine Codes | |||
|---|---|---|---|
| 157QMJ | 161QMK | 152QMI | 1P61QMK |
| YN1P57QMJ | 1P52FMI | 154FMI | JJ157QMJ |
| 1P57QMJ | BN157QMJ | BN161QMK-A | Other QMJ, QMK, QMI |
Don't see your engine code? If it includes "QM" or "FM", this stator is compatible with your vehicle.
About Blue Line: Blue Line offers OEM-equivalent replacement parts for on-road scooters — direct-fit replacements when OEM parts are unavailable or overly expensive. Quality parts at great prices since 2018.
