OKO Carburetors – PWK with Angled Top

OKO Carburetors – PWK with Angled Top

$91.52$93.43
Includes Super Fast, Free Shipping*

SKU: 114-75 Category: Brand:

*Note: Free shipping to U.S. mainland (excludes AK, HI, and territories)
Orders placed by 1pm EST on weekdays ship the same day.

Product Details

OKO High Performance PWK Carburetors with an Angled Top for Applications Where Clearance is an Issue. Choose Sizes From Drop Down Menu. This ModelHas a Vacuum Fitting But Does Not Have The Power Jet. Please See Related Items For The PWK With Power Jet. The main jet and idle/pilot jet sizes are as follows: 19mm Carb: main 95, idle 42
21mm Carb: main 103, idle 42
24mm Carb: main 107, idle 46
26mm Carb: main 112, idle 46
28mm Carb: main 130, idle 48
30mm Carb: main 138, idle 48

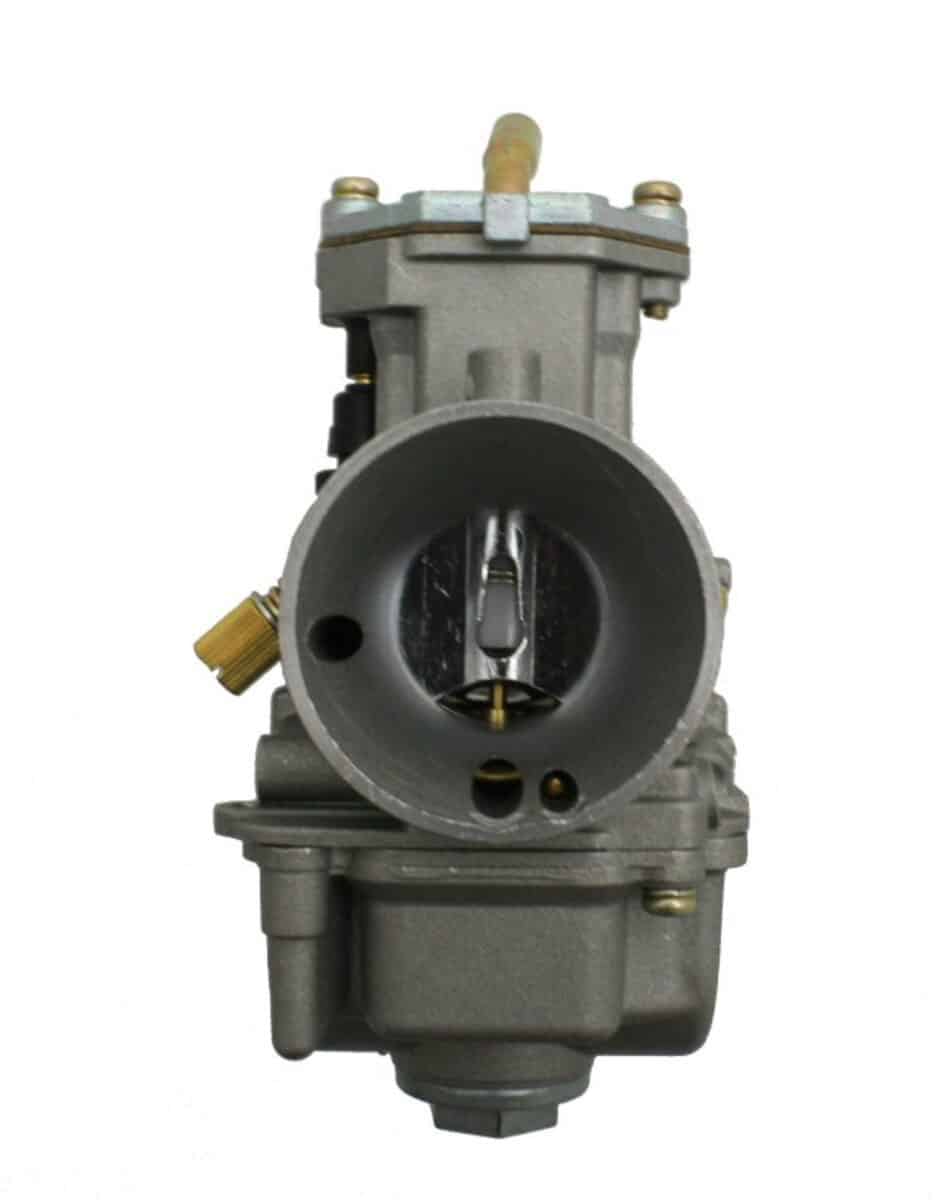

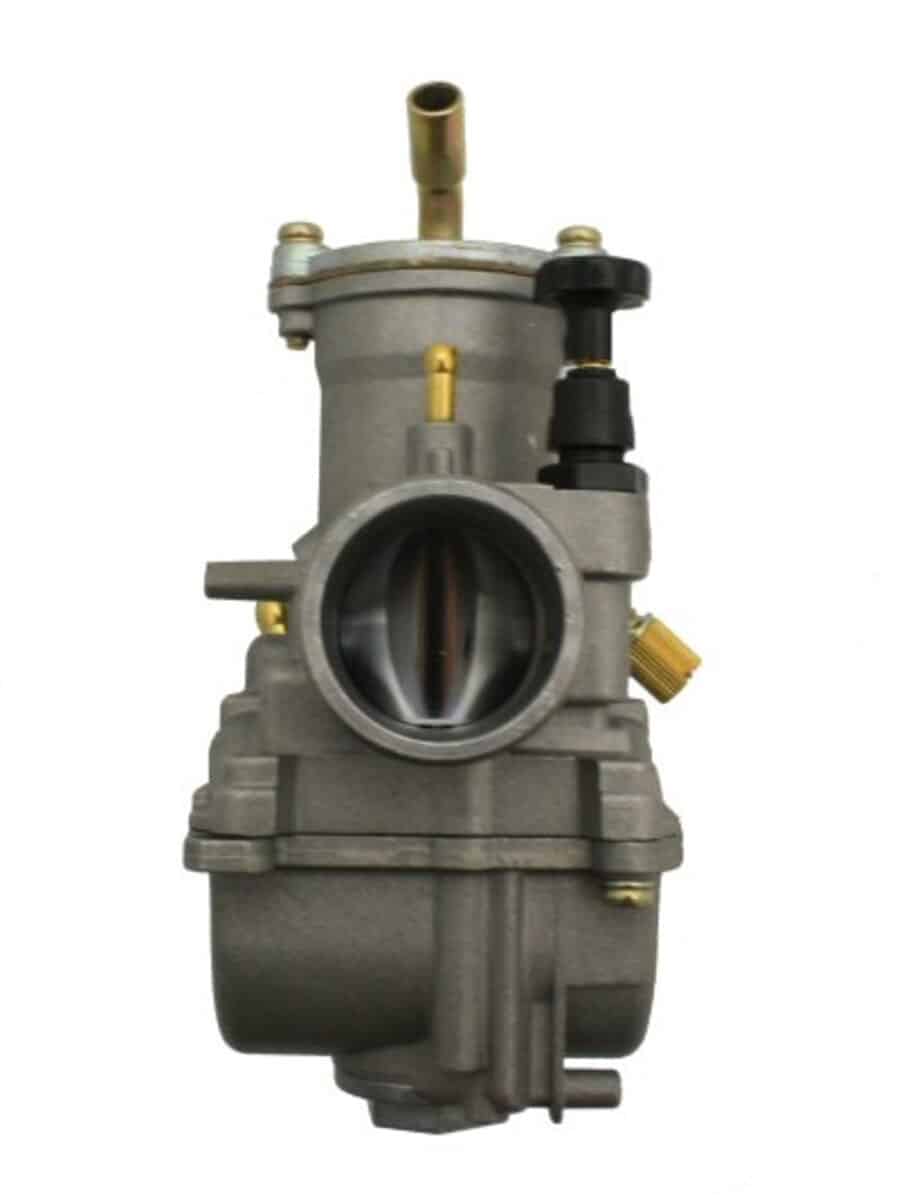

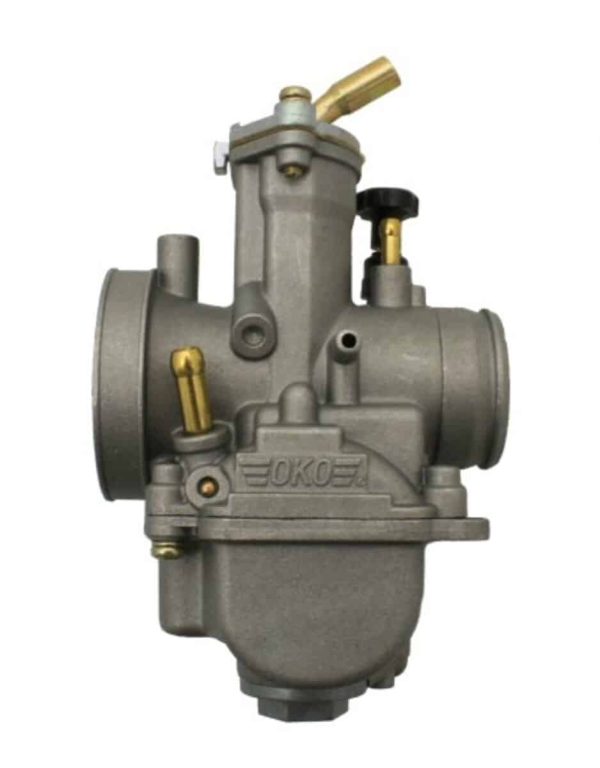

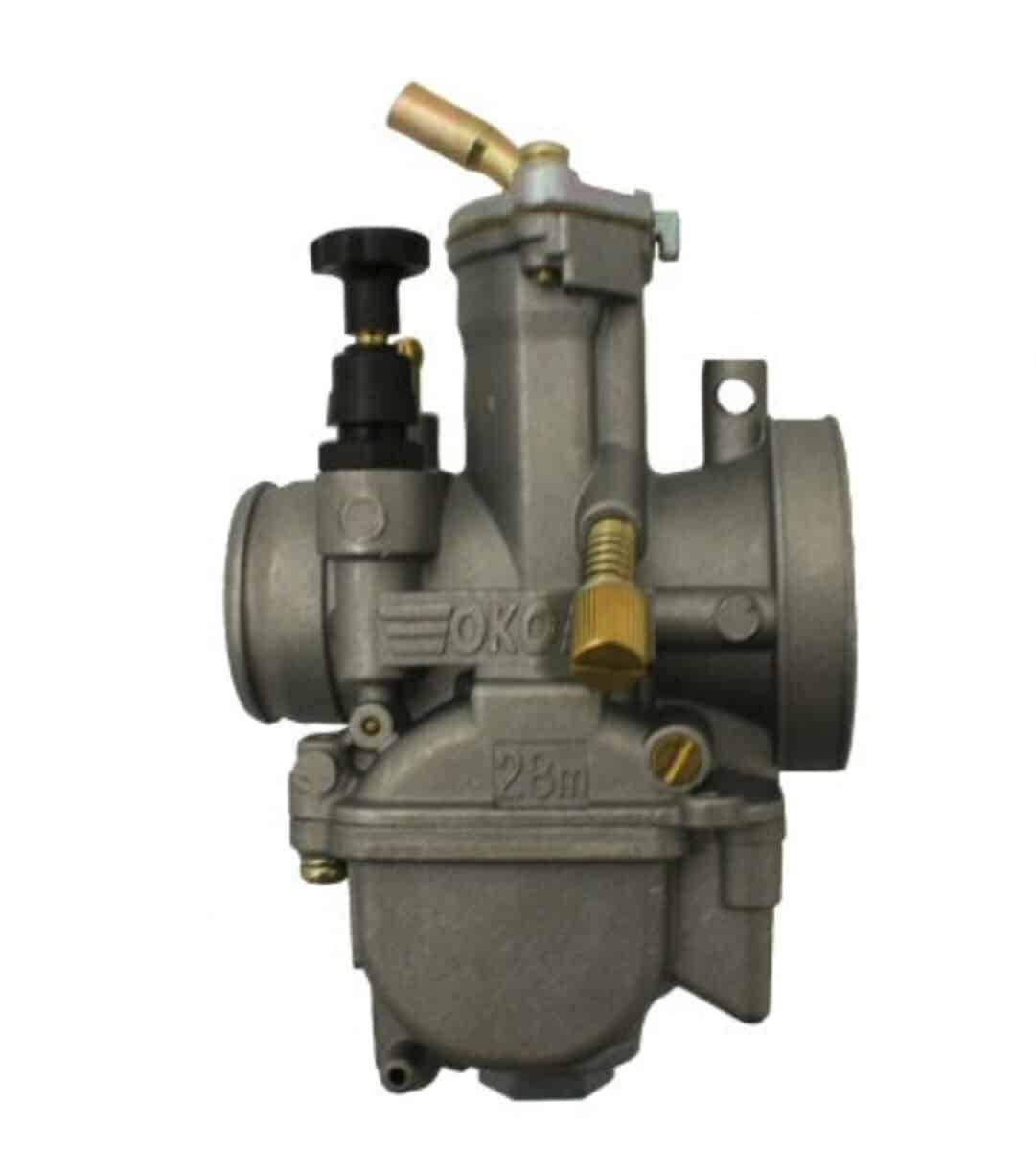

PWK OKO Carburetor with an Angled Top
Outer Diameter (intake): 34.5mm
Outer Diameter (air filter mount): 49.5mm Manual Choke

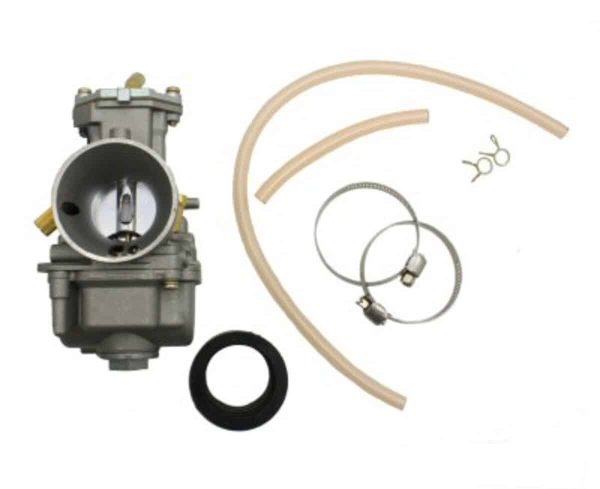

Includes Intake Manifold Boot & Clamps Please specify the size you need when ordering: these come in 26mm, 28mm, and 30mm venturi side opening
No Power Jet
Vacuum Fitting For Fuel Valve
SUPPORTED MODELS: 40QMB 50cc 2-stroke, Eton, GY6 QMI/QMJ 152/157, Peugeot, PGO, SYM, TGB, Various unlisted makes/models, Vento, Fits and compatible with Yamaha

Additional information

Weight 1.2 lbs
Dimensions 11 × 7 × 5 in
Brand

size

26 mm, 28 mm, 30 mm

SKU114-75
Country of OriginTaiwan
