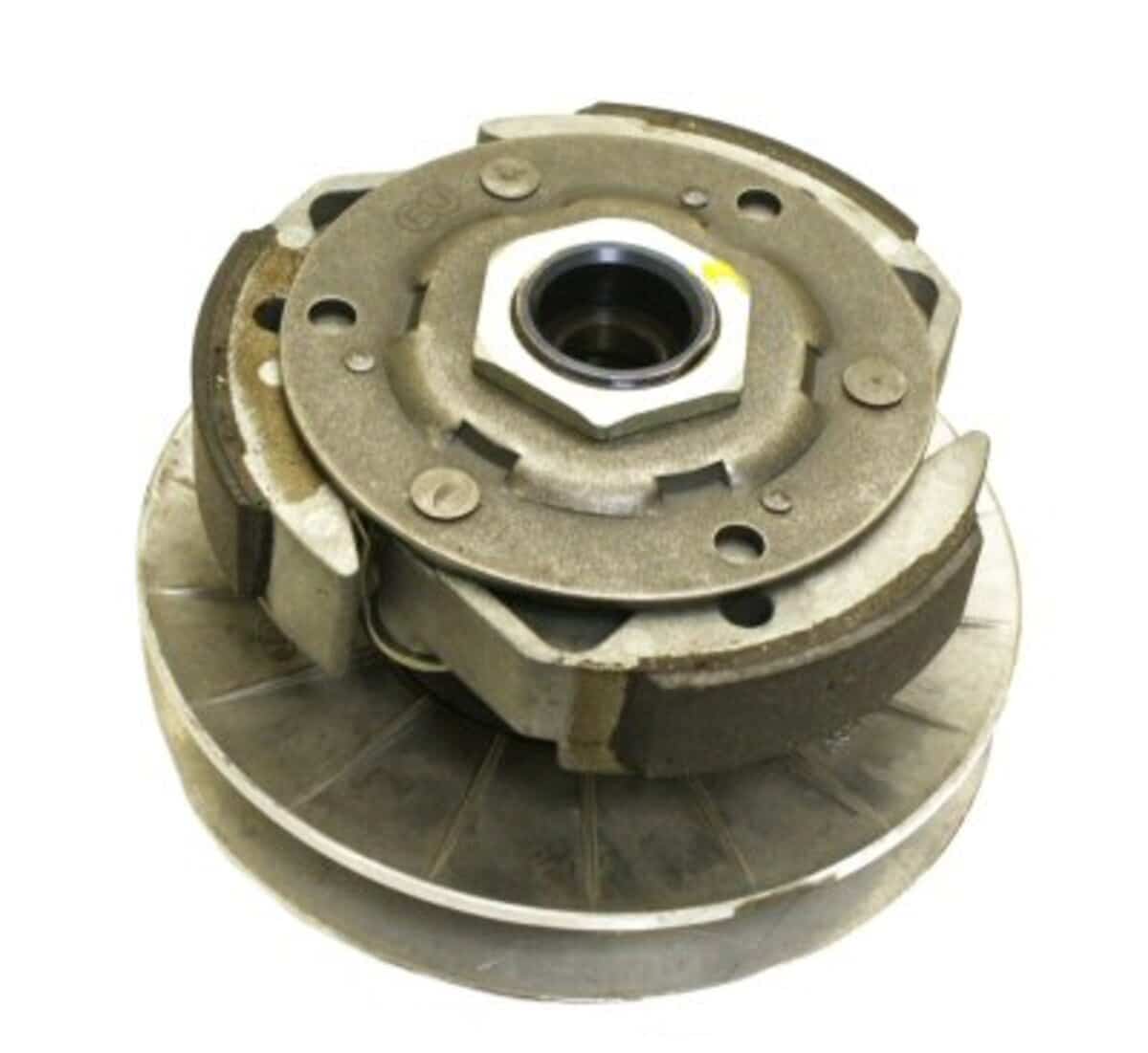

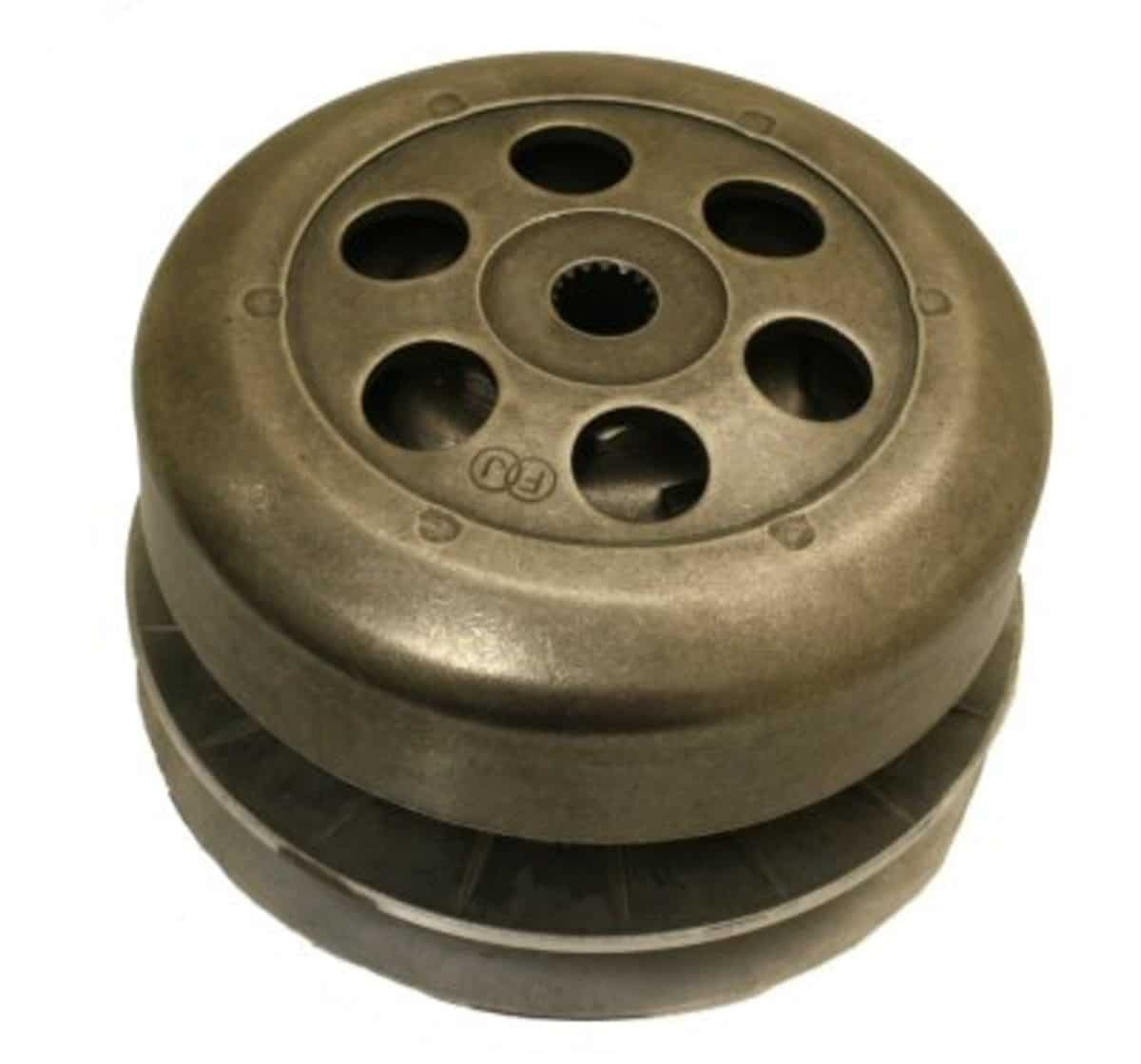

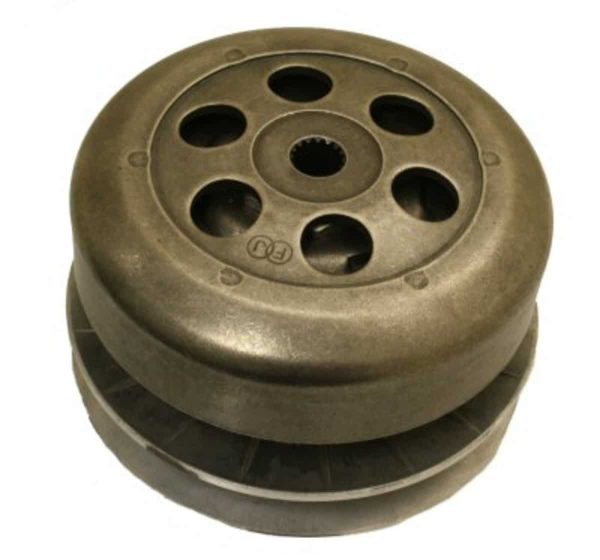

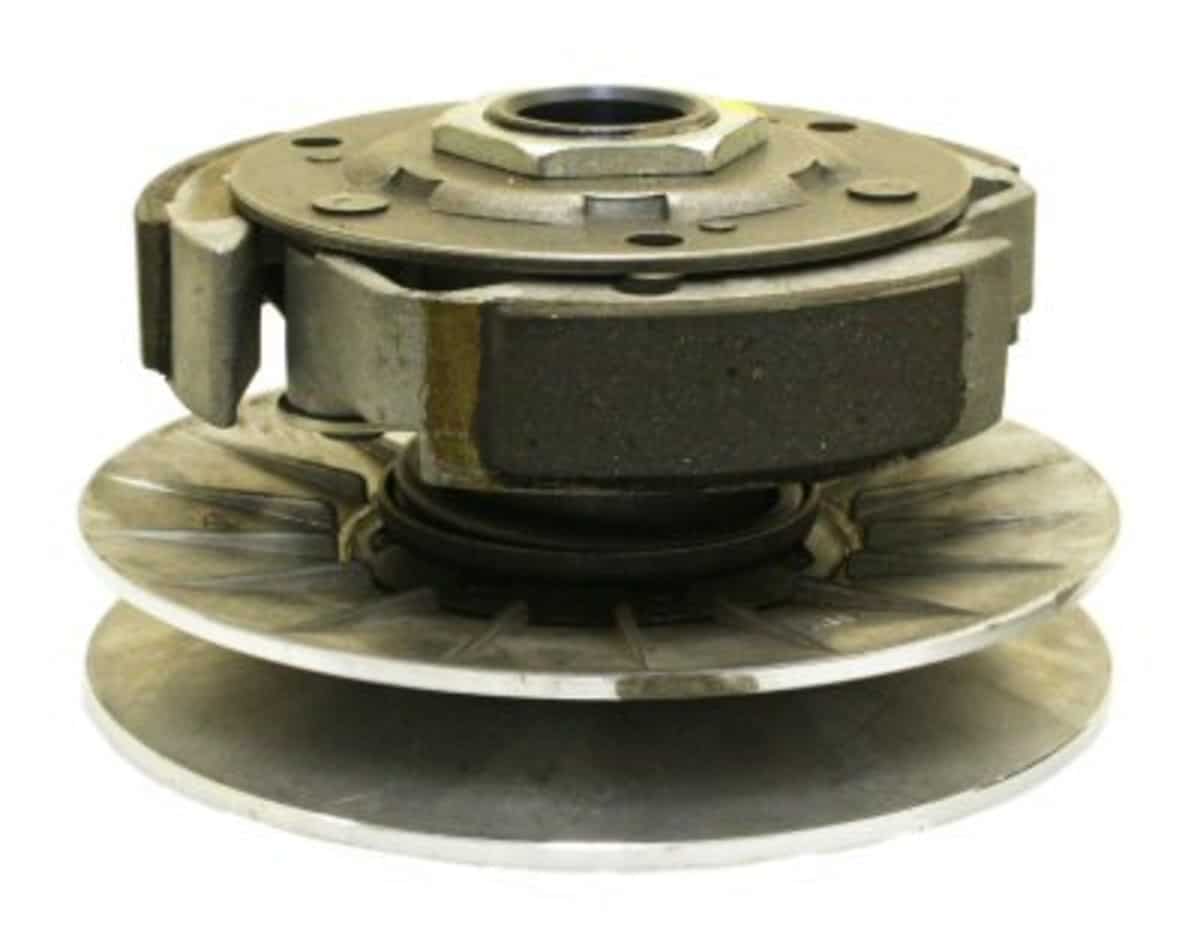

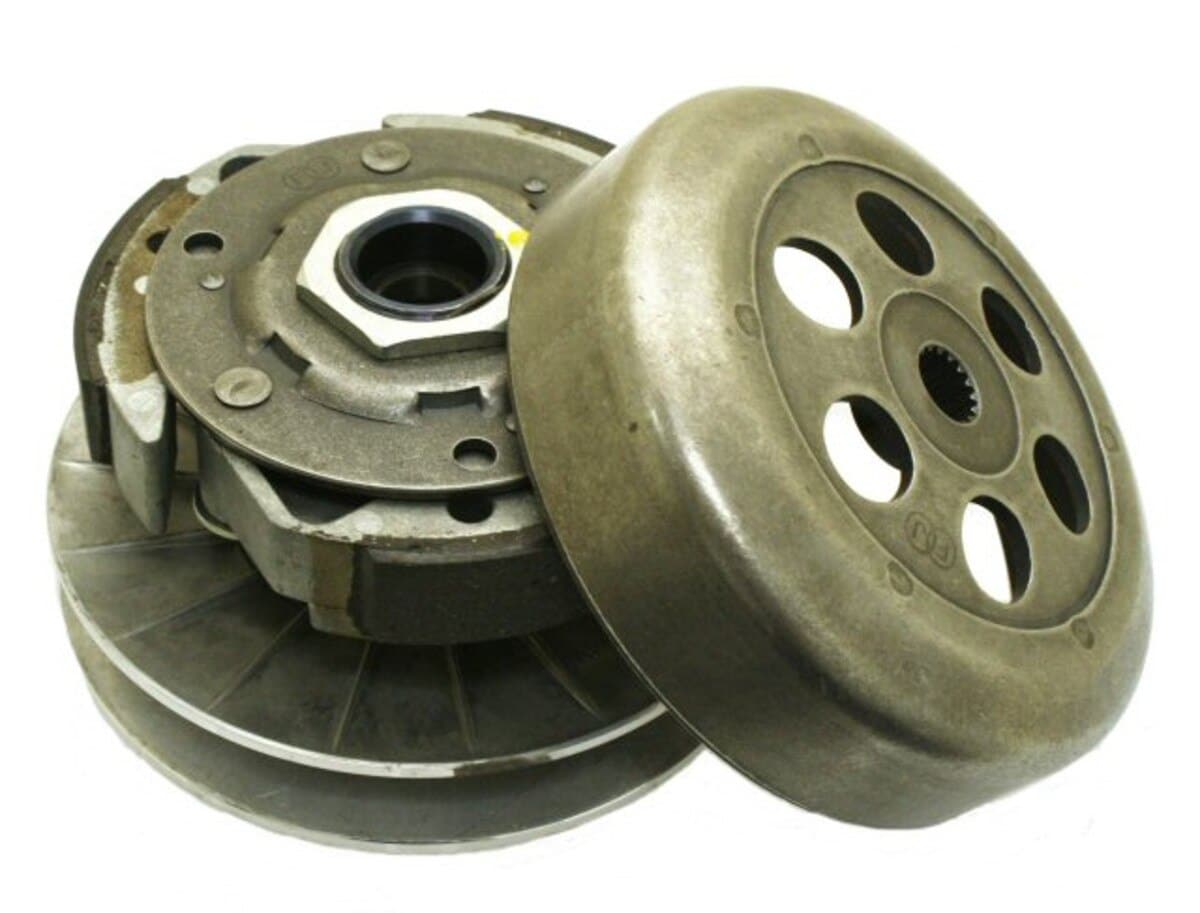

Universal Parts VOG 260 Clutch Assembly


Universal Parts VOG 260 Clutch Assembly

In stock

SKU: 122-2 Categories: ,

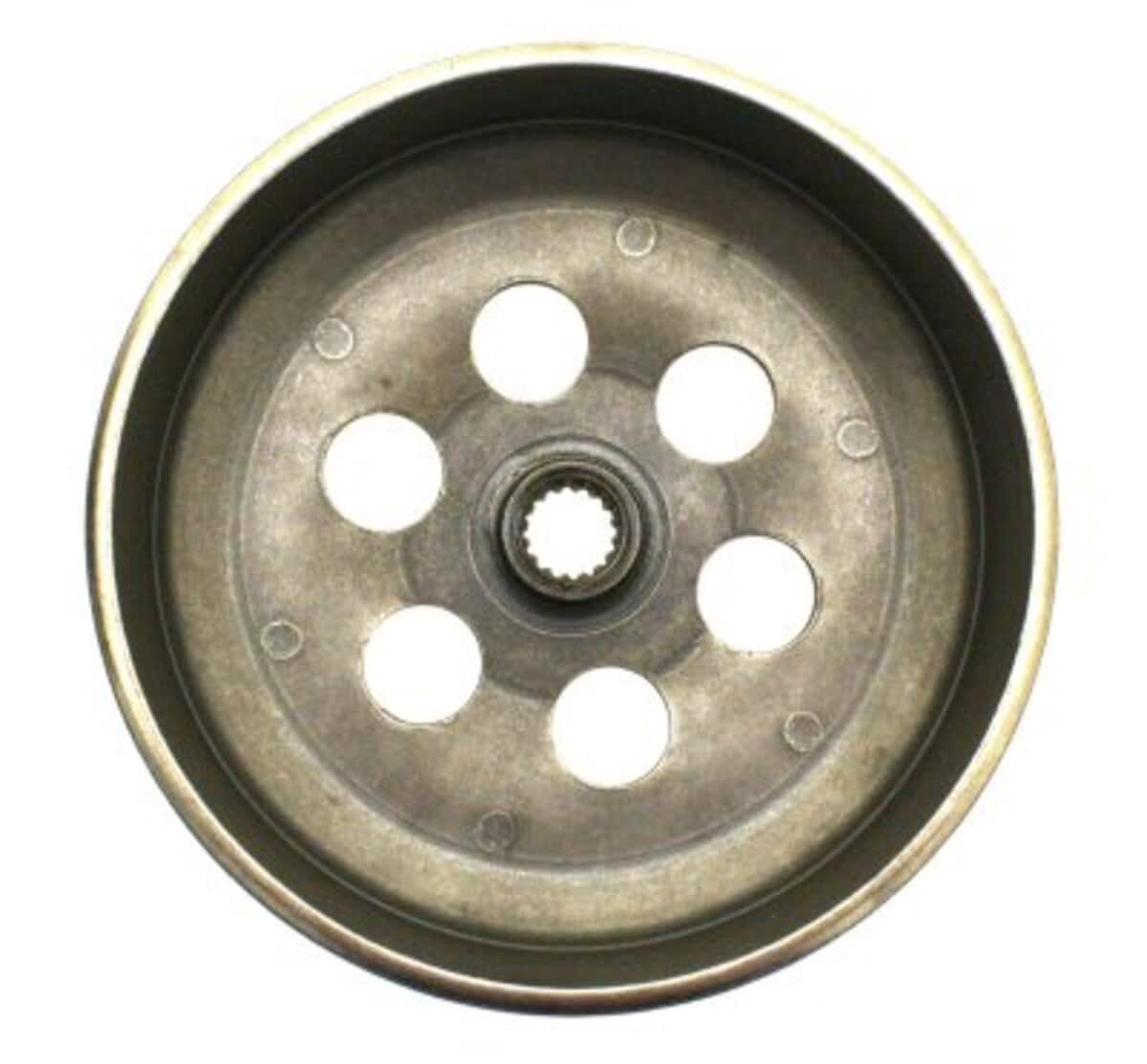

Universal Parts Clutch Assembly for the VOG 260 BN169MM Engine commonly found in Linhai 250/260/300 Scooters and many other makes and models. Some of the models and brands using this engine include the Aprilia Leonardo 250, Aprilia Leonardo 300, Benelli Velvet 250, Diamo Turista, Italjet Jupiter 250, JCL, VOG 260, Linhai Aeolus, Linhai ATV 260, Linhai Tank 260, Tank Touring 250DE, Malaguti Madison 250, Malaguti Password 250, MBK Kilibre 300, MBK Skyliner 250, Renault Kouranos 250, Roketa MC-54 250B, Xingyue VOG 260, fits Yamaha Majesty 250 (mod. 1999), fits Yamaha Majesty 250 and many more. Inner Diameter (Clutch Bell): 145mm Outer Diameter (Clutch Bell): 155mm Uses 6903RS Bearing Bearing Inner Diameter: 17mmPulley Outer Diameter: 164mmOverall Height: 96mmNumber of Splines: 16 Splined Inner Diameter (peak to peak): 15.2mmSplined Inner Diameter (valley to valley): 17.2mm

Additional information

Weight 9.5 lbs
Dimensions 8 × 8 × 5 in
